PMAC201-HW 12 Channel Branch Circuit Energy Meter

Name: PMAC201-HW 12 Channel Branch Circuit Energy Meter
Brand: Pilot
SKU: 103622001
Availability: InStock

Zhuhai Pilot Technology Co., Ltd.

PMAC201-HW 12 Channel Branch Circuit Energy Meter thumbnail-1

PMAC201-HW 12 Channel Branch Circuit Energy Meter photo-1

Negotiable MOQ: 8 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Pilot

Model Number:

PMAC201-HW

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Pilot

Model Number PMAC201-HW

Measuring Current Range 0~100A

Measuring Voltage Range 0~570V (L-L)

Accuracy Class 0.5

Operating Temperature -20℃~ +55 ℃

Dimensions 110 x 75 x 80.1mm

PMAC201-HW 12 Channel Branch Circuit Energy Meter

Specifications

PMAC201-HW Four Circuit Din-rail Power Meter
1.LED light for Pulse Output, Run and Communication
2.Din Rail Mounted

Feature

Used for 4 x 3 phase or 12x1 phase circuit AC measuring
Record Power-on & Power-off time and on/off record
Record SOE (event log) and modify setting event
Freeze data per 5 min. Total quantity is up to 20,000 (Max. one years data)
Provide 18~72V DC power supply
Support split core current transformer, rated input 6.67mA, CT primary up to 100A
LED light for Pulse Output, Run and Communication
Din Rail Mounted , provide MODBUS communication protocol

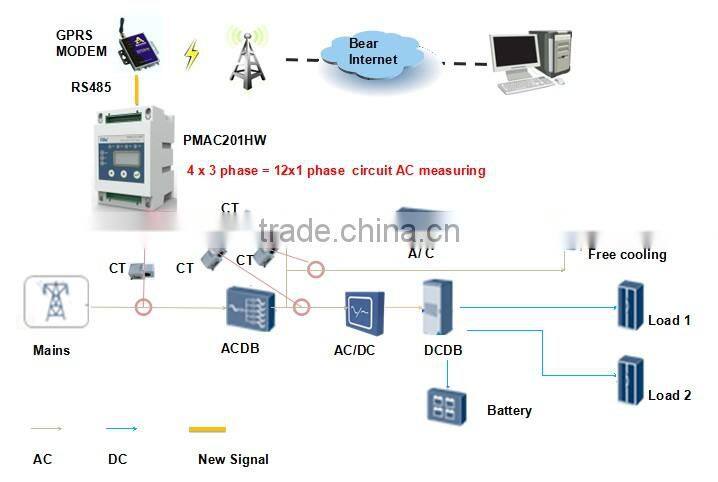

Typical Connection

&lt;img src="/img/pb/839/595/910/910595839_816.jpg" alt="PMAC201-HW Four Circuit Power Meter by Din-rail" ori-width="718" ori-height="482"&gt;

Technical Specification

Input	Rate current: 6.67 mA Frequency: 50/ 60Hz
Overload	120% of rated, continuously Instantaneous current: 10 times/ sec Instantaneous voltage: 2 times/ sec
Connection mode	3 phase 4 wires or 3 phase 3 wires
Power supply	18~72V DC
Power loss	≤5VA
Communication	RS485 serial, support Modbus-RTU Baud rate: 1200, 2400, 4800, 9600, 19200 bps Address: 1~247
Dimension (L x W x H)	110 x 75 x 80.1mm
Environment	Operating temperature: -20°C~ +55 °C Storage temperature: -40°C~ +70 °C Humidity: 5%~95% non-condensing Pressure: 70kPa~106kPa
Data refresh cycle	1 second
Memory	64M bit , Freeze data per 5 min

Parameter	Accuracy	Resolution	Measuring Range
Voltage	0.5%	0.01V	0~570V (L-L)
Current	0.5%	0.01A	0~100A
Active power	0.5%	1W	each phase: 0~150MW
Reactive power	1.0%	1var	each phase: 0~150MVar
Apparent power	1.0%	1VA	each phase: 0~150MW
Power factor	1.0%	0.001	-1.000~+1.000
Frequency	0.5%	0.01Hz	45~ 65 Hz
Active energy	1.0%	0.01kWh	0~ 99,999,999.9 kWh
Reactive energy	2.0%	0.01kvarh	0~ 99,999,999.9 kvarh

Standard (EMC)

Oscillatory waves immunity                                IEC 61000-4-12: 1995
Electrostatic discharge immunity test                 IEC 61000-4-2: 2001
Radiated immunity test                                       IEC 61000-4-3: 1998
Electrical fast transient/burst immunity test        IEC 61000-4-4: 1998
Surge immunity test (1, 2/50μs~8/20μs)           IEC 61000-4-5,Level 3
Damped oscillatory magnetic interference         IEC 61000-4-10: 1993
Frequency magnetic immunity                           IEC 61000-4-6: 2001
Supply voltage dips and voltage interruptions   IEC 870-2-1: 1995

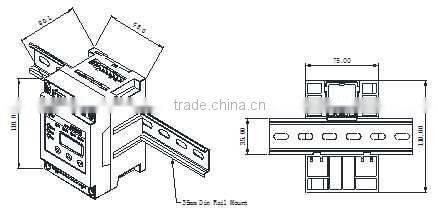

Dimension

Unit: mm

&lt;img src="/img/pb/965/632/910/910632965_457.jpg" alt="PMAC201-HW Four Circuit Power Meter by Din-rail" ori-width="438" ori-height="222"&gt;

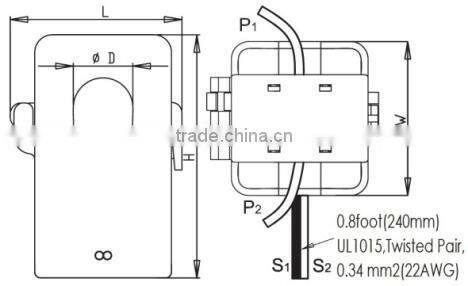

Current Transformer

&lt;img src="/img/pb/246/176/897/897176246_031.jpg" alt="PMAC201-HW Four Circuit Power Meter by Din-rail" ori-width="533" ori-height="361"&gt;&lt;img src="/img/pb/248/176/897/897176248_456.jpg" alt="PMAC201-HW Four Circuit Power Meter by Din-rail" ori-width="468" ori-height="286"&gt;

Rated input )	20A (100A
Rated output	16.67mA
Frequency	50Hz to 1K Hz
Accuracy	0.5%
Operation temperature	-15°C ~ +50°C
Humidity	5%~80% non-condensing
Dimension (L x H x W)	375238mm
Window opening (D)	17mm

&lt;img src="/img/pb/309/300/907/907300309_265.jpg" alt="PMAC201-HW Four Circuit Power Meter by Din-rail" width="492" height="676" ori-width="492" ori-height="676"&gt;&lt;img src="/img/pb/635/681/903/903681635_503.jpg" alt="PMAC201-HW Four Circuit Power Meter by Din-rail" width="474" height="658" ori-width="474" ori-height="658"&gt;
