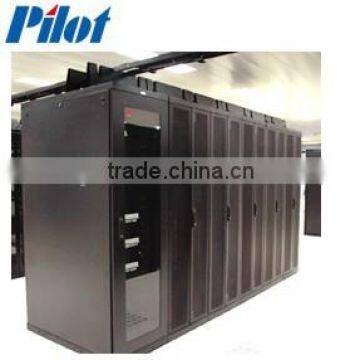

Intelligent Power Distribution Unit (IPDU for Data Center)

Intelligent Power Distribution Unit

PMAC Series iPDU for Datacenter

Standard Function

• Incoming circuit : 1 phase or 2 phase AC power
• Outgoing circuit : 21, 42, 63...168 Branch circuit
• 7’’ Color LCD Touch screen HMI
• Low-low and high-high current alarm and data log
• Installed Monitored SPD surge
• Support Modbus_RTU RS485 communication
• Support Woehner Hot-plug system for MCB
• Monitorting branch circuit ON/OFF status

Optional Function

• K-factor isolation Transformer (K13,K20)
• Static Transfer Switch (STS)
• Support customization

General

• Floor standing installation, suit for raised and non-raised floor environments
• HMI monitors branch circuit from 21 to 168
• Combine PILOT® BPCM for real time power monitoring, historical energy record
• PUE management
• Flexible & Reliable Power Distribution Centre

             - Key components from ABB, SIEMENS, Woehner etc.
             - Hot-plug system, easy maintanance
             - Independent wiring zone, monitoring zone

• Incoming and Outgoing Circuit Power Measuring

             - Incoming circuit : Voltage, Current, Active power, Reactive power, Power factor, Frequency, Active energy, Reactive energy, Demand, Max. Demand, THD (U & I), Leakage current (optional), Temperature (optional)

            - Outgoing circuit : Current, Active power, Reactive power, Power factor, Active energy, Reactive energy, Demand, Max. Demand, THD

• Alarm function

               - Incoming circuit : Alarm for Voltage, Current, Current unbalance
                 (Optional alarm for Leakage current, Temperature alarm)
              - Outgoing circuit : Alarm for current (lo-limit, lo-lo-limit, hi-limit, hi-hi-limit)

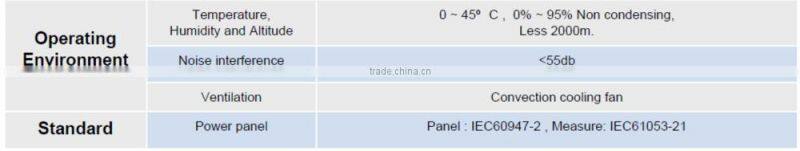

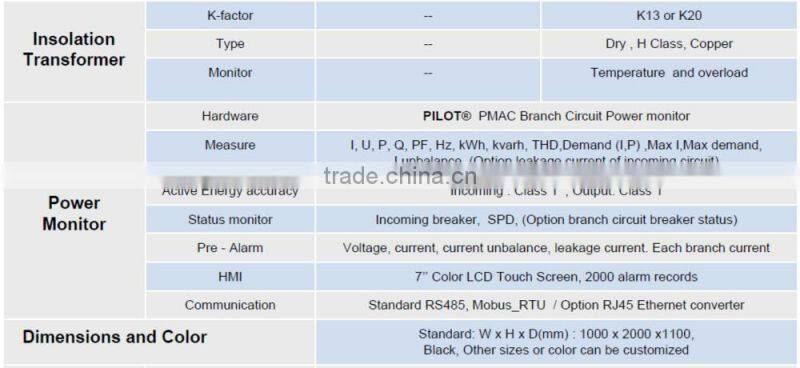

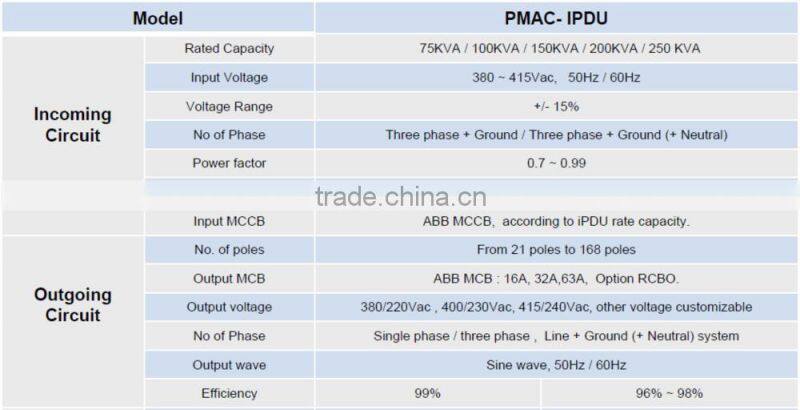

Technical Specification

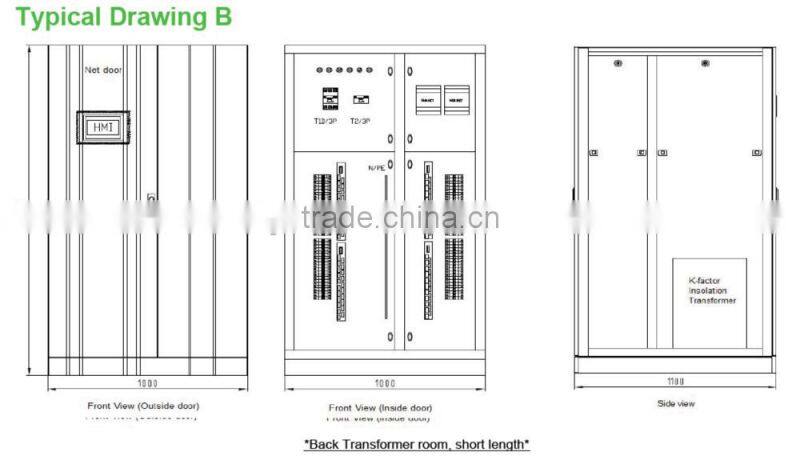

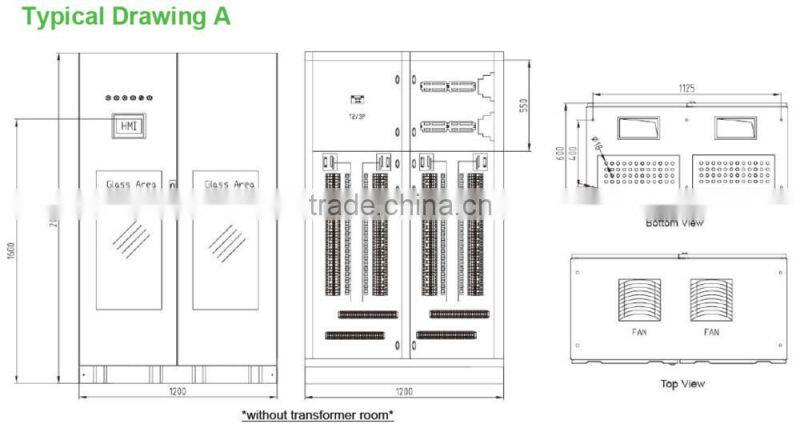

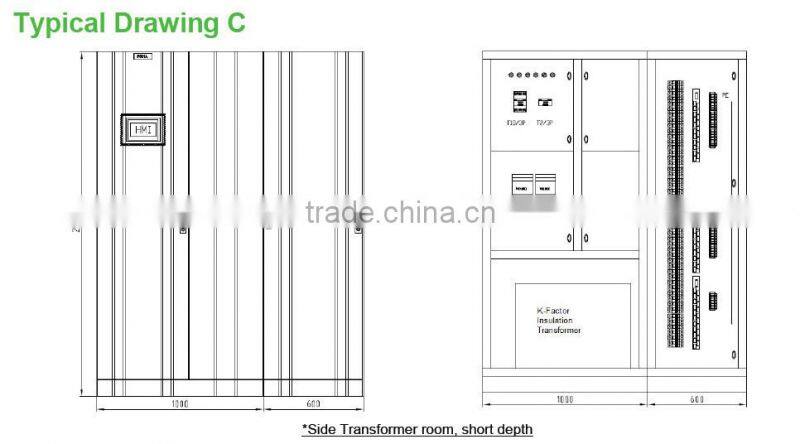

  Dimension

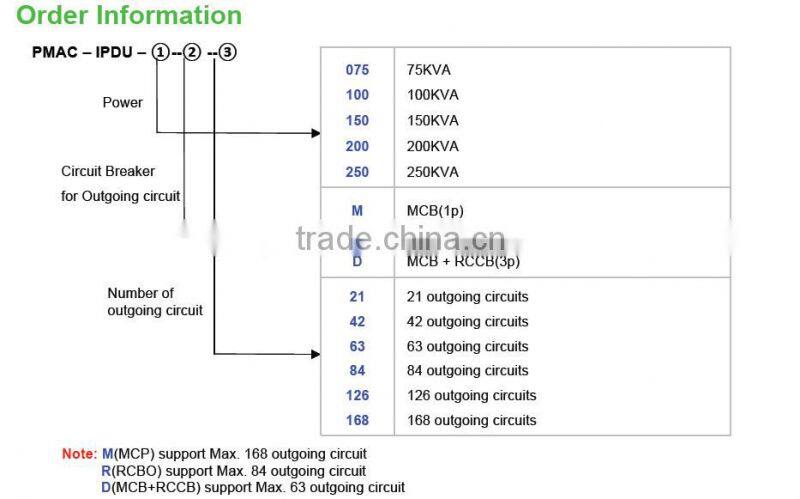

  Order Information

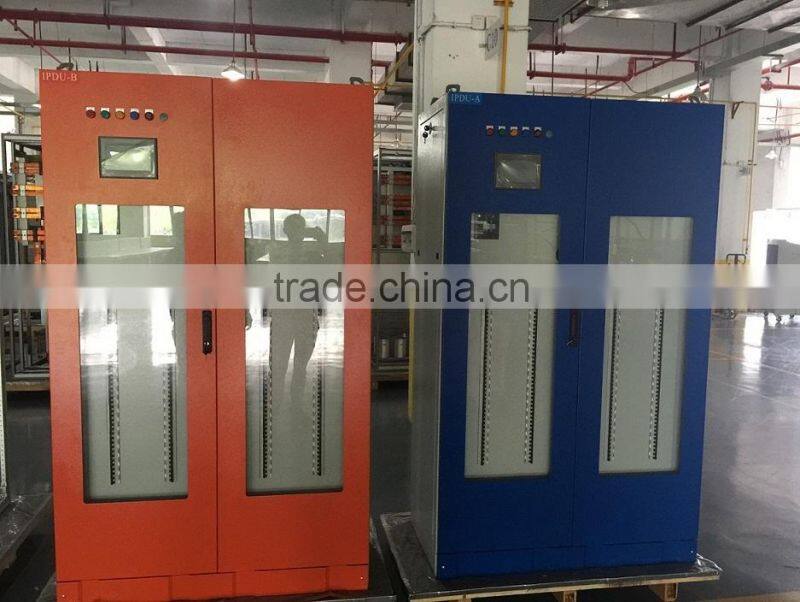

Photos

For more information, please feel free to contact us ~

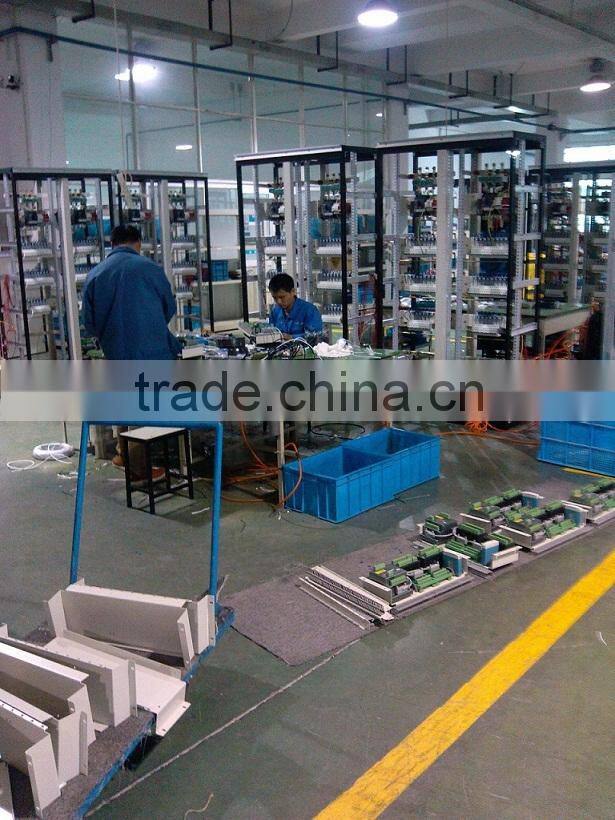

Some of Our Factory Certificates
