PILOT BMS Solar Battery Monitoring

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Port Zhuhai Port
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	PILOT
Model Number	VRLA	Phase	Other
Protection	Overcurrent	Weight	650g
Output Voltage	12V	Type	On-line
Application	Telecommunications

Product Description

PILOT BMS Solar Battery Monitoring

Product Description

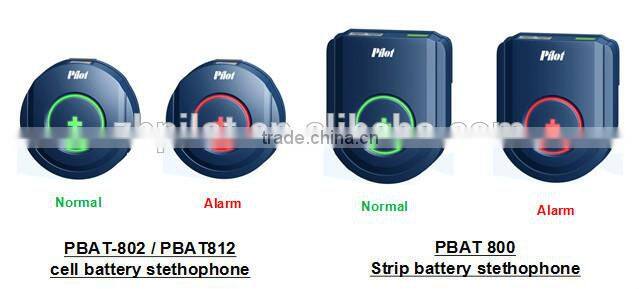

Battery Stethphone

PBAT-802 : 2 volt Battery Cell Stethophone
PBAT-812: 12 volt Battery Cell Stethophone
PBAT-800: Battery string Stethophone

Battery Monitor

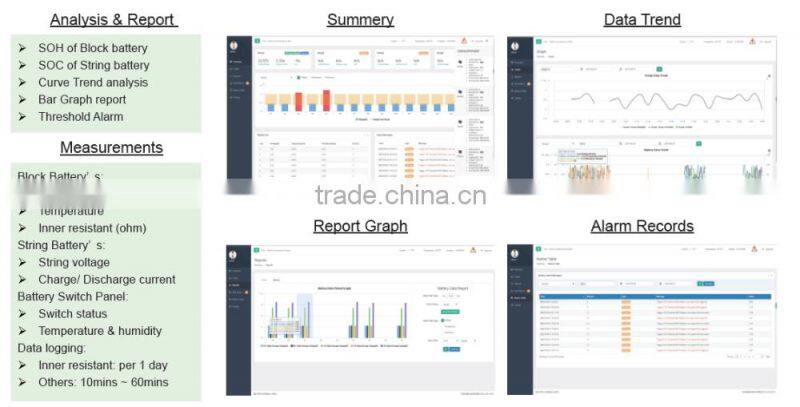

Monitoring and Records

Voltage,interal resistance, negative temperature of per block
Voltage, current of per string
Alarm of Battery's state of charge and state of health
Real time and History data records and curve analysis

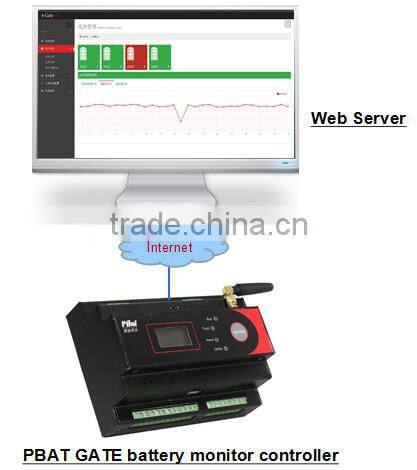

Gateway Web Server

PILOT Gateway

PBAT-GATE: Monitor Control gateway with Web view

PBAT GATE Function

Connect Max 250 unit PBAT cell stethophones
8GB TF card for 60 months monitor and data storage
Build in web server, display data by web view pages
Anaysis monitor curve and judge battery SOC & SOH
Battery switch status, humidity & temperature monitor
Transmit data & alarm to cloud server by TCP/IP
Email and GSM message as optional function

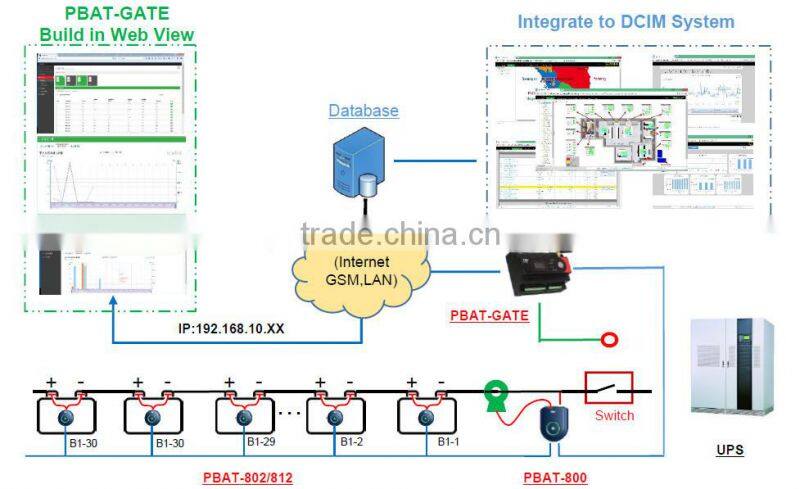

System Structure

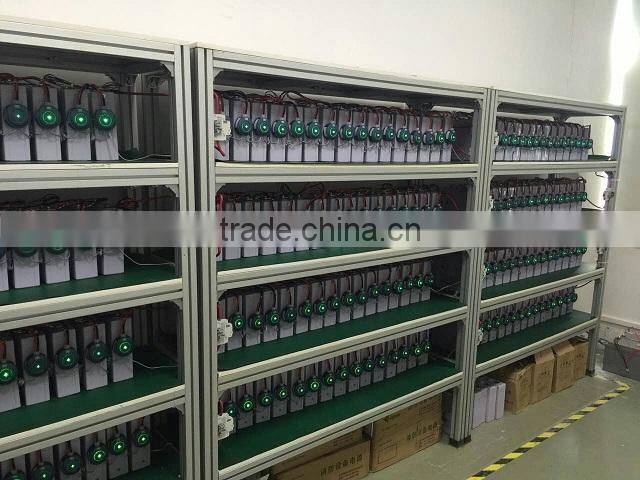

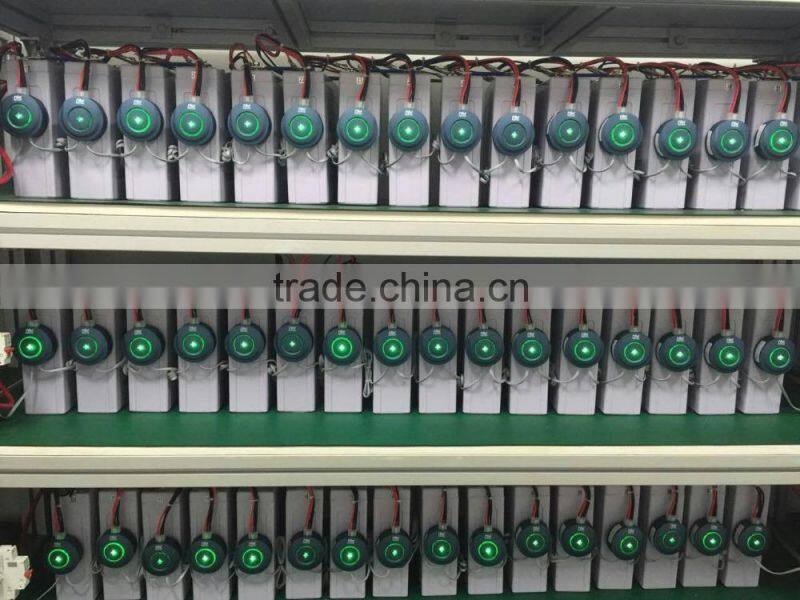

Application

Application

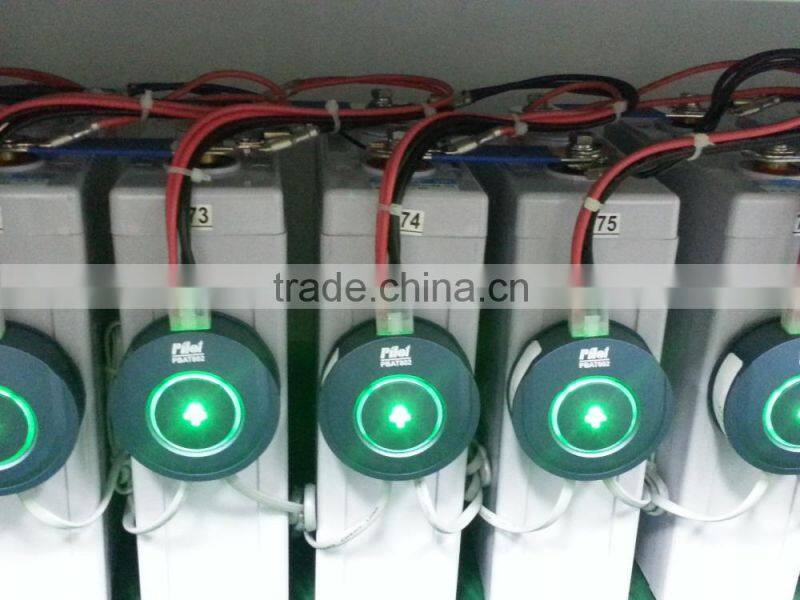

PBAT-802

Mornitoring Room

Monitoring Room

String Monitor PBAT-800

& PBAT GATE Monitoring Web Server

Solution

1. PMAC202 Branch Circuit Power Meter for Data Center

http://zhpilot.en.china.cn/product/1642420081-215314014/PMAC202_Multi_Channel_Energy_Meter_for_Data_Center_solution.html

2. IPDU for data center

http://zhpilot.en.china.cn/product/60147550994-215314014/IPDU_for_Data_Center.html

3. PMAC201HW 12 Channel energy meter for telecommunication base station

http://zhpilot.en.china.cn/product/1642431847-215314014/PMAC201HW_Modbus_12_channel_energy_meter.html

3. Telecommunication BTS EMS Monitor Box (GPRS)

http://zhpilot.en.china.cn/product/60280589609-215314014/PBTS_Telecom_BTS_EMS_Monitor_Box_GPRS_communication.html
