PILOT PMAC202 multiphase energy meter

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Port zhuhai port
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	PILOT
Model Number	PMAC201H	Measuring Current Range	0~200A
Measuring Voltage Range	220/ 380V	Accuracy Class	0.5
Operating Temperature	-10℃ ~ +55 ℃	Dimensions	123.6178.599mm

Product Description

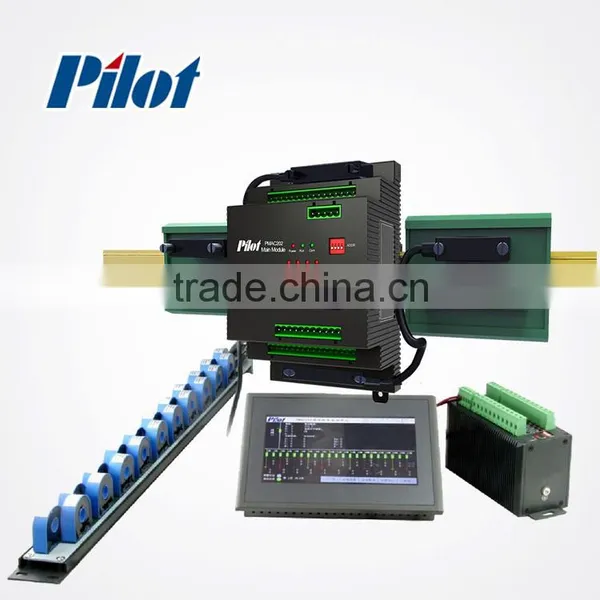

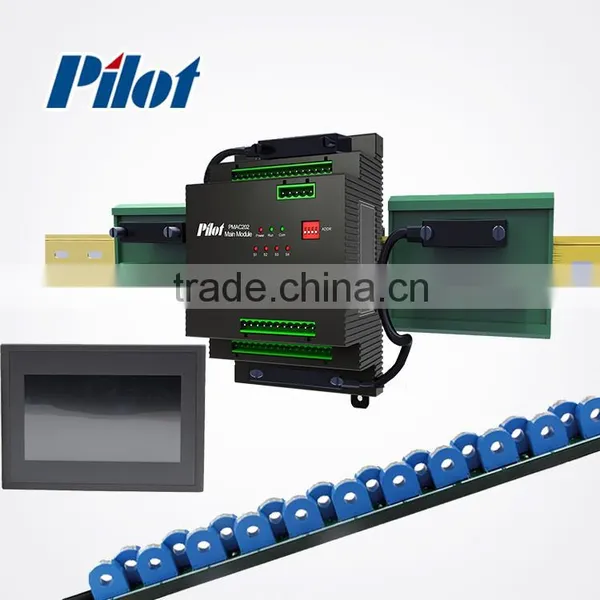

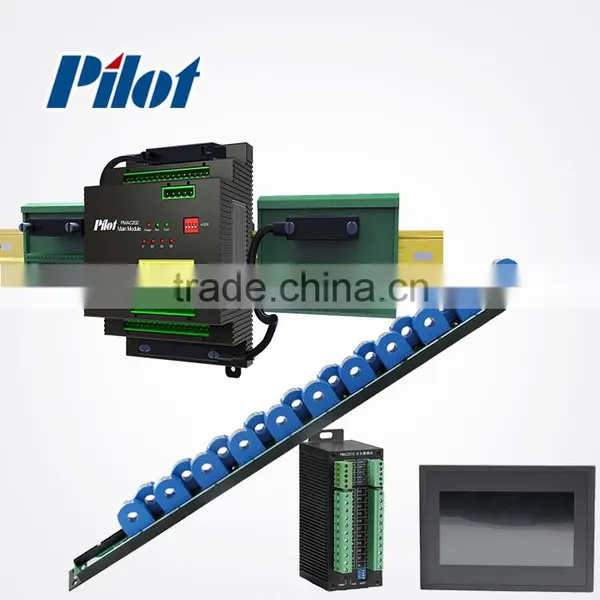

PILOT PMAC202 multiphase energy meter

Application

Load management

Data Center

Telecommunication

Data storage industry

Lighting Panels

Product Description

Main feature:

1. Measuring: 1 main circuit + 42 branch circuits
2. DI/DO: 4 status inputs (dry contact) , 2 relay outputs, 1 pulse output

3. Settable Pre-Alarm function:
Main circuit: Alarm for voltage, current, current unbalance (optional alarm for leakage current/ temperature alarm)
Branch circuit: Alarm for current (lo-lo-limit, lo-limit, hi-limit, hi-hi-limit)
4. Communication: RS485, support Modbus-RTU protocol
5. Phase sequence of branch circuit is programmable
6. Optional CT input for branch circuit: 50A, 100A, 200A
7. Settable wiring for branch circuit: Either single phase or 3 phase
8. Historical kWh record: kWh yearly consumption of last 10 years,
kWh monthly consumption of last 12 months
