Telecommunication Base Stataion Energy Management System
Application
Application
- PILOT PBTS especially for power monitor and energy consumption count in Telecom
Base Station - It install against power distribution board to measure multi power channel
- The measure result, alarm and energy records will storage in gateway module and send
by GPRS per day to Center control station - Support customized PEMS software in center control station for over 10k PBTS data
storage, analysis, energy billing and Demand report
Feature
Funtion
- 1nos Three phase MCCB monitor (Option)
- 12nos Single phase or 4nos Three phase MCB monitor
- Option Double channel DC power monitor
- Measure parameter : Voltage, Current, Power, kWh , kvarh, etc.
- Energy data freeze of : latest 12 days or last 12 months
- Power failure alarm of : Phase loss, power loss
- Set point alarm of : Over voltage, low voltage, over current
- Local LCD display for above information
- GPRS communication for alarm and data upload per day
Design

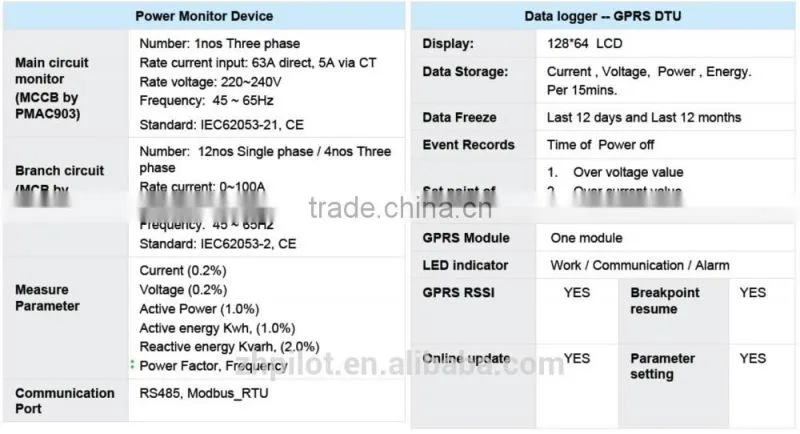

Technical Specification
Typical Connection
Order Information
Solution
1. PMAC903 three phase DIN Rail Energy Meter
http://zhpilot.en.china.cn/product/651092727-800909826/PMAC903_LCD_MODBUS_Three_Phase_Smart_Energy_Meter.html
2. PMAC201HW 12 Channel energy meter
http://zhpilot.en.china.cn/product/1642431847-215314014/PMAC201HW_Modbus_12_channel_energy_meter.html
3. PMAC202 Branch Circuit Power Meter for Data Center
http://zhpilot.en.china.cn/product/1642420081-215314014/PMAC202_Multi_Channel_Energy_Meter_for_Data_Center_solution.html
