VRLA Battery health Monitoring System

VRLA  Battery health Monitoring System

Battery Stethphone

• PBAT-802 : 2 volt Battery Cell Stethophone
• PBAT-812: 12 volt Battery Cell Stethophone
• PBAT-800: Battery string Stethophone

Pilot Gateway

• PBAT-GATE: Monitor Control gateway with Web view

Monitoring and Records

• Voltage,interal resistance, negative temperature of per cell
• Voltage, current of per string
• Alarm of Battery SOC and SOH
• Real time and History data records and curve

PBAT GATE Function

•  Connect Max 250 cell stethophone
•  1GB for monitor data Storage
•  Build in web server, display data by web view pages
•  Judge battery SOC & SOH , and drive the stethophone alarm
•  Transmit data & alarm to PC server by Modbus TCP
•  E-mail and GSM message as option
•  DI, DO, AO port for switch status monitor and alarm output

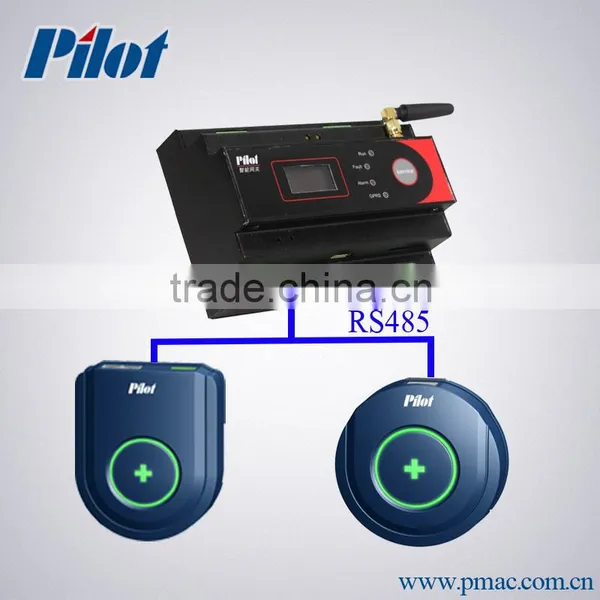

System Structure
