PILOT PMAC201HW Branch Circuit Power Meter

PILOT PMAC201-HW  Branch Circuit Power Meter

Features

Features

1. Suit for voltage under 330V (L-N)/570V(L-L) (direct)

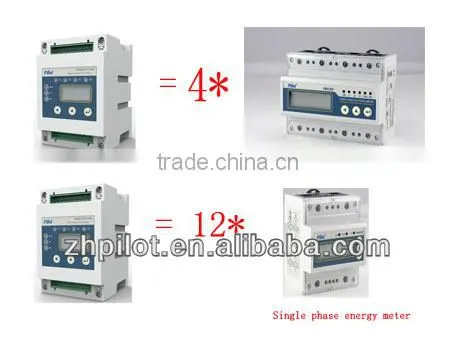

2. Used for 4*3 phase or 12*1 phase circuit AC measuring

3. Auto-distinguish mix connection of three phase and single phase

4. different circuit can be set to different current

5. Ture-RMS measuring parameter for U, I, P, Q, S, PF, F, kWh(Imp. & Exp.), kvarh (Imp. & Exp.), Demand, Max./Min. value (P)

6.  TOU, 4 tariffs, 8 time period in 24 hours

7.  Memory data per 15 min., Max. Memory 40days data

8.  Record SOE (Event log) and modify setting event

9.  Support 100mA rated current input, CT primary up to 5000A

10. LED light for pulse output, Run and communication

11. Din Rail Mounted, Provide MODBUS communication protocol.

Technical specification

Testing software

Dimension

Standard Current transformer

1. In Telecommunication base

2. In Smart Building system

3. BTS Monitor BOX

PMAC202 42 Channel Energy Meter (BCPM)

http://zhpilot.en.china.cn/product/1642420081-215314014/PMAC202_Multi_Channel_Energy_Meter_for_Data_Center_solution.html

Intelligent PDU

http://zhpilot.en.china.cn/product/60147550994-215314014/IPDU_for_Data_Center.html

SPM93 three phase energy meter

http://zhpilot.en.china.cn/product/60124192599-800909826/SPM93_Modbus_Data_Record_Three_phase_energy_meter.html

 SPM91 single phase energy meter

http://zhpilot.en.china.cn/product/60126199720-50323645/SPM91_modbus_single_phase_smart_energy_meter.html

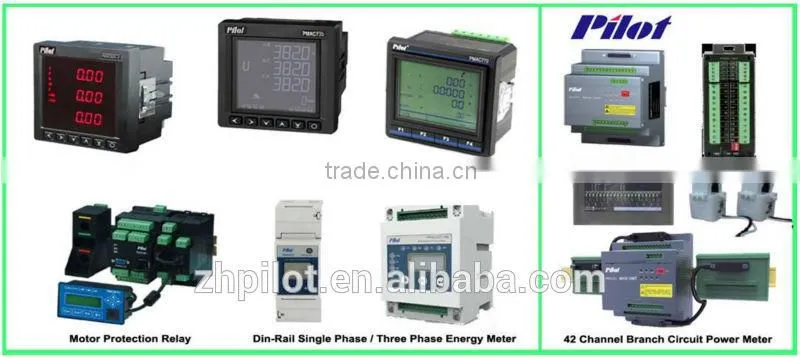

Products range:
