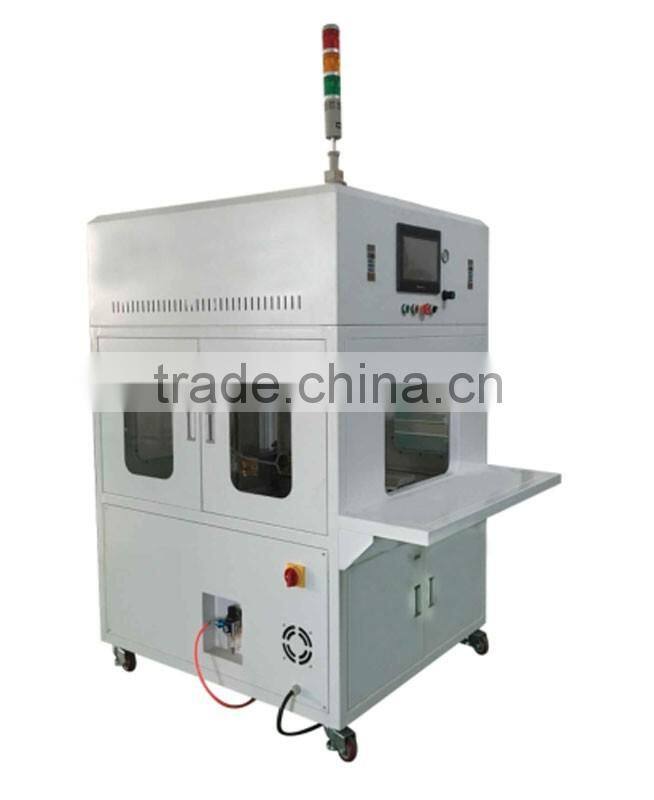

Automatic Spot Welding Machine for Cylinder/18650/26650/LiFePO4 Batteries TWSL-700

Automatic Spot Welding Machine for cylinder/18650/26650/LiFePO4 Batteries TWSL-700 is Battery pack production,tool battery welding Usage car battery making machine car&electric motor cycle battery making machine/equipment of  spot welding machine,use as 18650/26650 power battery pack auto CNC spot welding/battery cell spot welder/battery tab spot welder/automotive spot welders/car battery production line/car power pack making machine/car battery assembly line/car battery assembly line/car batteries factory.car power battery making machine

1.For 18650/26650 battery. Mobile power and other standardized production.

2.Simple operating system, 7.5-inch color touch screen, user-friendly design, easy to understand.

3.Control system: PLC programming control, with fault alarm system.

4.Cooling device comes with solder pin and prolong life.

5.X-axis and Y-axis ball screw design, the stepper motor driven.

Technical Parameters:

model: TWSL-700

Power supply : 220V,50HZ  3.6Kw

Use pressure : 0.3-0.8Mpa

X Module travel : 0-350MM maximum 18 cores

Y Module travel : 0-135MM maximum 7 core

X-axis emission number of batteries : 18PCS within

Y-axis discharge batteries Number : Within 7 lines

Dimensions: L1450* W1000 * H1700mm

Packing size L1530*W1080*H1920mm

Machine weight : 200KG

Total packed weight:230KG

Productivity: 6 and 16 string, 5 and 16 strings, strings 4 and 16, 3 and 16 series, about 2000 batteries / hour

Welding parameters:

model: TWSL-200

power: 10KVA (max)

Input Frequency: 50/60Hz

Input voltage: 220VAC

Input gas source: 7-8 Bar (kg / cm)

Primary current: 5-30A

Primary short-circuit current: 1500A

The whole structure: Integrated structure

Welding arm structure: Telescopic swing control

Electrodes to the body distance: 100 mm (Scalable adjustable)

Cylinder diameter: 20 mm

The number of pulses :  0-9

Pulse energy level: 0-99

Automatic compensation range: + 40V - 40V

Panel digital display: 7-segment LED display

External dimensions : 445 * 224 * 343 mm

Gross weight : 42 kg

1 , What is the product ?

It is an automating welding machine for 18650 ,26650 battery , use for 18650 26650  welding .

2 , how is it performance ?

It is automating , more effectioncy , it can replace 10-15 staffs works ,it can help you increase production run ,

and decrease production cost .

3 , what about the quality guarantee and after-sale service ?

we provide one year quality guarantee , full time after-sale service .

4 , we want to open an automating system for lithium battery , how it can do that ?

Yes , we can provide you the battery automating system and solution .
