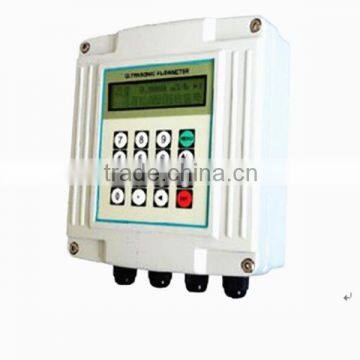

Wall Mounted Ultrasonic Flow meter TUF-2000SW

Specifications

1.High Accuracy measuring.
2.Wide measuring range.
3.High Reliability.

      TMTeck Manufacturing LTD. (hereafter “TMTeck”) is a leading NDT manufacturers and suppliers in Beijing China and provides innovative technologies and comprehensive know-how to benefit customers in a lot of countries around the world.Till now,TMTeck has been active in the areas of technology-driven inspection solutions that deliver productivity, quality and safety.

      Began from the Ultrasonic Flaw Detector and Coating Thickness Gauge ,now TMTeck has developed more than 10 series of testing instruments, including Ultrasonic Flaw Detector, Coating Thickness Gauge,Hardness Testers,Ultrasonic Thickness Gauge ,their accessories and other NDT instruments. These products are widely used in the analysis of materials that enable our customers to monitor, control and validate their critical processes and applications,also our goods has CE certificates.



[ Feature ]



High Accuracy measuring

Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ±1%

Wide measuring range

Several types transducer for selection, measuring pipe size from DN15mm to DN6000mm

High Reliability

Adopt low voltage, multi-pulse technology to improve accuracy, useful life and reliability.

Strong Anti-interference

Dual-balance signal differential receiver/driver circuit to avoid interference of converter, TV tower, high voltage line etc.

Powerful Recording Function



Automatically record the following data:

1. The totalizer data of the last 512 days/128 months/10 years.

2. The time and corresponding flow rate of the last 64 times of power on and off events.

3. The working status of the last 32 days.



[ Main Feature ]

Item	Performance and Parameter
Main Unit	Principle	transit-time ultrasonic flowmeter
	Accuracy	1%
	Display	2 line x 20 character LCD with backlight
	Operation	Support 16 key light touch keyboard and the Simulation keyboard software
	Signal Output	Isolation RS-485 output; 1 channel isolation OCT output; 1 channel isolation 4-20mA output (two-wire system)
	Signal Input	Three channel 4—20Am analog signal input
	Data interface	Insulate RS485 serial interface, upgrade the flew meter software by computer, support the MODBUS, METER-BUS etc.
Pipe Condition	Pipe Material	Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed.
	Pipe Diameter	15---6000mm
	Straight length pipe	Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump.
Measuring Medium	Type of Liquid	Water (hot water, chilled water, city water, sea water, waste water, etc.); Sewage with small particle content; Oil (crude oil, lubricating oil, diesel oil, fuel oil, etc.); Chemicals (alcohol, acids, etc.); Plant effluent; Beverage, liquid food; Ultra-pure liquids; Solvents and other liquids
	Temperature	Standard Transducer: -30--90°C; High-temperature transducer: -30--140°C
	Turbidity	10000ppm and less than bubble
	Flow rate	0--±30 m/s
	Flow Direction	Measuring two (plus-minis) direction of flow rate
Working Environment	Temperature	Main Unit: -20--60°C
		Flow transducer: -40--160°C;
	Humidity	Main Unit: 85% RH
Power Supply	DC24V /AC85-264V
