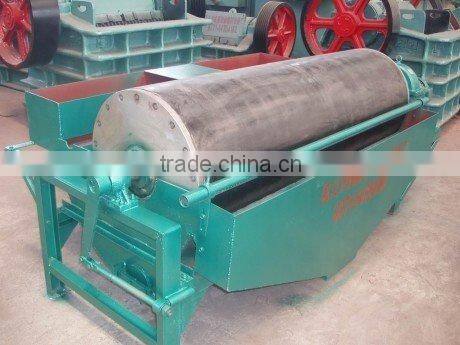

Hot Sale Magnetite Calcined Ore Ilmenite Wet Magnetic Separator

FOB Price

USD $1,000 - $33,333 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao;Tianjin;Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Magnetic Separator
Place of Origin	Henan, China	Brand Name	HC
Model Number	CTB Series	Warranty	1 year

Product Description

Specifications

Hot sale wet magnet separator
1.remove the ferrous powder
2.high efficiency
3.improve the quality of the final pruduct.

Hot Sale Magnetite Calcined Ore Ilmenite Wet Magnetic Separator

1. Hot Sale Magnetite Calcined Ore Ilmenite Wet Magnetic Separator application

The wet magnet separator in our factory applies to the strong magnetic minerals with the particle size of less than 3mm, such as the magnetites , calcined ore, ilmenite ore, etc. In addition, it is also widely used for iron removal operation in coal, non-ferrous metal and building material industry. Our factory can supply different magnetic force grade seperator in the form of downstream, semicounter current, counter current. It owns the features of simple structure, large capacity, easy operation and maintenance, etc.

2. Hot Sale Magnetite Calcined Ore Ilmenite Wet Magnetic Separator technical parameter

Model	Magnetic Strength (mT)	Input Size (mm)	Cylinder Speed (r/min)	Power (kw)	Capacity		Weight (kg)
Model	Magnetic Strength (mT)	Input Size (mm)	Cylinder Speed (r/min)	Power (kw)	Ore (t/h)	Slurry(m3/h)	Weight (kg)
CTB600x900	≥120	≤1	40	1.1	8-15	24	850
CTB600×1200	≥120	≤1	40	1.5	10-20	32	1000
CTB600×1800	≥120	≤1	40	2.2	15-30	48	1300
CTB750×1200	≥120	≤1	35	2.2	15-30	48	1500
CTB750×1800	≥120	≤1	35	3.0	20-45	72	1800
CTB900×1800	≥135	≤1	28	4.0	25-55	90	2400
CTB900×2100	≥135	≤1	28	4.0	30-65	100	2650
CTB1050×1800	≥145	≤1	22	5.5	35-70	110	3800
CTB1050×2100	≥145	≤1	22	5.5	45-88	140	4150
CTB1050×2400	≥145	≤1	22	5.5	45-88	140	4500
CTB1200×2100	≥145	≤1	19	7.5	62-110	160	5800
CTB1200×2400	≥145	≤1	19	7.5	82-120	192	6200
CTB1200×3000	≥145	≤1	19	7.5	80-150	240	6800
CTB1500×3000	≥145	≤1	14	11	90-170	270	8200
CTB1500×4000	≥145	≤1	14	11	115-220	350	9000

The technical parameters above are just for your reference. If there is any change, all parameters and overall dimension are subject to operating instructions. Any questions please feel free to contact us.
