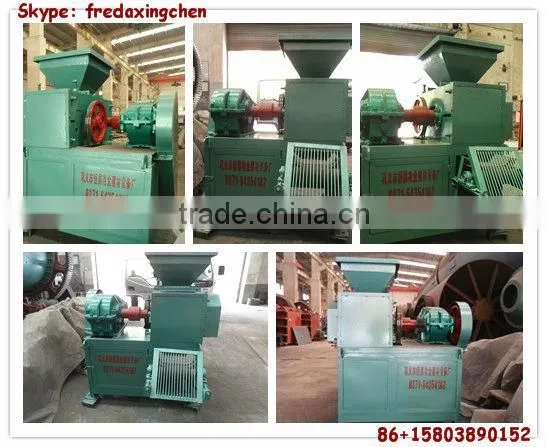

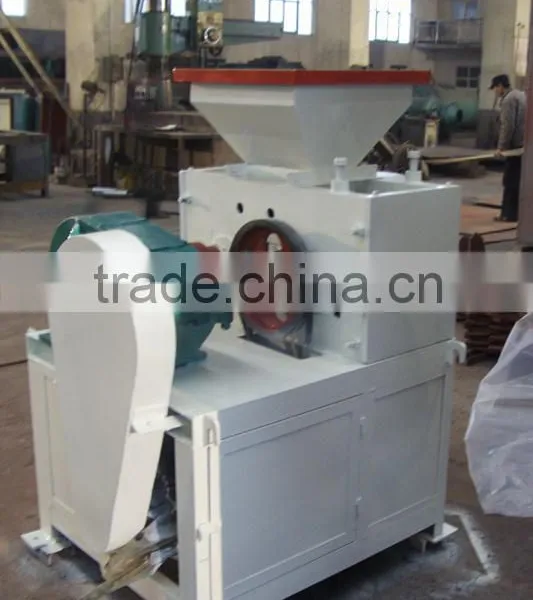

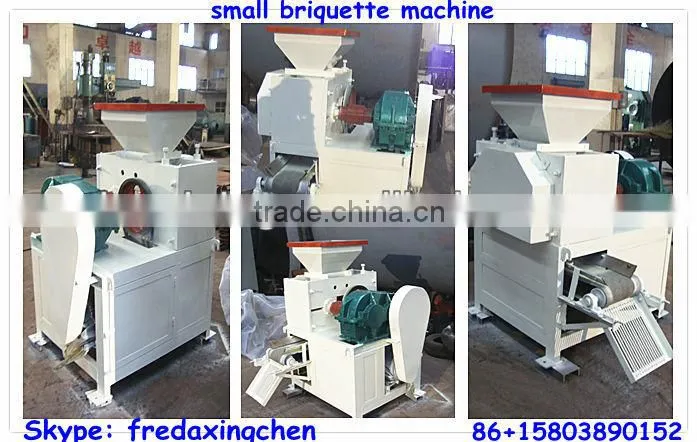

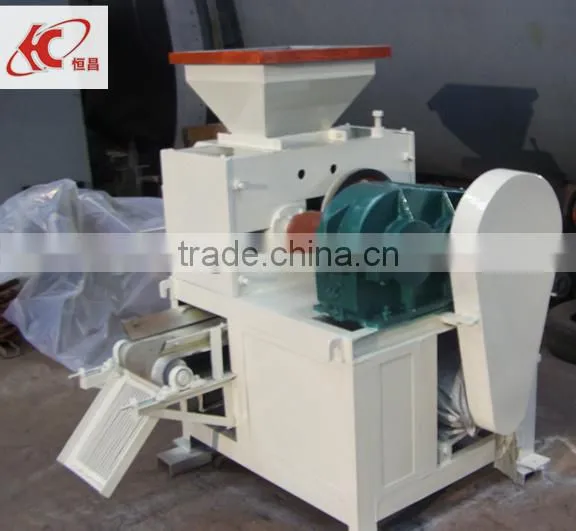

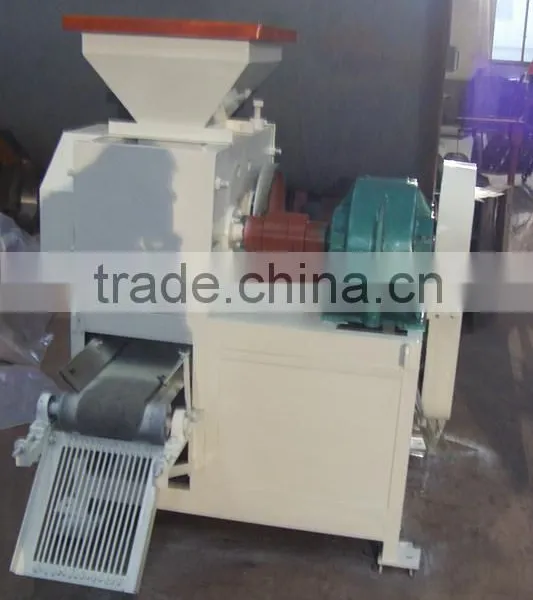

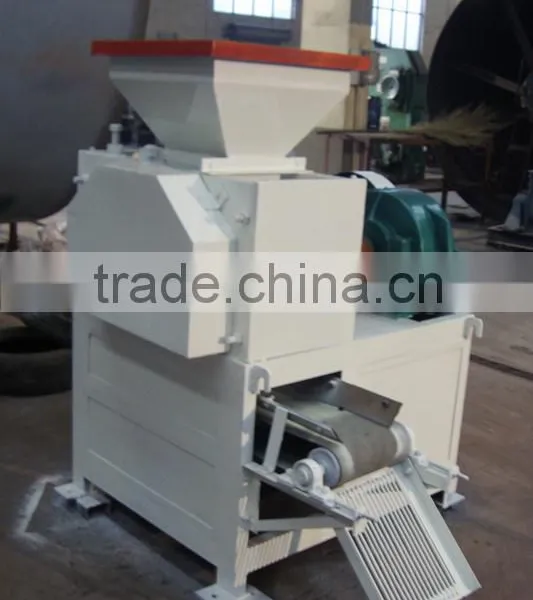

Small four roller 1-2t/h YQJ 290 briquette machine
Four-roller twice pressure briquette machine is suitable for civil and industrial coal production. It features in excellent technical performance, compact structure, reasonable assembly process, special alloy rollers, and long life-span. In addition, it also solves the troubles of low molding pressure and low strength problem in coal briquette production, and can be the ideal machine in this field.
Small four roller 1-2t/h YQJ 290 briquette machine:
Briquetting line is the transformation of a powder or granular product formed into composition with more valued pressure. This is for recycling mine waste and coal waste in production, which accomplished by compacting the product with a roller press.
2. Suitable raw material for briquetting
- Color and black metallic mine powder
- Coal powder or charcoal powder
- Other kind of powder material
3. Available shape of the final product
Oval , egg, square, pillow, bread shape etc, the one install the original machine is oval shape, if you need the other shape , we can change the roller for you , expect the oval shape
4. Features of Small four roller 1-2t/h YQJ 290 briquette machine:
1.Direct&professional coal briquetting machine manufacturer
2.High briquetting ratio
3.Double rollers coal briquetting machine
4.High pressure coal briquetting machine
5.Durable&energy-saving coal briquetting machine
6.Offer installation guide
Model |
Roller Dia.r (mm) |
Roller Width (mm) |
Roller Material |
Shaft Speed(r/min) |
Reducer Model |
Pressure Form |
Motor Power (kw) |
Capacity (t/h) |
YQJ-290 |
290 |
200 |
65Mn |
18 |
ZQ350 |
Constant Wedge Pressure |
5.5 |
1-2 |
YQJ-360 |
360 |
250 |
65Mn |
18 |
ZQ400 |
Constant Wedge Pressure |
7.5 |
2-4 |
YQJ-400 |
400 |
250 |
65Mn |
18 |
ZQ400 |
Constant Wedge Pressure |
11 |
4-6 |
YQJ-500 |
500 |
300 |
65Mn |
13 |
ZQ500 |
Constant Wedge Pressure |
18.5 |
6-10 |
YQJ-650 |
650 |
336 |
65Mn |
13 |
ZQ650 |
Constant Wedge Pressure |
30 |
10-15 |

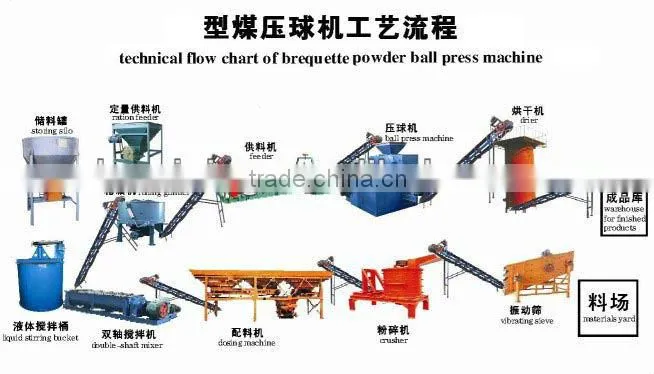

Process:
Note:
How to choose a suitable briquette machine:
1. What’s the raw material?
As different materials match different machines, So pls tell us what’s the raw material, is it limestone powder, coal powder or other metal powder.
2. The moisture of raw material
The moisture determines whether dryer is needed in the process.
3. The size of raw material
It should be crushed if the size is too big.
4. Capacity you need
Different capacity match different models of machine, what’s more, the smaller the capacity is, the simpler the process will be.
