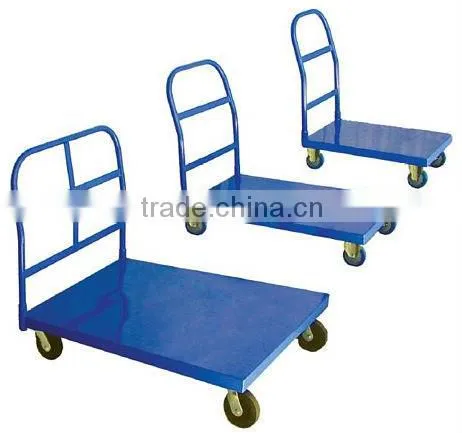

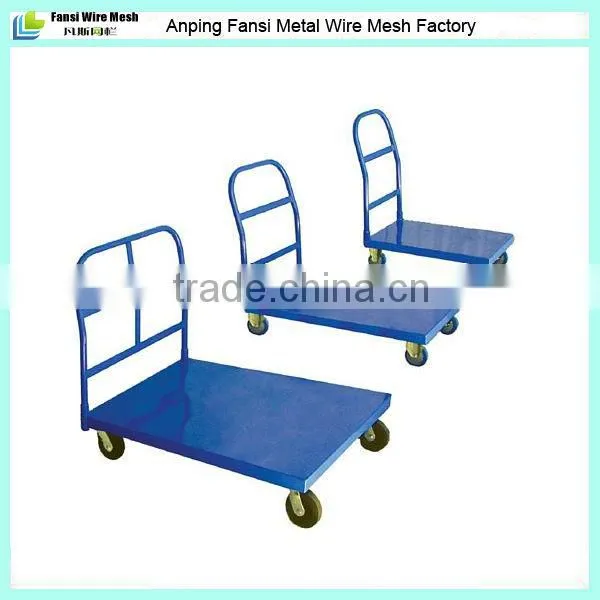

Loading 750kgs Powder Coated Flatbed Trolleys

Anping Fansi Metal Wire Mesh Factory
Loading 750kgs Powder Coated Flatbed Trolleys thumbnail-1
Loading 750kgs Powder Coated Flatbed Trolleys photo-1
US$ 45.58 - 75.54 MOQ: 100 Sets
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
FANSI
Model Number:
FS-SC-L-1173
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Xin'gang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name FANSI
Model Number FS-SC-L-1173

Specifications

Powder coated
All models standard with 4 castors
Industrial quality
Flatbed Platform Trolley
Easy to push

Loading 750kgs powder coated Flatbed Trolleys :



1.The specification:



SPECIFICATIONS

  • See Data Chart below
  • Powder coated blue finish
  • All models have one braking castor
  • All models standard with 4 castors
  • Large & Super models can be fitted with 6 castors
  • These units can come flatpacked (to save on transport costs) or fully assembled (for immediate and convenient use)
ModelDeck SizeWWL (SWL)Castor DIAWeight
Small800x500mm400kg125mm25kg
Medium1100x600mm400kg125mm30kg
Large1200x900mm750kg150mm60kg
Large (Double Handles)1200x900mm750kg150mm45kg
Super (Double Handles)1800x900mm750kg150mm60kg



2.The picture:

Loading 750kgs powder coated Flatbed Trolleys



3.The material:Q235 low carbon steel wire,stainless steel wire etc.



4. Characters:



(1)using the high quality cold-rolled steel welded by hardening



(2)high strength,and large load capacity.



(3)Specifications unity, capacity is fixed, the storage of goods be clear at a glance, and easy to the inventory.



(4)Surface galvanized, beautiful oxidation resistance and long service life



(5)Using international standards, and supporting the use of the container, effectively improve space utilization.



(6)It can stack each other four levels, realize the three-dimensional storage.



(7)Surface dealing is environmental protection, health immune, turnover, storing recovery will not pollute the environment.



(8) Cooperate with forklift, cattle, elevators, crane equipment can be effectively homework



(9)Folding structure, recovery with low cost,it is the wooden packaging alternative product.



(10)The bottom can be installed wheels, factory internal flow is very convenient



5. Technical:



Storing cage using Q195 contour as a raw material, the cold drawn into profile. Again through touch welding forming semi-finished products of mesh. In make mesh, it can use galvanized or coating surface treatment (storing cage most use galvanized processing), after surface treatment it can be assembled, finally making into finished products. The size of the storing cage according to the actual needs of customers' products production



6.Regular size:



stype

overoll size(mm)

Inner size(mm)

Volumn

wire diameter(mm)

Mesh(cm)

Weight(kg)

Max. loading (kg)

A-1

800*600*640

750*570*500

0.21

6.0

5*5

30

700

A-2

6.0

5*10

25

500

B-1

1000*800*840

950*770*500

0.51

6.0

5*5

47

1200

B-2

6.0

5*10

42

800

B-3

6.4

5*5

53

1500

B-4

6.4

5*10

46

1000

B-5

6.0

10*10

35

600

B-6

5.0

5*5

35

600

B-7

5.0

5*10

30

500

C-1

1200*1000*890

1150*970*750

0.83

6.0

5*5

65

1500

C-2

6.0

5*10

56

1000

C-3

6.4

5*5

73

2000

C-4

6.4

5*10

62

1200

C-5

6.0

10*10

46

1000

C-6

5.0

5*5

47

1000

C-7

5.0

5*10

40

800

D-1

800*500*540

750*470*400

0.14

6.0

5*5

26

600

D-2

6.0

5*10

21

400

E-1

1550*1120*990

1500*1090*850

1.39

6.0

5*5

84

1800

E-2

6.0

5*10

78

1500



7.Basic structure:



Loading 750kgs powder coated Flatbed Trolleys

8.The foldable type:

Loading 750kgs powder coated Flatbed Trolleys

9.Wire container



Loading 750kgs powder coated Flatbed TrolleysLoading 750kgs powder coated Flatbed TrolleysLoading 750kgs powder coated Flatbed Trolleys

10.Packing:

Loading 750kgs powder coated Flatbed TrolleysLoading 750kgs powder coated Flatbed Trolleys



11.Warehouse:

Loading 750kgs powder coated Flatbed TrolleysLoading 750kgs powder coated Flatbed Trolleys



12.Ready for shipment:

Loading 750kgs powder coated Flatbed Trolleys



13.Payment:

Loading 750kgs powder coated Flatbed Trolleys

We accept the L/C, T/T, D/P, Western Union, MoneyGram, Paypal or Escrow



14.Shipping:

1. Delivery Term: FOB Tianjin
2. Parts can be arranged within 3 working days after the payment confirmed.
3. UPS/DHL/TNT/EMS/FedEx is optional, or other way customer appointed.
4. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
5. Any import fees or charges are the buyer's responsibility.
