Specifications
1.Galvanized metal storage box2.Warehouse storage box
3.Waste recovery using storage box
4.ISO9001:2008
5.Storage box using
Metal storage box / Warehouse metal storage box / Galvanized storage box :
1.The specification:
(1)Size: 1200mm(L)*1000mm(W)*890mm(H),1000x800x840mm, 800x600x640mm, etc.
(2)Mesh:50*50mm, 50*100mm, 100*100mm
(3)Wire diameter:5.0mm, 6.0mm, 6.4mm
(4)Leg height:100mm
(5)Surface finish: galvanized
(6)Color:silver, bule, green, red, yellow, etc.

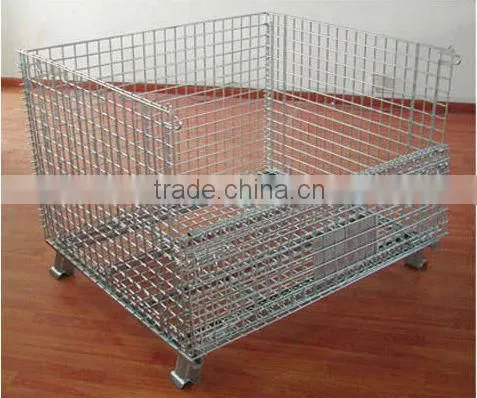

2.The storage box picture:
3.The material:Q235 low carbon steel wire,stainless steel wire etc.
4. Characters:
(1)using the high quality cold-rolled steel welded by hardening
(2)high strength,and large load capacity.
(3)Specifications unity, capacity is fixed, the storage of goods be clear at a glance, and easy to the inventory.
(4)Surface galvanized, beautiful oxidation resistance and long service life
(5)Using international standards, and supporting the use of the container, effectively improve space utilization.
(6)It can stack each other four levels, realize the three-dimensional storage.
(7)Surface dealing is environmental protection, health immune, turnover, storing recovery will not pollute the environment.
(8) Cooperate with forklift, cattle, elevators, crane equipment can be effectively homework
(9)Folding structure, recovery with low cost,it is the wooden packaging alternative product.
(10)The bottom can be installed wheels, factory internal flow is very convenient
5. Technical:
Storing cage using Q195 contour as a raw material, the cold drawn into profile. Again through touch welding forming semi-finished products of mesh. In make mesh, it can use galvanized or coating surface treatment (storing cage most use galvanized processing), after surface treatment it can be assembled, finally making into finished products. The size of the storing cage according to the actual needs of customers' products production
6.Regular size:
stype |
overoll size(mm) |
Inner size(mm) |
Volumn |
wire diameter(mm) |
Mesh(cm) |
Weight(kg) |
Max. loading (kg) |
A-1 |
800*600*640 |
750*570*500 |
0.21 |
6.0 |
5*5 |
30 |
700 |
A-2 |
6.0 |
5*10 |
25 |
500 |
|||
B-1 |
1000*800*840 |
950*770*500 |
0.51 |
6.0 |
5*5 |
47 |
1200 |
B-2 |
6.0 |
5*10 |
42 |
800 |
|||
B-3 |
6.4 |
5*5 |
53 |
1500 |
|||
B-4 |
6.4 |
5*10 |
46 |
1000 |
|||
B-5 |
6.0 |
10*10 |
35 |
600 |
|||
B-6 |
5.0 |
5*5 |
35 |
600 |
|||
B-7 |
5.0 |
5*10 |
30 |
500 |
|||
C-1 |
1200*1000*890 |
1150*970*750 |
0.83 |
6.0 |
5*5 |
65 |
1500 |
C-2 |
6.0 |
5*10 |
56 |
1000 |
|||
C-3 |
6.4 |
5*5 |
73 |
2000 |
|||
C-4 |
6.4 |
5*10 |
62 |
1200 |
|||
C-5 |
6.0 |
10*10 |
46 |
1000 |
|||
C-6 |
5.0 |
5*5 |
47 |
1000 |
|||
C-7 |
5.0 |
5*10 |
40 |
800 |
|||
D-1 |
800*500*540 |
750*470*400 |
0.14 |
6.0 |
5*5 |
26 |
600 |
D-2 |
6.0 |
5*10 |
21 |
400 |
|||
E-1 |
1550*1120*990 |
1500*1090*850 |
1.39 |
6.0 |
5*5 |
84 |
1800 |
E-2 |
6.0 |
5*10 |
78 |
1500 |
7.Basic structure:

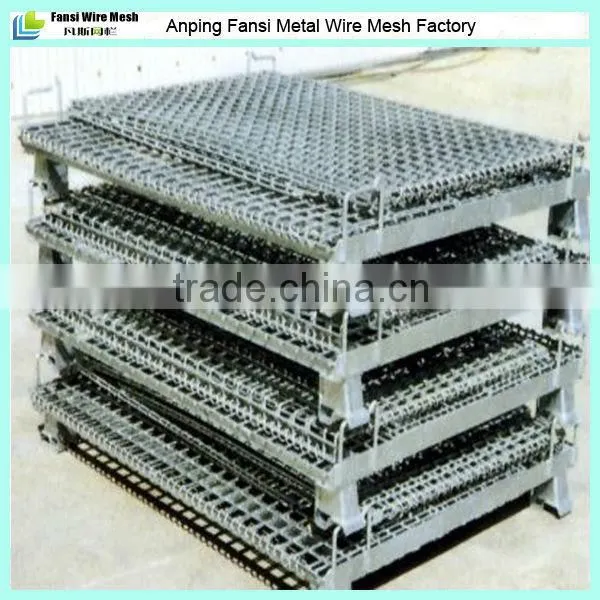

8.The foldable type:
9.Storage box:
10.Packing:
11.Warehouse:
12.Ready for shipment:
13.Payment:
We accept the L/C, T/T, D/P, Western Union, MoneyGram, Paypal or Escrow
14.Shipping:
1. Delivery Term: FOB Tianjin
2. Parts can be arranged within 3 working days after the payment confirmed.
3. UPS/DHL/TNT/EMS/FedEx is optional, or other way customer appointed.
4. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
5. Any import fees or charges are the buyer's responsibility.
