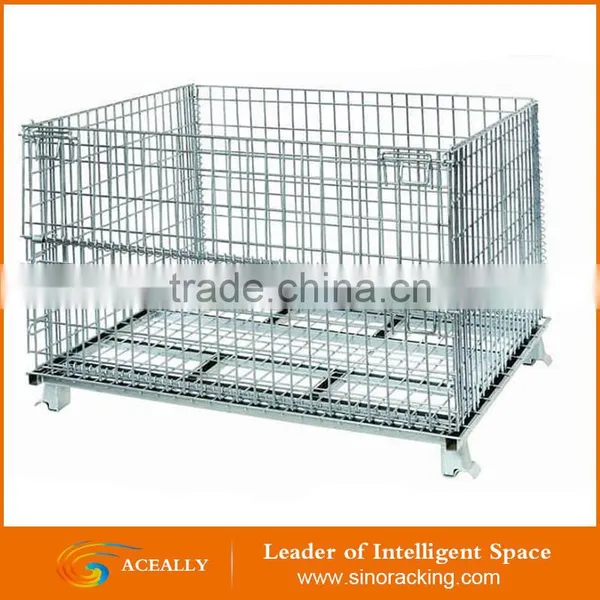

Warehouse storage customized welded wire cage
One. Main features of Industrial stackable storage wire mesh containers
1. Surface treatment: Zinc plated
2. Available in 5 to 14mm galvanized welded mesh
3. Legs are wrapped and welded around the based-no edges to scratch floors or people
4. Double wire reinforcements at load-bearing surface and top edges
5. Base inside walls protect content from damage
6. Open wire mesh design allows for full visibility for inventory checks, ventilation and cleanliness
7. Good appearance and cleanness
Adapts patented technology, with new pattern and unique design, Can also design and produce commercial storage equipment of various specifications according to customer's requirements
8. Offers overall arrangement for all kinds of markets and warehouses

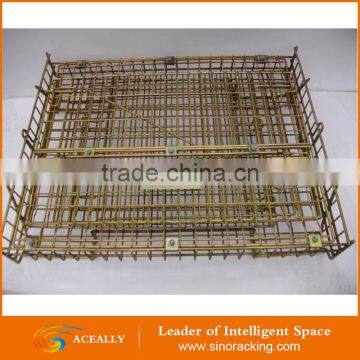

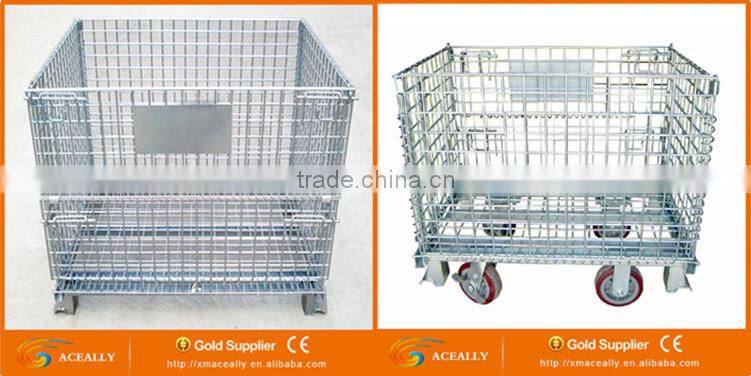

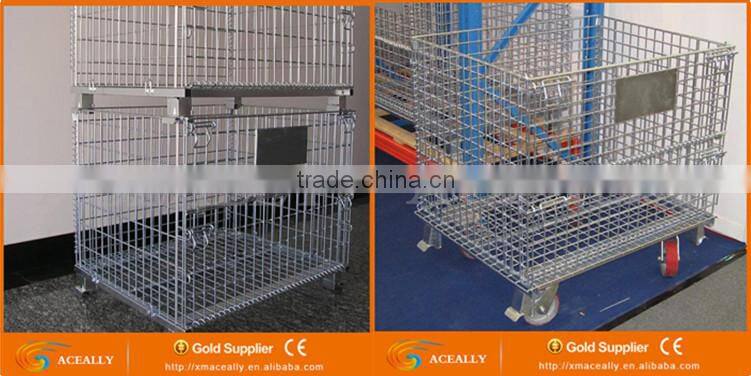

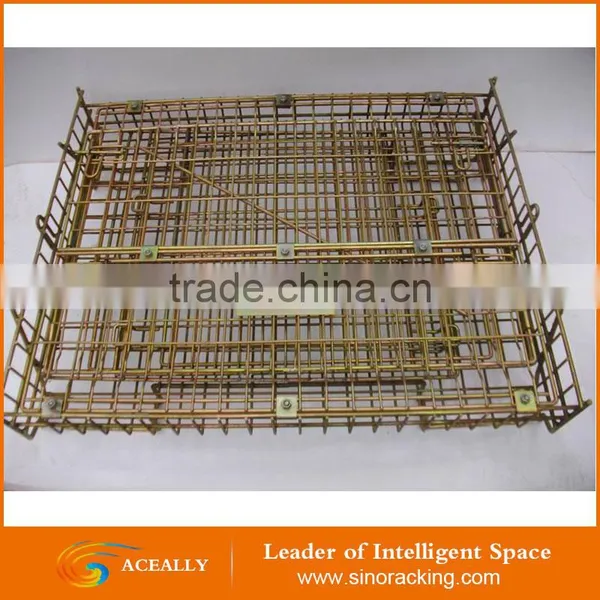

Two. Foldable Wire Container pictures display
|
|
|||||
|
The flexible safety locking bolts guarantee the safe and reliable loading for mesh container to prevent goods from horizontally throwing out. |
Reinforced slices in both sides and also the flexible connection strap are convenient for rapid folding and unfolding.
|
Reinforced U type channel prevents the structure from transforming while loading, and keep the goods safer. |
Multi-angles square-stack legs provide strong support ability of more pieces in one stack. |
|||
Remarks: Regarding Foldable Wire Container
Aceally can supply standard, Europe and United States storage cages. We have variety of models and sizes available for customers to choose, OEM &ODM acceptable.
Aceally Foldable Wire Container specifications
| Length(mm) | Width(mm) | Height (mm) | Capacity (kg) | Volume (m³) | Wire dia.(mm) | Leg height(mm) | Mesh grid (mm) |
| 800 | 600 | 650 | 700 | 0.22 | 6 | 100 | 50*50 |
| 800 | 600 | 650 | 500 | 0.22 | 6 | 100 | 50*100 |
| 1000 | 800 | 850 | 1200 | 0.51 | 6 | 100 | 50*50 |
| 1000 | 800 | 850 | 800 | 0.51 | 6 | 100 | 50*100 |
| 1200 | 1000 | 900 | 1500 | 0.84 | 6 | 100 | 50*50 |
| 1200 | 1000 | 900 | 800 | 0.84 | 6 | 100 | 50*100 |
| 800 | 600 | 650 | 800 | 0.22 | 6.4 | 100 | 50*50 |
| 800 | 600 | 650 | 600 | 0.22 | 6.4 | 100 | 50*100 |
| 1000 | 800 | 850 | 1500 | 0.51 | 6.4 | 100 | 50*50 |
| 1000 | 800 | 850 | 1000 | 0.51 | 6.4 | 100 | 50*100 |
| 1200 | 1000 | 900 | 2000 | 0.84 | 6.4 | 100 | 50*50 |
| 1200 | 1000 | 900 | 1000 | 0.84 | 6.4 | 100 | 50*100 |

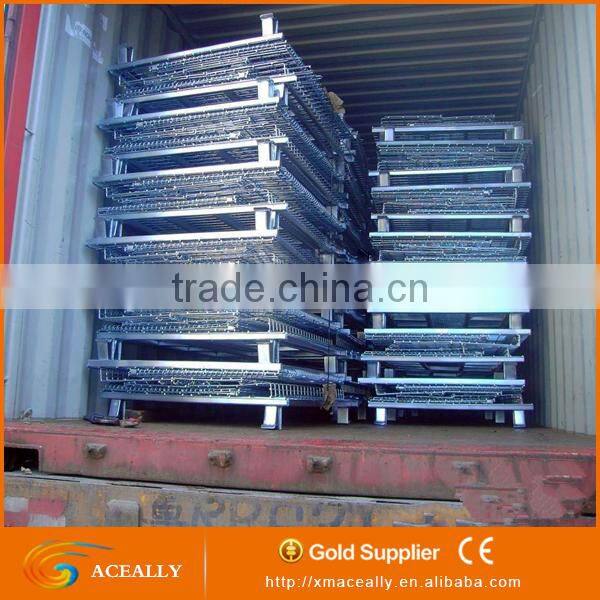

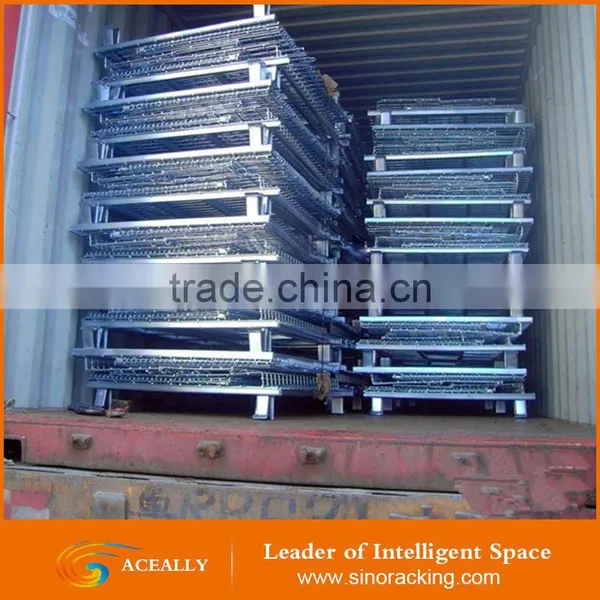

Foldable Wire Containe packaging
Aceally (International) Group is a manufacturer of innovative and professional logistics equipment products for warehousing storage markets worldwide. Which specializes in light duty shelving, medium duty racking, heavy duty ones and various storage and shelving solutions for nearly 15 years. Please feel free to contact our highly knowledgeable staff and allow us the pleasure of proposing the most innovative and affordable solution to your material handling needs.
Our business scope as follows
| cage wire mesh |
Selective pallet racking | VNA Pallet Racking | Wire mesh panel | Tool cabinet | |||||
| Modular wire shelving | Double deep pallet racking | Mezzanine Rack | Wire mesh container | Dock leveler | |||||
| Slotted angle shelving | Drive In pallet racking | Steel platform | Steel pallet | Supermarket shelving | |||||
| Boltless rivet shelving | Radio shuttle racking | Mobile shelving | Storage cage | Shopping basket | |||||
| Longspan shelving | Cantilever racking | Steel locker | Steel pallet box | Transportation cart | |||||
|
Website: or http://xmaceally.en.china.cn/ | |||||||||
Our products are 100% compatible to major brands such as Dexion, Redirack, Interlake etc. Designed to AS4084-1993 and complying with the European FEM regulations, SEMA and CE certificate. Our ability to design and custom build systems that suit your specific needs yet accommodate your strictest requirements allows us to propose material handling solutions for virtually any application.
