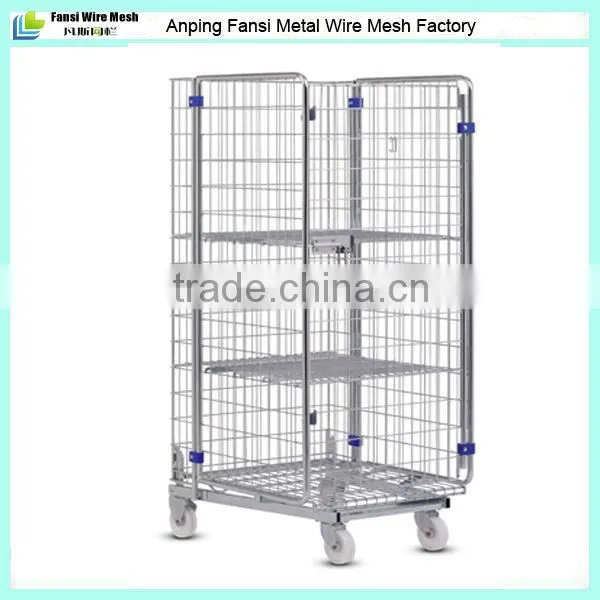

Round Tube Frame Metal Mobile Container for Storage Using

Specifications

1.Collapsible mesh storage cage
2.Warehouse using
3.Welded wire cage pallet
4.Low carbon steel wire
5.Foldable & stackable

Round tube frame metal mobile container for storage using :



1.The specification



Chassis
Made of rectangular tube frame, welded. Hinged support surface made of wire mesh.

Side panels
Made of round tube frame with wire mesh and plastic hinges.

Rear panel
Made of wire grate.

Door
Made of wire grate with round tube and plastic hinges.
Opening angle 270°.
Castors
2 fixed and 2 swivel castors made of polyamide.

Surface
High-gloss galvanised, chromated.

Locking mechanism Can be locked with padlock if required.	Catch mechanism Support surface made of wire mesh is held securely when containers are pushed together.



2. Folding illustrative picture



3.The material:Q235 low carbon steel wire,stainless steel wire etc.



4. Characters:



(1)using the high quality cold-rolled steel welded by hardening



(2)high strength,and large load capacity.



(3)Specifications unity, capacity is fixed, the storage of goods be clear at a glance, and easy to the inventory.



(4)Surface galvanized, beautiful oxidation resistance and long service life



(5)Using international standards, and supporting the use of the container, effectively improve space utilization.



(6)It can stack each other four levels, realize the three-dimensional storage.



(7)Surface dealing is environmental protection, health immune, turnover, storing recovery will not pollute the environment.



(8) Cooperate with forklift, cattle, elevators, crane equipment can be effectively homework



(9)Folding structure, recovery with low cost,it is the wooden packaging alternative product.



(10)The bottom can be installed wheels, factory internal flow is very convenient



5. Technical:



Storing cage using Q195 contour as a raw material, the cold drawn into profile. Again through touch welding forming semi-finished products of mesh. In make mesh, it can use galvanized or coating surface treatment (storing cage most use galvanized processing), after surface treatment it can be assembled, finally making into finished products. The size of the storing cage according to the actual needs of customers' products production



6.Regular size:



stype	overoll size(mm)	Inner size(mm)	Volumn	wire diameter(mm)	Mesh(cm)	Weight(kg)	Max. loading (kg)
A-1	800*600*640	750*570*500	0.21	6.0	5*5	30	700
A-2				6.0	5*10	25	500
B-1	1000*800*840	950*770*500	0.51	6.0	5*5	47	1200
B-2				6.0	5*10	42	800
B-3				6.4	5*5	53	1500
B-4				6.4	5*10	46	1000
B-5				6.0	10*10	35	600
B-6				5.0	5*5	35	600
B-7				5.0	5*10	30	500
C-1	1200*1000*890	1150*970*750	0.83	6.0	5*5	65	1500
C-2				6.0	5*10	56	1000
C-3				6.4	5*5	73	2000
C-4				6.4	5*10	62	1200
C-5				6.0	10*10	46	1000
C-6				5.0	5*5	47	1000
C-7				5.0	5*10	40	800
D-1	800*500*540	750*470*400	0.14	6.0	5*5	26	600
D-2				6.0	5*10	21	400
E-1	1550*1120*990	1500*1090*850	1.39	6.0	5*5	84	1800
E-2				6.0	5*10	78	1500



7.Basic structure:





8.The foldable type:

9.Types:



10.Packing:



11.Warehouse:



12.Ready for shipment:



13.Usage:



14.Loading container:
