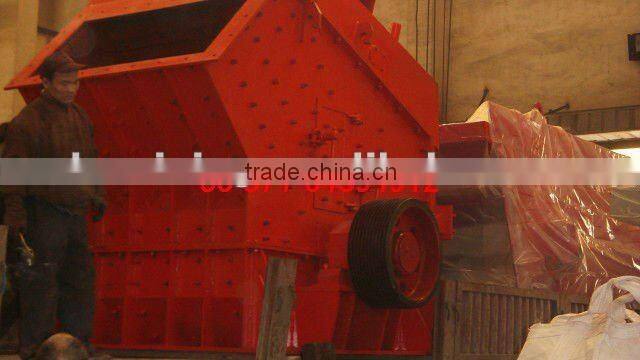

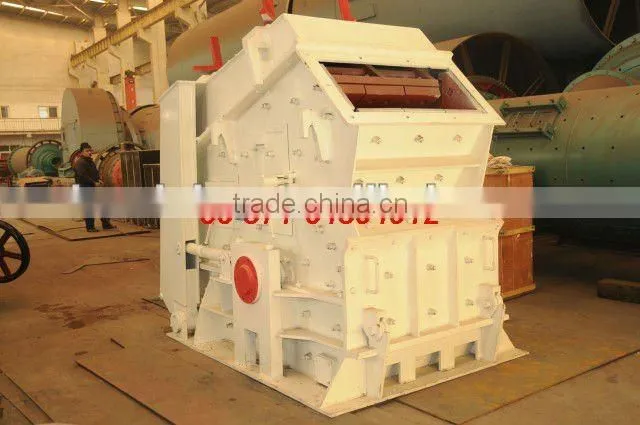

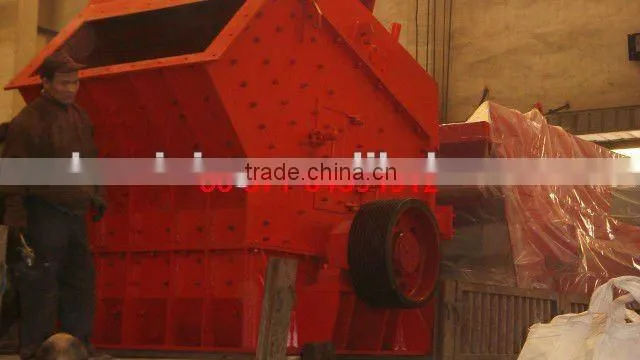

Mining Shredder Machine
Introduction:
Mining shredder machine are used in both primary and secondary crushing applications of aggregate, and in recycle breaking of reinforced concrete, asphalt and other construction and debris.

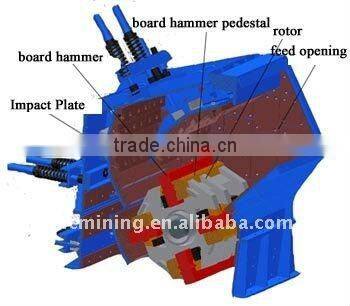

Working Principle:
When the Mining Shredder Machine works, the motor drives the rotor rotate of the machine with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers affect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being re-crushed. The materials from large to small all to be...
Characteristics:
Excellent cubic final products
Special structure
Non-key connection

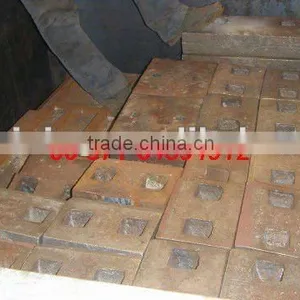

High chrome hammer
Durability in long time simplicity in operation
Technical Parameter:
Models |
Rotor size (mm) |
Feed opening (mm) |
Max. feed size (mm) |
Capacity (t/h) |
Power (kW) |
Weight (t) |
PF1007 |
Φ1000×700 |
400×730 |
300 |
15-30 |
37 |
5.54 |
PF1010 |
Φ1000×1050 |
400×1080 |
350 |
50-80 |
55 |
15 |
PF1210 |
Φ1250×1050 |
400×1080 |
350 |
70-130 |
95 |
15.25 |
PF1214 |
Φ1250×1400 |
400×1430 |
350 |
90-180 |
132 |
19 |
PF1315 |
Φ1320×1500 |
860×1520 |
500 |
120-250 |
200 |
24 |
PF1320 |
Φ1320×2000 |
860×2030 |
500 |
160-350 |
260 |
27 |
Note: This series breaker fits in the hard stone breaking, and the 90% of the output materials size ≤ 40mm
