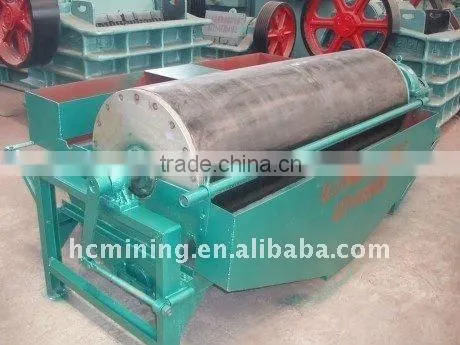

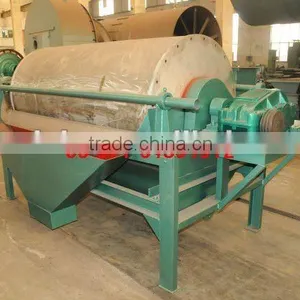

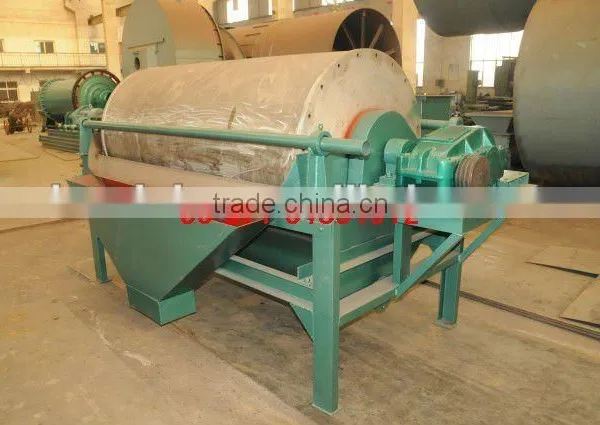

Chromite ore magnetic separator
Chromite ore magnetic separator introduction:

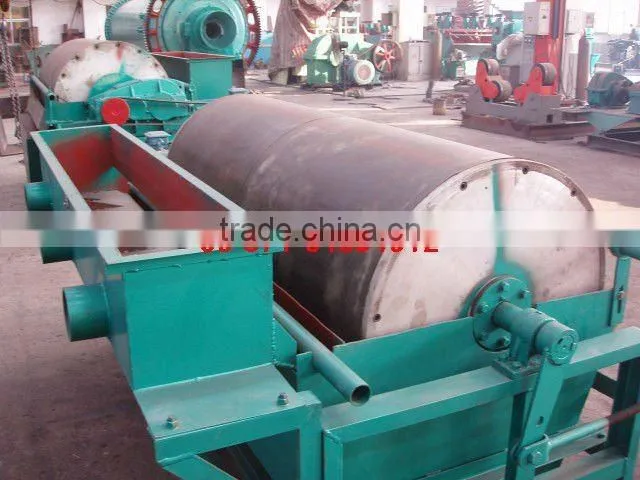

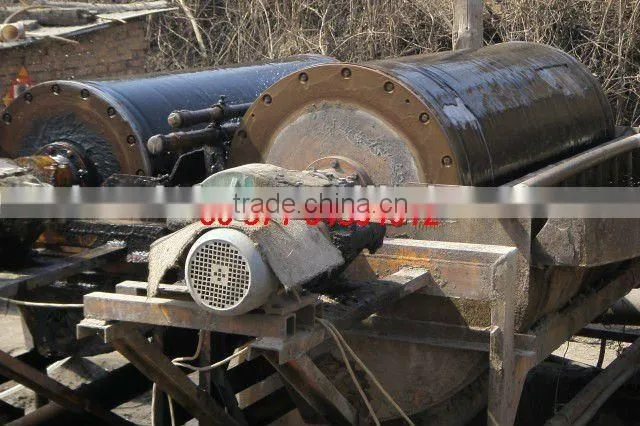

Chromite ore magnetic separator is mainly consists of such four parts as cylinder, magnetic system, cell and transmission parts. Cylinder is made of 2-3mm welded and bent stainless steel and the terminal cover is forged aluminum plate which is connected with stainless bolts. The motor drives the cylinder to go round and round through decelerated machine. The magnetic system is open and put in the cylinder. Chromite ore magnetic separator is installed on the bottom plate with stainless bolt, the axis of magnetic yoke spreads out of cylinder, and there is cranks which are fixed on the end of axis.
Chromite ore magnetic separator application:
The chromite ore magnetic separator can separate raw materials with different magnetic rigidities. The chromite ore magnetic separator works under the magnetic force and machine force.
Chromite ore magnetic separator are designed to recover ferromagnetic materials. The chromite ore magnetic separator are available in designs and sizes to provide solutions for all applications. The heart of each separator is the magnetic system with its unique design, which has a proven record of high efficiency.
Chromite ore magnetic separator working principle:

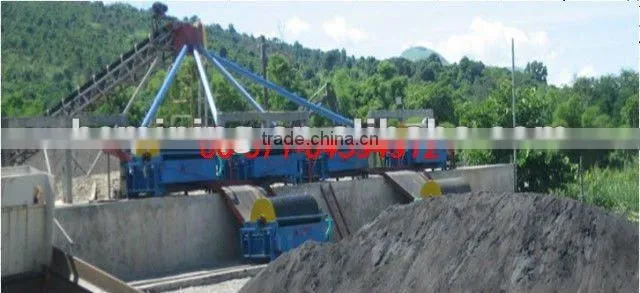

The mineral slurry flows into the cell through box feeder, the mineral particle is loose under the function of water flow of feeder water pipe when they flow into the cell. Affected by magnetic field, the magnetic particle swarm together and form magnetic cluster or chain. With the magnetism of mineral slurry, the magnetic cluster or chain moves toward the magnetic pole, and is absorbed to the cylinder. Because of the polarity of magnetic pole, the revolving directions alternate constantly, and remain fixed when it is working. When the magnetic cluster and chain go round and round along with the cylinder, the mingled gangue and other non-magnetic ore fall down due to the mixing ...
Chromite ore magnetic separator technical parameter:
Models |
Dia.*Length |
Magnetism |
Capacity |
Speed |
Motor |
|
Type |
Power |
|||||
CTB-69 |
600×900 |
Permanent magnet |
8-15 |
39 |
Y90S-4 |
1.1 |
CTB-612 |
600×1200 |
Permanent magnet |
10-20 |
39 |
Y90L-4 |
1.5 |
CTB-618 |
600×1800 |
Permanent magnet |
15-30 |
39 |
Y90L-4 |
1.5 |
CTB-7512 |
750×1200 |
Permanent magnet |
12-30 |
30 |
Y100L-4 |
2.2 |
CTB-7515 |
750×1500 |
Permanent magnet |
15-40 |
30 |
Y100L-4 |
2.2 |
CTB-7518 |
750×1800 |
Permanent magnet |
20-45 |
30 |
Y100L-4 |
3 |
CTB-9015 |
900×1500 |
Permanent magnet |
25-60 |
27-30 |
Y112M-4 |
4 |
CTB-9018 |
900×1800 |
Permanent magnet |
40-80 |
27-30 |
Y112M-4 |
4 |
CTB-1050 |
1050×1800 |
Permanent magnet |
50-100 |
22-25 |
Y132M-6 |
5.5 |
CTB-1050 |
1050×2100 |
Permanent magnet |
60-120 |
22-25 |
Y132M-6 |
5.5 |
CTB-1224 |
1200×2400 |
Permanent magnet |
80-160 |
18-20 |
Y160M-6 |
7.5 |
CTB-1230 |
1200×3000 |
Permanent magnet |
100-200 |
18-20 |
Y160M-6 |
7.5 |
