Specifications
Professional mini gold wash plant:1) 20 years of experience
2) stable performance
3) Flexible capacity
High performance mini gold wash plant
About us:
Gongyi Hengchang Metallurgical Building Material Equipments Plant is one of biggest mining machinery and construction machinery manufacturer and designer in China.
We produce the jaw crusher, ball mill, elevator, spiral classifier, magnetic separator, flotation machine, spiral chute, shaking table, and other auxiliary mineral processing equipments.we can also design the whole Coal briquetting plant for you in charge of free.welcome to contact us.

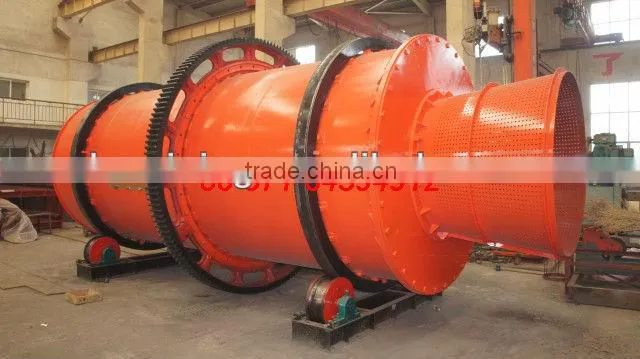

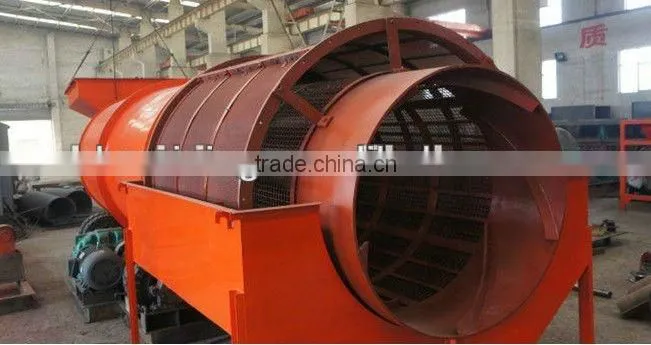

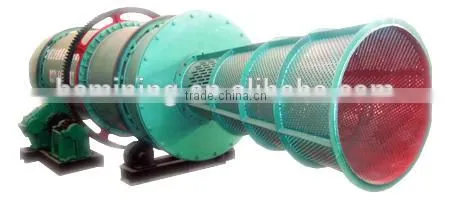

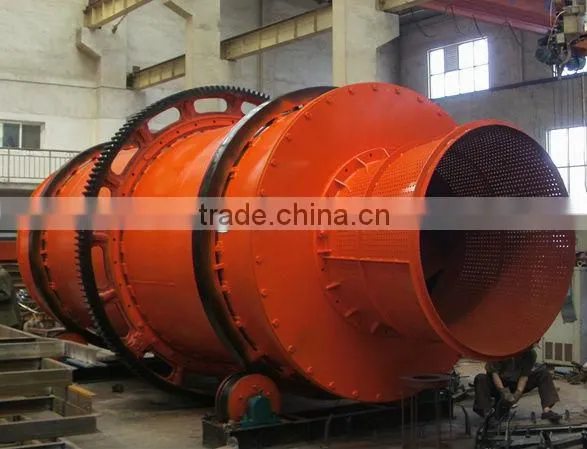

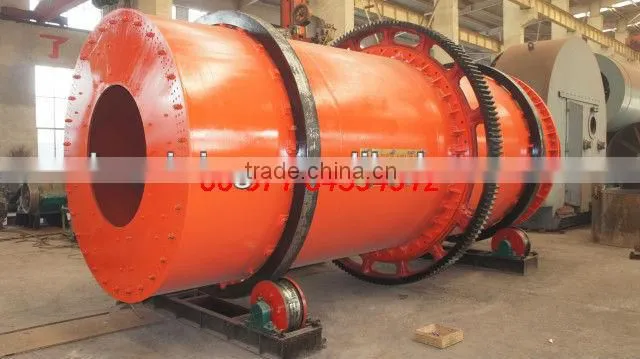

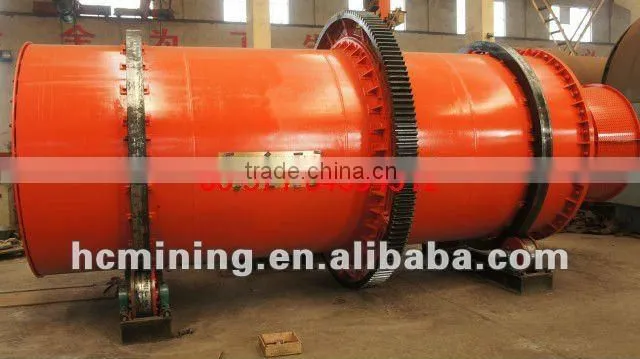

Mini gold wash plant:
Gold wash plant brief introduction
(1). Adopting foreign technology, GTX Series ore washing machines have single layer or double layers circular sieve to classify two to three kind different grades sand and stone which should be clearly declaimed.
(2). It is mainly used for washing ore before beneficiation operation system, and improving the ore grade for next processing step.
(3). It can be used for manganese ore, iron ore, limestone, tungsten, and silica ore, and etc.
Gold wash plant working principle:
the slurry material feeds into the drum where it is vigorously scrubbed, the soil matrix is broken up and the target mineral is released. The material is then screened through the rotating screen and waste is ejected. The screened material is then passed on to the concentrating modules for upgrading.
Gold wash plant technical parameter:
Model |
Drum Dimension (mm) |
Screen Size (mm) |
Rotate Speed (r/min) |
Feeding Size (mm) |
Water Consumption(m3/h) |
Capacity(t/h) |
Power (KW) |
Weight (t) |
GTX1030 |
Φ1000×3000 |
≤20 |
27.9 |
≤80 |
1 |
40 |
15 |
3.8 |
GTX1230 |
Φ1200×3000 |
≤25 |
27.6 |
≤100 |
1.3 |
70 |
22 |
4.7 |
GTX1430 |
Φ1400×3000 |
≤25 |
27.6 |
≤100 |
1.5 |
80 |
22 |
4.9 |
GTX1545 |
Φ1500×4500 |
≤25 |
21 |
≤160 |
1.7 |
120 |
30 |
6.9 |
GTX2265 |
Φ2200×6500 |
≤50 |
19 |
≤230 |
1.8 |
180 |
37 |
15.9 |
If you are interested in our products, just contact me! We will offer you the best proposal !
