Specifications
titanium micro tube1)OD(6-219)*WT(0.5-10)*L(MAX12000)
2)Gr1,Gr2,Gr3,Gr5,gr9,Gr12
3)ASTM B337/338/861
Specifications
titanium seamless tube titanium micro tube 1)OD(6-219)*WT(0.5-10)*L(MAX12000) 2)Gr1,Gr2,Gr3,Gr5,gr9,Gr12 3)ASTM B337/338/861
titanium seamless tube

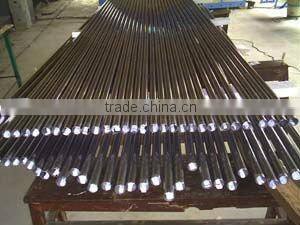

titanium micro tube
Size: OD(6-219)mm*WT(0.5-10)mm*L(MAX 12000)mm Material: Gr1,Gr2,Gr3,Gr5,Gr9,Gr21
Standard: ASTM B337/338/861,ASME SB338
Seamless Titanium Tube information:
1)Grade: Gr1, Gr2, Gr3, Gr5,Gr9, Gr11, Gr12, Gr19, Gr23
2)Standard: ASTM B337 ASTM B338 ASTM B861
3). Allowable Deviation of Outer Diameter (mm)
Outer Diameter |
Allowable Deviation |
Outer Diameter |
Allowable Deviation |
3~10 |
±0.15 |
>50~80 |
±0.65 |
>10~30 |
±0.30 |
>80~100 |
±0.75 |
>30~50 |
±0.50 |
>100 |
±0.85 |
4). Allowable Deviation of Wall Thickness is not more than±10% of the Nominal WT
5). Allowable Deviation of Length(mm): L<12000
6). Curvature of Titanium Tube
Outer Diameter (mm) |
Curvature (mm/m, not more than) |
≤30 |
3 |
>30~110 |
4 |
7) Used area:
Heat exchangers and condensers
All kinds of corrosive fluid transmission pipeline system
Titanium bicycle tubes, automobile exhaust pipe
Offshore aquaculture
8) OEM and customers’ designs are acceptable
Nickel(Ni), Zirconium(Zr), Niobium(Nb) etc
9) Final product test:
Ultrasonic test, Eddy current test, Hydraulic test, Bend test, Flaring test and so on.
Product other description:
-Processing technique: seamless
-The diameter of tube is more than 219mm and the max length is 12000mm
-Seamless titanium tube can be used in many different areas
-Brilliant quality, perfect service, reasonable price offered
ASME GR1/2 Mechanical Properties(Composion%)
| Tensile Strength(Mpa) | Yield Strength0.2%(Mpa) | Elongation(%) |
| 460 | 325 | 25 |
ASME Gr2 Product Analysis(Composition%)
Elements |
Fe |
C |
N |
H |
O |
Ti |
Impuiry Elements |
Spec value |
Max 0.30 |
Max 0.08 |
Max 0.03 |
Max 0.015 |
Max 0.015 |
Residual |
Each ≤0.1 |
Actual value |
0.025 |
0.01 |
0.01 |
0.002 |
0.1 |
Residual |
≤0.1 |
