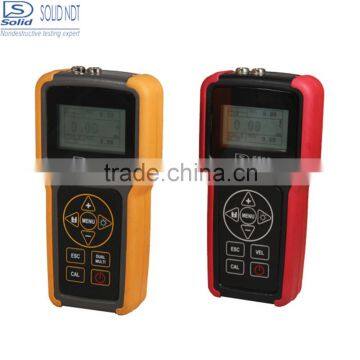

Digital Echo-Echo High Accuracy Ultrasonic Thickness Gage
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
Solid
Model Number:
Upad
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Beijing Best Seller Ultrasonic Thickness TesterNegotiableMOQ: 1 Piece -
Solid UPAD X100 Portable Digital Laser Thickness GaugeNegotiableMOQ: 1 Piece
-
Solid Portable Digital Ultrasonic Steel Thickness GaugeNegotiableMOQ: 1 Piece
-
Solid 2013 Newest Cast Steel Special Thickness Gauge ManualNegotiableMOQ: 1 Piece
-
Solid Digital Portable Ultrasonic Thickness Gauge PriceNegotiableMOQ: 1 Piece
Place of Origin
Beijing, China
Brand Name
Solid
Model Number
Upad
Digital Echo-Echo high accuracy ultrasonic thickness gage
Feature
SOLID ultrasonic thickness gauge is used for measuring the thickness of nonmetallic plate indirectly, especially for steel sheet , pipe , iron . This gauge is to measure the Steel Sheet thickness mainly by using distribution characteristics of electromagnetic field and possesses functions of thickness measurement, data analysis, data storage & output etc. It is a kind of intelligent thickness measuring instrument that is portable, convenient and accurate.
Specification
| Principle | Ultrasonic(Pulse-Echo/Echo-Echo) | Dimension (mm) | 165×82×30 | ||||
| Resolution | 0.1mm(> 100mm)/0.01mm(<100mm) | Accuracy | ±(0.5%H+0.01)mm | ||||
| Velocity | 1000~9999m/s | Weight | 250g | ||||
| Calibration | Auto Sound-Velocity-Calibration | Measuring Range | Noarmal:0.75-40mm Coating: 2-25mm | ||||
| Auto Probe Zeroing Calibration | Pulse | 150V Negative Pulse | |||||
| Indicator | Probe Connection Indicator | Receiver | Gain | High/Low/Auto | |||
| Coupling Indicator | Bandwidth | 0.5-15MHz | |||||
| Environment | Temperature:-20°C~70°C | Measuring | Result Showing | Online Statistic/Velocity | |||
| Humidity:5%~90% | Statistic | Online:Max Min ,Standard Devration | |||||
| DISPLAY | LCD | High-Contract 128*64 | File: | Max, Min AVG, mean square error | |||
| Beautiful printed characters,Number, Symbol, High Brightness EL Backlight | Alarm | Threshold Acoustooptical Alarm | |||||
| Thickness Logging | 1000 data sets/group ,liner | Memory | Files | 1000 groups | |||
| Update | Single Point: 5 times/s | USB Storage | Connection USB is allowed, convenient to read thickness values | ||||
| Rate | |||||||
| Scan Mode: 25times/s | Standard Package | 1 | |||||
| Input/Output | Probe Cable | LEMO 00 (C5) x2 | Main Body | 1 | |||
| Communication | USB | Probe | 1 | ||||
| Language | Chinese /English | Manuel | 1 | ||||
| Unit | mm/inch | Carrying Case | 1 | ||||
| Power Supply | Battery | 1.5V AAA x4 | Coupling paste | 1 | |||
| Working Time | 200 hours | Battery | 1 | ||||
Application:
