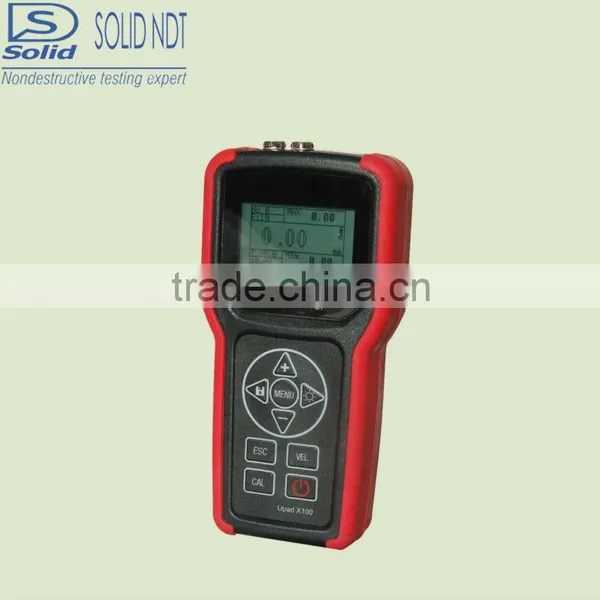

Solid USB Connection metal digital thickness gauge
- 50 Piece / Pieces per Month
- Beijing
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Beijing, China | Brand Name: | Solid | Model Number: | Upad |
Product Description
Specifications
metal digital thickness gaugeMeasuring Metal Eliminating the Effect of Coating
USB for Storage ,Plug and Play
metal digital thickness gauge
Solid 2013 Newest Portable Ultrasonic Thcikness Gauge
Specification:
Principle | Ultrasonic(Pulse-Echo/Echo-Echo) | Dimension (mm) | 165×82×30 | |||
Resolution | 0.1mm(> 100mm)/0.01mm(<100mm) | Accuracy | ±(0.5%H+0.01)mm | |||
Velocity | 1000~9999m/s | Weight | 250g | |||
Calibration | Auto Sound-Velocity-Calibration | Measuring Range | Noarmal:0.75-40mm Coating: 2-25mm | |||
Auto Probe Zeroing Calibration | Pulse | 150V Negative Pulse | ||||
Indicator | Probe Connection Indicator | Receiver | Gain | High/Low/Auto | ||
Coupling Indicator | Bandwidth | 0.5-15MHz | ||||
Environment | Temperature:-20°C~70°C | Measuring | Result Showing | Online Statistic/Velocity | ||
Humidity:5%~90% | Statistic | Online:Max Min ,Standard Devration | ||||
DISLAY | LCD | High-Contract 128*64 | File: Max, Min AVG, mean square error | |||
Beautiful printed characters, Number , Symbol, High Brightness EL Backlight | Alarm | Threshold Acoustooptical Alarm | ||||
Memory | Files | 1000 groups | ||||
Thickness Logging | 1000 data sets/group ,liner | |||||
Update Rate | Single Point: 5 times/s | USB Storage | Connection USB is allowed, convenient to read thickness values | |||
Scan Mode: 25times/s | ||||||
Input/Output | Probe Cable | LEMO 00 (C5) x2 | Standard Package | Main Body | 1 | |
Communication | USB | Probe | 1 | |||
Language | Chinese /English | Manuel | 1 | |||
Unit | mm/inch | Carrying Case | 1 | |||
Power Source | Battery | 1.5V AAA x4 | Coupling paste | 1 | ||
Working Time | 200 hours | Battery | 1 group |
THICKNESS GAUGE
Mode | Zero Calibration | Measuring Accuracy | USB | Coating | Statistic Function | Memory |
Upad X100 | V | 0.1/0.01mm | X | X | Online | 100 teams |
Upad X200 | V | 0.1/0.01mm | V | X | Online/Data | 500 teams |
Upad X300 | V | 0.1/0.01mm | V | V | Online/Data | 1000 teams |
