Specifications
Ultrasonic Thickness GaugeMeasuring Metal Eliminating the Effect of Coating

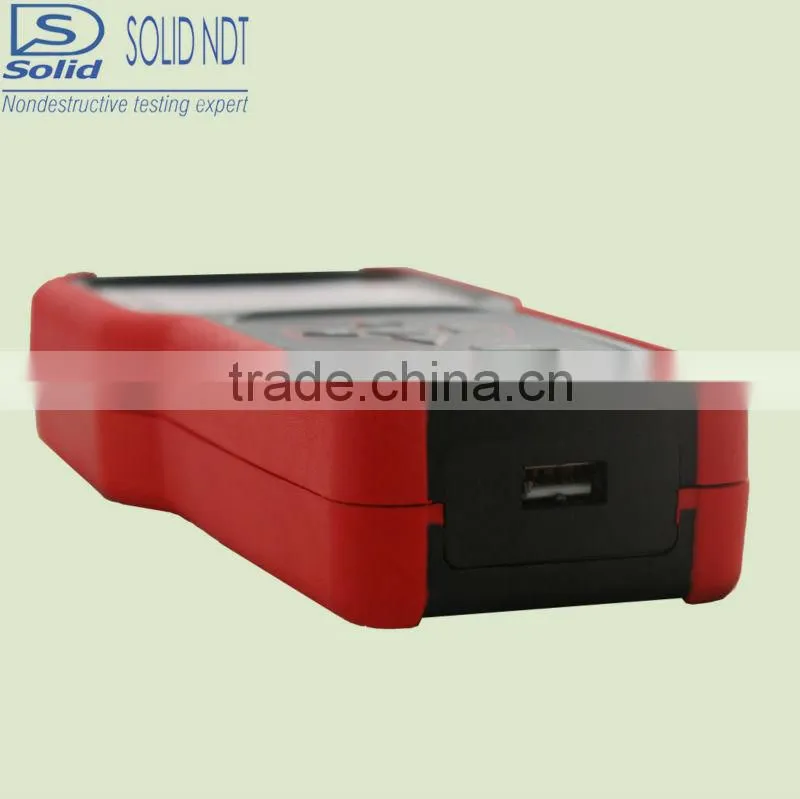

USB for Storage ,Plug and Play
thickness gauge meter
Upad X Series Ultrasonic Thickness Gauge will be the best choice for accomplishing measurement. It fits many kinds of metal, such as steel, cast steel, aluminum, plastic, china, glass, glass fiber and any other good conductors of ultrasonic.

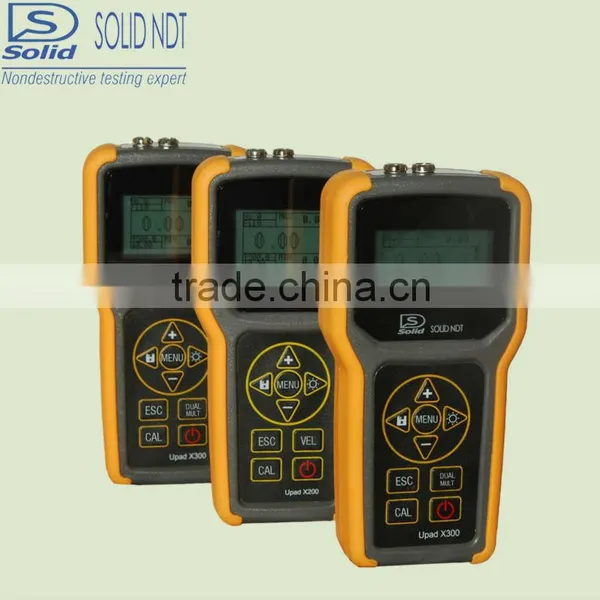

There are three visions in Upad X Series, Upad X100, X200 and X300. X300 could measure the thickness of metal covered with coating, the thickness of metal base will be showed.
Advanced Auto Probe Zeroing Calibration and Echo-Echo mode are applied on Upad X Series. taking more accurate measuring result and higher production rate to you.
Upad X Series is creative , it will supply a superior experience for users
Specification:
Principle |
Ultrasonic(Pulse-Echo/Echo-Echo) |
Dimension (mm) |
165×82×30 |
|||
Resolution |
0.1mm(> 100mm)/0.01mm(<100mm) |
Accuracy |
±(0.5%H+0.01)mm |
|||
Velocity |
1000~9999m/s |
Weight |
250g |
|||
Calibration |
Auto Sound-Velocity-Calibration |
Measuring Range |
Noarmal:0.75-40mm Coating: 2-25mm |
|||
Auto Probe Zeroing Calibration |
Pulse |
150V Negative Pulse |
||||
Indicator |
Probe Connection Indicator |
Receiver |
Gain |
High/Low/Auto |
||
Coupling Indicator |
Bandwidth |
0.5-15MHz |
||||
Environment |
Temperature:-20°C~70°C |
Measuring |
Result Showing |
Online Statistic/Velocity |
||
Humidity:5%~90% |
Statistic |
Online:Max Min ,Standard Devration |
||||
DISLAY |
LCD |
High-Contract 128*64 |
File: Max, Min AVG, mean square error |
|||
|
Beautiful printed characters, Number , Symbol, High Brightness EL Backlight |
Alarm |
Threshold Acoustooptical Alarm |
||||
Memory |
Files |
1000 groups |
||||
Thickness Logging |
1000 data sets/group ,liner |
|||||
|
Update Rate |
Single Point: 5 times/s |
USB Storage |
Connection USB is allowed, convenient to read thickness values |
|||
Scan Mode: 25times/s | ||||||
Input/Output |
Probe Cable |
LEMO 00 (C5) x2 |

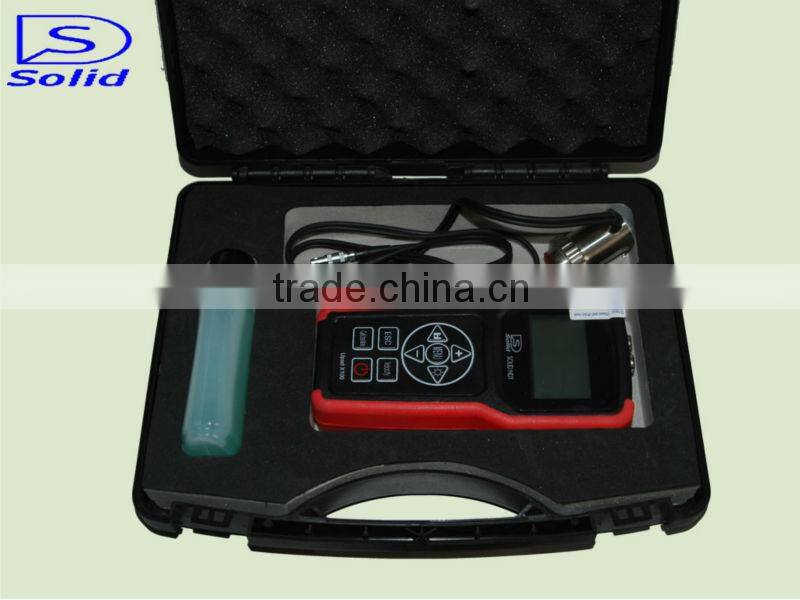

Standard Package |
Main Body |
1 |
|
Communication |
USB |
Probe |
1 |
|||
Language |
Chinese /English |
Manuel |
1 |
|||
Unit |
mm/inch |
Carrying Case |
1 |
|||
Power Source |
Battery |
1.5V AAA x4 |
Coupling paste |
1 |
||
Working Time |
200 hours |
Battery |
1 group |
|||
