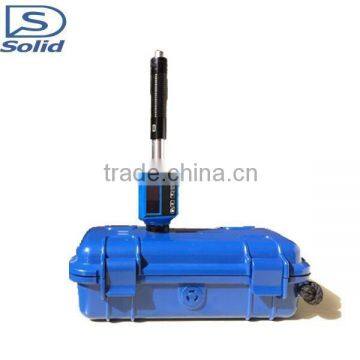

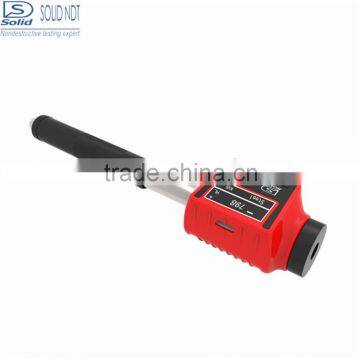

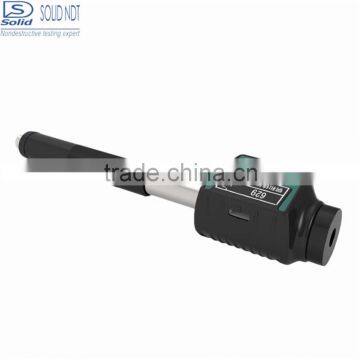

Pen-type portable hardness tester
Feature
The H series of Lpad are the portable hardness testing instruments, which integrated the smartest NDT technology and the smallest dimension. The Lpad hardness tester is a revolutionary product that can test most of the metal objects. With the pen type design and innovative D/DL impacting probes, the Lpad H series products provide convenient and reliable experience of testing.
With its small size, impressive design, competitive price, convenient using experience, The Lpad hardness tester can wildly be used in various situations.
Specification
Testing Direction | Standard Equipped: | Resolution | |
Highly accurate in any impact direction | The instrument host The nylon brush | 1 | 128×64 OLED display |
Testing Range | Small bearing rings | 1 | Dimensions |
(170-960)HLD, (17.9-69.5)HRC, (19-683)HB,(80-1042)HV,(30.6-102.6)HS, | The ABS instrument | 1 | 148mm×40mm×30mm |
(59.1-88)HRA, (13.5-101.7)HRB | Applicable Materials | Power Supply | |
Hardness Standards | Steel and cast steel, alloy tool steel, stainless steel,gray cast iron,nodular cast iron, cast aluminum alloy,copper zinc alloys (brass), an alloy of copper and tin, copper(bronze) | Rechargeable lithium battery | |
HL,HV,HRA,HRC, HRB,HB,HV,HS | Application | Working Hours | |
Accuracy | Bearings and other parts; | About 10 hours | |
HLD:±6 (760HLD) | Failure analysis of pressure vessel, steam turbine generator group and equipment; | Working Conditions | |
Repeatability Value | Heavy workpieces; | Operating temperature: 10-50 c; | |
HLD:±6 (760HLD) | Mechanical or permanent assembly installed; | Storage temperature: -30 ℃ -60 ℃; | |
HLD:±6 (760HLD) | The test space is very narrow;The original record of formal requirements on test results; | Humidity: 90% max; | |
Application:
Ability
Solid(Beijing) Technology Co.,Ltd is a high-tech business enterprise located in the Beijing , based on research and development, production and marketing of industrial testing equipment .Our team has a solid technical strength and rich marketing experience. We provide reliable industrial testing products and related technical services for our customers in all over the world.
Our advantages:
- All of the items have 1 year warranty(we could change a new one for if there has quality problems,but buyer need to pay for the freight)
- We could prepare the products at once for customers' immediately purchase.
- We offer technic support and lifelong after-sale services.
Delivery Time:
1) After you make the order,we'll contact you and prepare the itme as fast as possible.
2) Finish preparing the model,we ship it for you by DHL/UPS/FedEx/TNT/EMS and give you the tracking number(The process takes about half one day or one day).
3) The shipping time is about 3~5 days by DHL/UPS/FedEx/TNT,10 days by EMS
4) We'll try our best to make the item arrive on time.As the courier,weather and local custom,maybe sometimes it'll be delayed.Your understanding will be highly appreciated
Pls take a Note:
A) The product will be carefully packed by cotton boxes before it's sent out.
B) We'll try our best to make the item arrive on time.As the courier,weather and local custom,maybe sometimes it'll be delayed.Your understanding will be highly appreciated.
C) Pls do not leave not good feedback before contacting us.We're always make the perfect services for our customers all the time.Making promise is the key point in business.
D) The product will be carefully TESTED,then packed by cotton box before it's sent to customer.
Warranty:
All of our products have 1 year warranty.That to say.If the model has any quality problems that you're satisfied,pls do not hesitate to send it back to us for changing a new one or repairing for you.This is our business,and we make the promise.
Contact details:
If you have any questions,pls feel free to e-mail us or call us directly.If nobody answers,pls do not worry.Leave us the message,we'll contact you as fast as possible.Thanks a lot.
Any problems,pls send me feedback or call me for details.We welcome your inquiry.Many thanks.
