UD TRUCK
1. UD tow truck Specification
Basic information |
Type |
4×2 tow truck for sale |
Length x Width x Height(mm) |
5920×2499×3730 |
|
Wheelbase(mm) |
3500 |
|
Front overhang/Rear |
1460/960 |
|
Top speed(km/h) |
120 |
|
GVW(kg) |
18000 |
|
Kerb Weight(kg) |
7105 |
|
Gross trailer weight(kg) |
34700 |
|
5th wheel payload (kg) |
10700 |
|
Approach/Departure angle(°) |
14/43 |
|
Cab |
Type |
Cab-over-engine, high roof , dual-bunk |
Passengers(person) |
3 |
|
Engine |
Model |
GH1C |
Manufacturer |
UD Trucks Corporation |
|
Displacement(L) |
10.837 |
|
Emission |
CN4 |
|
Type |
Inline 6 cylinders, 4 valves, hydro-cooling, turbo with inter-cooling |
|
Power rating(kw) |
316 |
|
Max net power(kw) |
315 |
|
Injection technology |
Electric unit injector with max injection pressure 200MPa |
|
After treatment |
SCR |
|
Clutch |
Type |
Single disc, dry, pull-type diaphragm clutch |
Disc diameter(mm) |
420 |
|
Gearbox |
Model |
F2R20A |
Type |
Mechanical, manual, 12 forward gears + 2 reverse gears |
|
Steering gearbox |
Type |
Recirculating ball type hydraulic power-assisted steering system |
Axle |
Load capacity(kg) |
Front: 8000/ Rear:13000 |
Rear axle ratio |
3.900 |
|
Frame |
Type |
One piece by roll forming |
Max section area(mm) |
300×90×8,7 |
|
Suspension |
Type |
Front parabolic leaf, Rear multi leaf + T-ride, Front stabilizer |
Leaf Qty. |
3/7+9 |
|
Tyre |
Specification(either one) |
295/80R22.5 |
315/80R22.5 |
2. Tow Truck Introduction
UD Tow truck Roof hatchEmergency exit for any unexpected situations |
UD Tow truck Multi view angle mirrorConsiderately designed Mirror combination ensures full view for the driver; electrical-heated mirror as optional effectively improves driving safety in severe weather. |
|
|

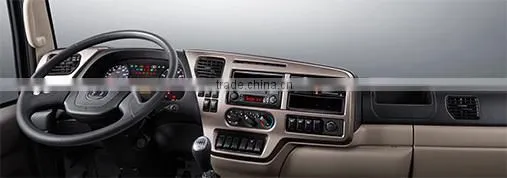

UD Tow truck Dashboard with delicate layoutWell laid out dashboard improves driving safety substantially with controllers and switches in arm reach; high luminance and high contrast display of 4.5 inch size provides with easily readable information
|
UD Gearbox cooling systemEquipped with transmission oil cooler for longer gearbox life
|
UD Hub reduction axleFor heavy cargo transportation and poor working condition, hub reduction axle as optional.
|
1) Bulk ship and RORO ship
2)Container
1) Products Transportation
Our driver is professional trained to provide safe and fast transportation of trucks.
2) Customer clearance
Our team can provide customer clearance for all the trucks
3) Container Loading and fixing
Our company are professional exportor of all kinds of trucks, pickups and parts.
