A tractor unit, also known as a trailer tractor, is a specialized commercial vehicle designed to tow trailers. It has no cargo-carrying capacity itself but acts as the **"power head"** of a truck train, providing traction. It is a core piece of equipment in modern logistics, ports, and engineering fields.
Semi-trailer tractor units:
I. Core Definition and Structure
Core Features: The tractor unit and trailer are detachable and connected via a **towing saddle (semi-trailer)** / **towing hook (full trailer)**, with independent power, control, and braking systems.
Basic Structure
Chassis: Reinforced beams, heavy-duty suspension, large-tonnage axles
Power: Large-displacement diesel engine (350-600+ horsepower), strong torque
Connection Devices
Semi-trailer towing seat (saddle/fifth wheel): The front of the semi-trailer rests on it, the tractor bears approximately 20%-30% of the trailer weight
Towing hook/drawbar: Full trailer connection, only provides traction, does not bear weight
Cabin: High floor (flat floor/raised floor), long-distance comfort type, double sleeper berth
Braking: Air brakes, ABS/ESC, trailer synchronized braking
II. Main Classifications (by Connection Method)
1. Semi-trailer Tractor (Mainstream)
Connection: Saddle connects the semi-trailer, sharing the load
Features: High load capacity, good stability, high speed and high efficiency
Applications: Trunk logistics, containers, general cargo, cold chain, hazardous chemicals (absolute mainstay of road freight)
Semi-trailer Tractor
2. Full Trailer Tractor
Connection: The tow hook connects the full trailer; it does not bear weight, only pulls.
Features: Flexible, can tow multiple trailers, short-distance transport.
Applications: Ports, factories, warehouses, short-haul transport, special heavy-duty transport.
3. In-plant/Industrial Tractor
Power: Electric/Internal Combustion
Features: Compact, low speed, high maneuverability, no cargo box.
Applications: Airport baggage, port containers, factory materials, warehouse short-haul transport.
4. Special Tractor
Heavy-duty transport tractor: 6×6, 8×8 all-wheel drive, towing equipment up to 100 tons.
Off-road/Military tractor: Extremely cold, muddy, off-road heavy-duty.
Special purpose tractor: Firefighting, rescue, obstacle clearing, oil fields.
III. Drive Type (Common)
4×2 (Dual Axle): High efficiency and fuel saving, mainstream for high-speed standard loads.
6×2 (Triple Axle): Lift axle, lightweight, heavy-duty.
6×4 (Triple Axle Dual Drive): Heavy-duty, mountainous, climbing, mainstay for cold chain transport.
8×4 / 6×6 / 8×8: Heavy-duty, Off-road, Special Purpose
IV. Core Advantages
Superior Transport Capacity: One trailer can carry 30-40 tons, doubling the efficiency of trailer swapping.
Flexible and Efficient: Detachable tractor and trailer, allowing for trailer swapping, trailer changing, and multi-task scheduling.
Optimal Cost: Fuel consumption/capacity ratio far superior to integrated trucks.
Versatile Applications: Covers long-distance/short-distance/urban/in-plant/special purpose applications.
Safe and Reliable: Reinforced chassis, professional braking, stable handling.
V. Mainstream Brands
Domestic: FAW J6/J7, Dongfeng Tianlong, Sinotruk Shandeka, Shaanxi Automobile Delong, Foton Auman
Imported: Volvo, Scania, Mercedes-Benz, MAN, Iveco
VI. Typical Application Scenarios
Highway Logistics: Containers, Express Delivery, General Cargo, Cold Chain, Hazardous Chemicals
Port Terminals: Container Trucking, Roll-on/Roll-off Operations
Construction Engineering: Engineering Machinery Transfer, Heavy Equipment, Building Material Transportation
Factory and Mining Warehousing: Material Handling, Production Line Transfer
Special Operations: Emergency Rescue, Military Transportation, Field Engineering

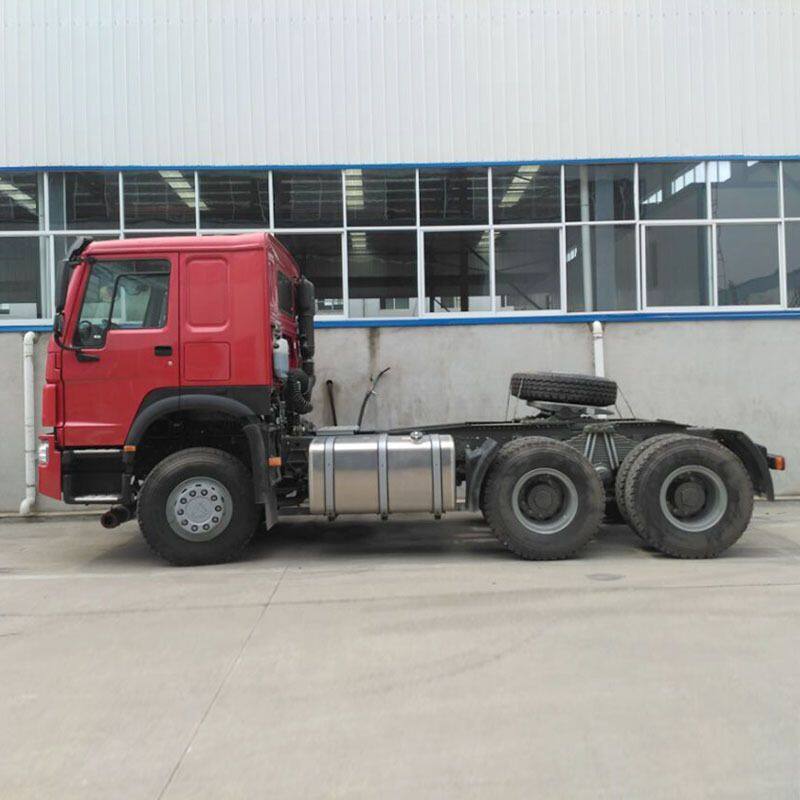

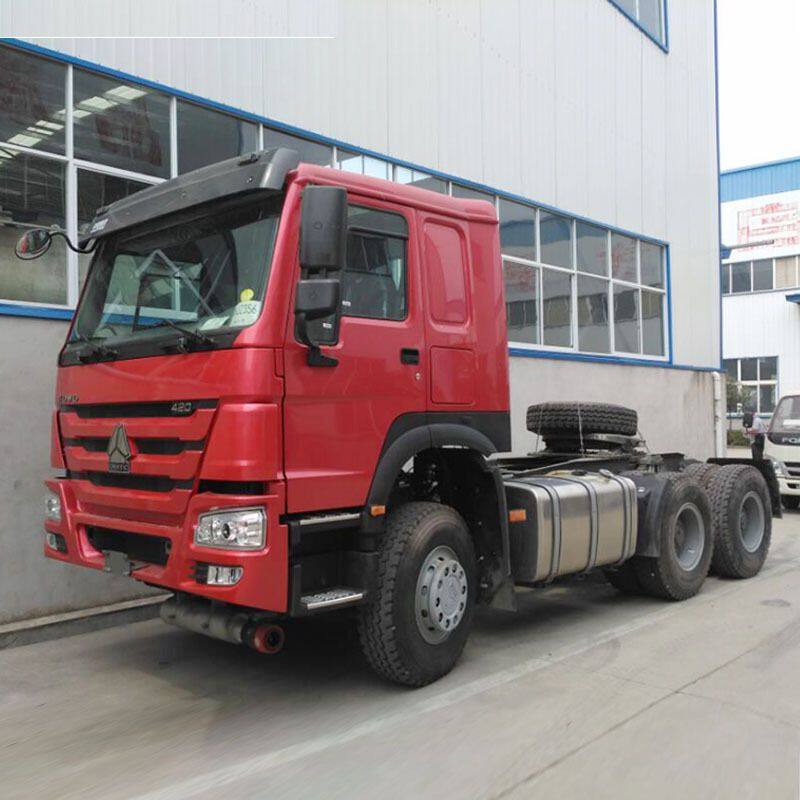

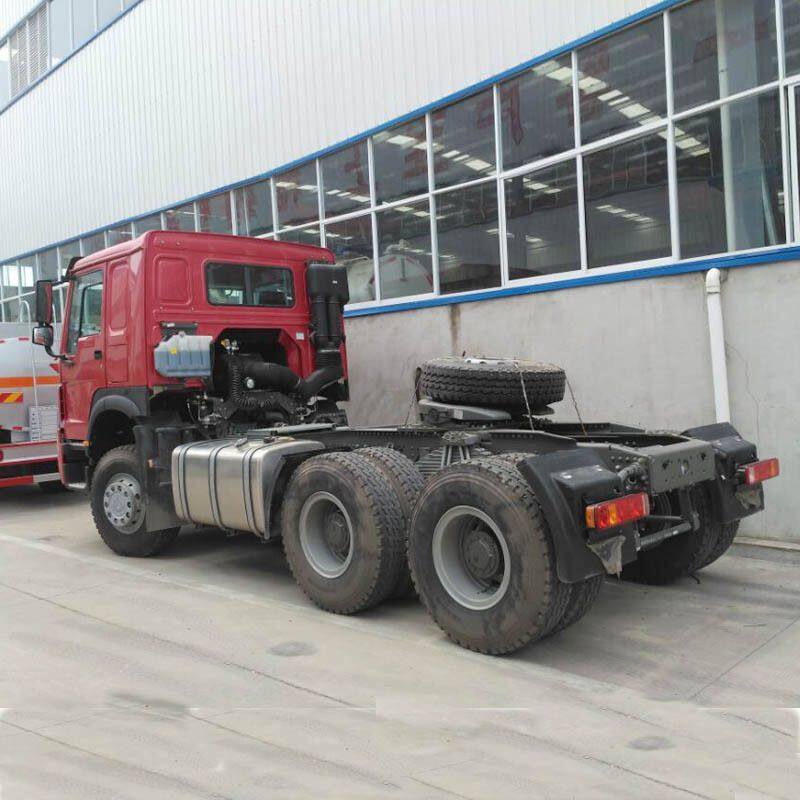

Vehicle parameters |
|
Chassis model |
ZZ4257V3241W |
Overall dimensions |
6850X2550X3100mm |
Front/rear wheel track |
2020/1830/1830mm |
Approach/departure angle |
16/70° |
Chassis Manufacturer |
CHINA NATIONAL HEAVY DUTY TRUCK GROUP CO.,LTD. |
Cab |
Configuration |
Color |
Red, other color is optional |
Engine |
Model |
Emission |
Euro2 |
Type |
6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, direct Injection , diesel engine |
Rated power |
420hp |
Manufacturer |
CHINA NATIONAL HEAVY DUTY TRUCK GROUP CO.,LTD. |
Tire |
Size |
Number |
10+1 nos |
Clutch |
Φ430 diaphragm clutch |
Fuel tank |
500+500L |
Front axle |
HF 9, drum type |
Rear axle |
HC16, drum type |
Drive form |
6X4 |
Suspension |
Leaf springs |
Rated voltage |
24V,DC |
Transmissions |
gearbox HW19710, 10 speed forward 2 reverse. |
Traction saddle |
Φ90 |
Steering device |
Power assisted steering, steering machine (ZF8198) |
Steering wheel |
Left hand drive |
Selective configuration |
Warning light is mounted on the top of the cab, protective cover for F/R lights, protective cover for oil tank,color and LOGO as required |
If there is a slight change in the chassis parameters above,please take the actual product as the standard |
MOQ,payment terms,delivery terms,price |
|
MOQ |
One unit |
Payment terms |
T/T 30% down payment, 70% balance after inspection before delivery |
Inspection |
Buyer's agent or third party inspection agency,the cost is paid by the buyer |
Delivery term |
30 working days from down payment |
Documentation |
Maintenance manual |
User manual |
|
Packing list |
|
Commercial invoice |
|
Certificate of origin is optional |
|
Spare parts list for purchase is optional |
|
Standard tools |
With standard tools for chassis |
Packing |
The main vehicle nude and covered with wax, waterproof cloth, attached parts and tools put into standard export box |
Other requirements |
Please fill in here |
CIF |
USD |
|
Because exchange rate and ocean freight may be changed in near future,so the price is only valid for 15 days. Please confirm the price again with our company before placing the order,thanks. |
