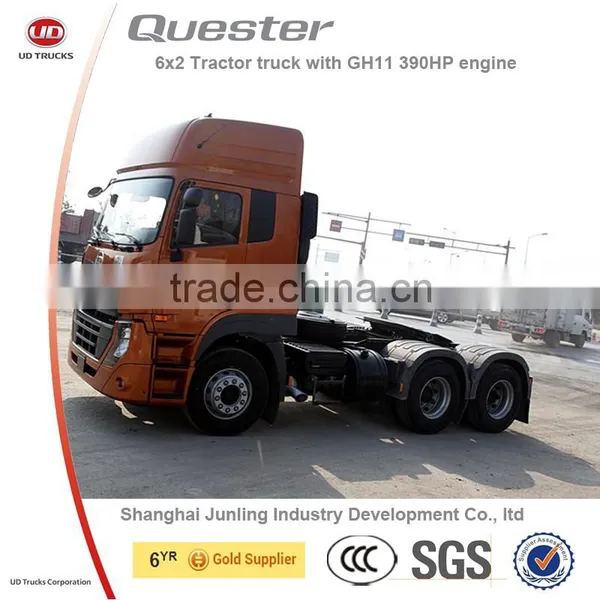

Help CenterUD Quester 6x4 Heavy Duty Tractor Truck Payload 50ton Dimension for Sale
Related Products
-
Nissan UD Quester 4x2 Tow Truck for Sale (Volvo Group) 40TON TOW TRUCKUS$ 65,000 - 80,000MOQ: 1 Unit -
Nissan UD Quester 50ton Heavy Duty Truck 6x4 Tractor Truck for Sale (Volvo Group)US$ 60,000 - 80,000MOQ: 1 Unit
-
2 Axles Wrecker Truck,light Duty Tow Truck,heavy Duty Wrecker Truck for SaleUS$ 30,000 - 60,000MOQ: 1 Unit
-
NQR 4x2 Flatbed Tow TruckUS$ 30,000 - 60,000MOQ: 1 Unit
-
2015 Best Selling 4X2 Chassis 5 Ton Tow Truck Flatbed WreckerUS$ 30,000 - 45,000MOQ: 1 Unit
UD TRUCK
1. Tractor heavy duty truck Specification
Basic information |
Type |
6×4 |
Length x Width x Height(mm) |
7035×2499×3730 |
|
Wheelbase(mm) |
3400+1370 |
|
Front overhang/Rear overhang(mm) |
1460/805 |
|
Top speed(km/h) |
109 |
|
GVW(kg) |
25000 |
|
Kerb Weight(kg) |
8805 |
|
Gross trailer weight(kg) |
40000 |
|
5th wheel payload (kg) |
16000 |
|
Approach/Departure angle(°) |
14/43 |
|
Cab |
Type |
Cab-over-engine, high roof , dual-bunk |
Passengers(person) |
3 |
|
Engine |
Model |
GH1B |
Manufacturer |
UD Trucks Corporation |
|
Displacement(L) |
10.837 |
|
Emission |
CN4 |
|
Type |
Inline 6 cylinders, 4 valves, hydro-cooling, turbo with inter-cooling |
|
Power rating(kw) |
294 |
|
Max net power(kw) |
293 |
|
Injection technology |
Electric unit injector with max injection pressure 200MPa |
|
After treatment |
SCR |
|
Clutch |
Type |
Single disc, dry, pull-type diaphragm clutch |
Disc diameter(mm) |
420 |
|
Gearbox |
Model |
F2R20A |
Type |
Mechanical, manual, 12 forward gears + 2 reverse gears |
|
Steering gearbox |
Type |
Recirculating ball type hydraulic power-assisted steering system |
Axle |
Load capacity(kg) |
Front: 8000/ Rear:26000(tandem) |
Rear axle ratio |
4.111 |
|
Frame |
Type |
One piece by roll forming |
Max section area(mm) |
300×90×(7+5,8+5) |
|
Suspension |
Type |
Front parabolic leaf, Rear multi leaf + T-ride, Front/Rear stabilizer |
Leaf Qty. |
3/9 |
|
Tyre |
Specification(either one) |
295/80R22.5-16PR |
315/80R22.5-16PR |
2. Tractor Heavy duty truck Introduction
Tractor heavy duty truck Roof hatchEmergency exit for any unexpected situations |
Multi view angle mirrorConsiderately designed Mirror combination ensures full view for the driver; electrical-heated mirror as optional effectively improves driving safety in severe weather. |
|
|
Tractor heavy duty truck Dashboard with delicate layoutWell laid out dashboard improves driving safety substantially with controllers and switches in arm reach; high luminance and high contrast display of 4.5 inch size provides with easily readable information
|
Tractor heavy duty truck gearbox cooling systemEquipped with transmission oil cooler for longer gearbox life |
Tractor heavy duty truck hub reduction axleFor heavy cargo transportation and poor working condition, hub reduction axle as optional.
|
1) Bulk ship and RORO ship
2)Container
1) Products Transportation
Our driver is professional trained to provide safe and fast transportation of trucks.
2) Customer clearance
Our team can provide customer clearance for all the trucks
3) Container Loading and fixing
Our company are professional exportor of all kinds of trucks, pickups and parts.
