Specifications
55W Polycrystalline olar Module/Panel1) Long life&High efficiency
2) Warranty:25 years
3) With CE,ROHS,ISO approval

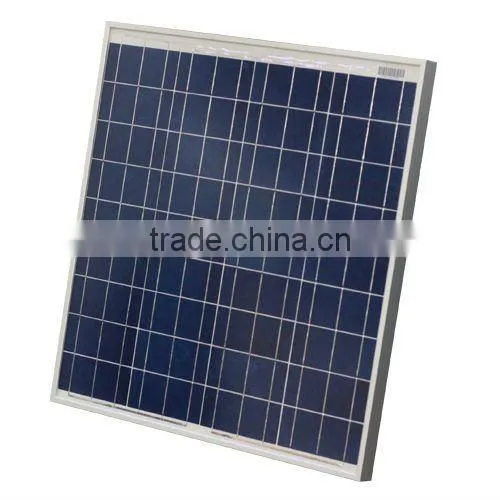

55W Polycrystalline Solar Module/Panel
APPLICATIONS
`Solar power stations
`Rural electrification, Small home power systems
`Power supply for traffic, security, gas industry
`12V and 24V battery charging system
`Other industrial and commercial applications
Detailed parameters
Model |
SNM-P55(36) |
Encapsulation |
Glass/EVA/Cells/EVA/TPT |
Nominal power Pm |
55W |
Power allowance |
±3% |
Open circuit voltage Voc(V) |
21.2 |
Short circuit current Isc(A) |
3.73 |
Max.power voltage Vmp(V) |
17.6 |
Max power current Imp(A) |
3.22 |
Practical module efficiencyHC(%) |
11.7 |
Dimension of module (mm) |
770*670*30 |
Net weight (kg) |
6 |
Packing (pcs/carton) |
2 |
Max system voltage (V) |
1000VDC |
Operate Temp Scope |
-40/+85% |
Resistance |
227g steel ball fall down from 1m height and 120m/s wind |
Warranty |
Pm is no less 90% in 10 years and no less 80% in 25 years |
STC |
Stardard Test Condition: Am 1.5 and 25°C |
