50W- Solar Cell Panel

US$ 85.2 - 89.9 MOQ: 20 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

NZX

Model Number:

NZX-50WP18V

Shenzhen Ningzexin Solar Electricity Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name NZX

Model Number NZX-50WP18V

Material Polycrystalline Silicon

Size 790*665*28mm

Number of Cells 36pcs

Max. Power 50W

Specifications

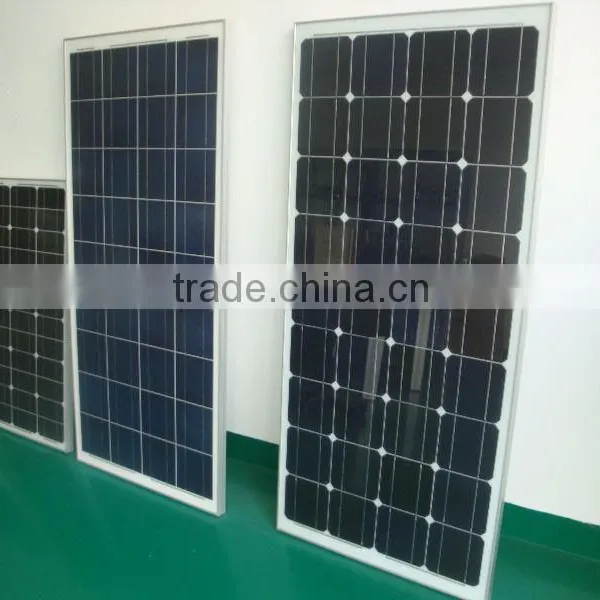

Solar cell panel
1,Certification:CE,TUV,ROHS
2,Polycrystalline and monocrystalline
3,High efficiency:17%

Solar cell panel

ITEM NO.:	NZX-50WP18V
Solar Cell:	156*156 Poly
Maximum Power(W)	50w
Optimum Power Voltage(Vmp)	17.5
Optimum Operatige Current(Imp)	2.9
Open Circuit Voltage(Voc)	21
Short Circuit Current(Isc)	3.2
Nmber of Cell(pcs)	4*9
Size of Module(mm)	79066528mm
Front Glass Thikness(mm)	3.2
Maxium System Voltage (V)	1000
Temperature Coefficients of Isc(%)	0.06+/-0.01%
Temperature Coefficients of Voc(%)	-2.23+/-0.1
Temperature Coefficients of Pm(%)	-0.5+-0.05
Temperature Coefficients of Im(%)	+0.10
Temperature Coefficients of Vm(%)	-0.38
Temperature Range	-40°C to +85°C
Tolerance Wattage(e.g.+/-5%)	±5%
Surface Maximum Load Capacity	2400Pa
Allowable Hail Load	23m/s ,7.53g
Weight Per Piece(KG)	6.5
Frame(Material Corners,etc.)	Anodized Aluminum Alloy
Backing (Brand Type)	TPT
Warranty	3 years for the whole product, for the power,90% for 10 years, 80% for 25 years
Standard Test Conditions	AM1.5 1000W/ 25 +/-2°C
FF (%)	75.5%
