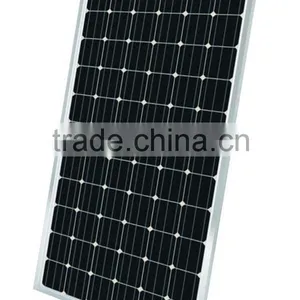

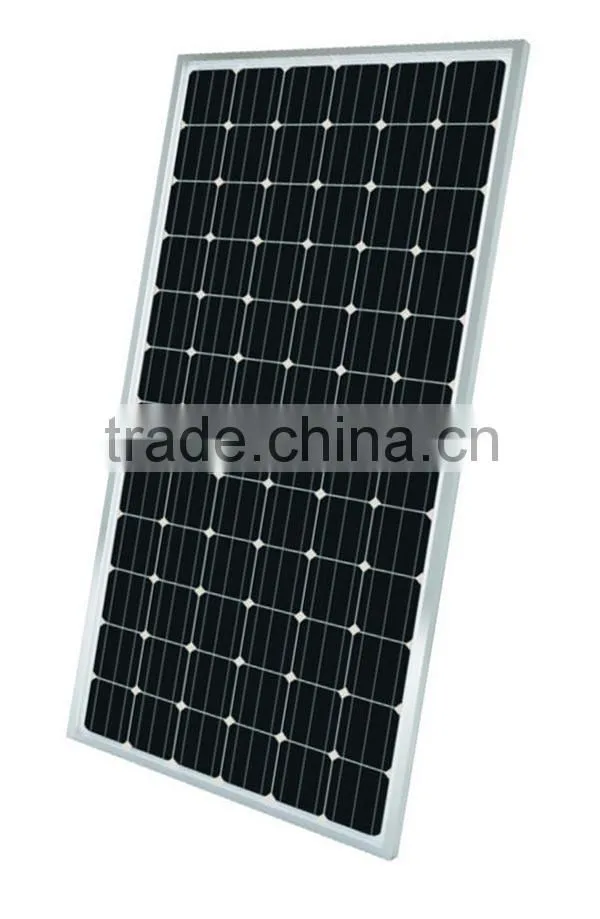

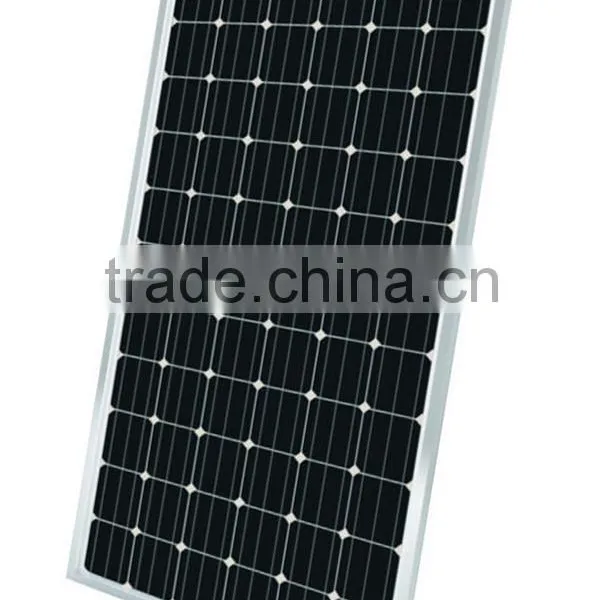

Price Per Watt Solar Panel

Price Per Watt Solar Panel photo-1
US$ 0.65 - 1.3 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
NZX
Model Number:
SPM
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name NZX
Model Number SPM
Material Monocrystalline Silicon
Size 1950*990*50mm
Number of Cells 72pcs
Max. Power 285W

Specifications

Price Per Watt Solar Panel
1,Certification:CE ,ISO 9000,ROHS
2,Power:240W to 285W
3,High efficiency:17%

Price Per Watt Solar Panel

Price Per Watt Solar Panel

Specifications



ITEM NO.:

SPM

Solar Cell: 156*156(mm)mono
Maximum Power(W) 240W to 285W
Optimum Power Voltage(Vmp) depends on the power
Optimum Operating Current(Imp) depends on the power
Open Circuit Voltage(Voc) depends on the power
Short Circuit Current(Isc) depends on the power
Nmber of Cell(pcs) 6*12
Size of Module(mm) 1950*990*50mm
Packing Configuration 2PCS/CTN,1980*1020*120mm
Front Glass Thikness(mm) 3.2
Maxium System Voltage (V) 1000
Maxium Series Fuse Rating(A) 15
Juction Box lp65 rated
Noct 48°C±2°C
Current Temperature Coefficient 0.06±0.01%/K
Voltage Temperature Coefficient -(78±10)MV/K
Power Temperature Coefficient -(0.5±0.05)%/K
Temperature Range  -40°C to +85°C
Tolerance Wattage(e.g.+/-5%) ±5%
Surface Maximum Load Capacity 2400Pa
Allowable Hail Load 23m/s ,7.53g
Weight Per Piece(KG) 26.5
Cell Efficiency >17%
Frame(Material Corners,etc.) Anodized Aluminum Alloy
Backing (Brand Type) TPT
Warranty 3 years for the whole product, for the power,90% for 10 years, 80% for 25 years
Standard Test Conditions AM1.5   1000W/  25 +/-2°C
FF (%) 78%
