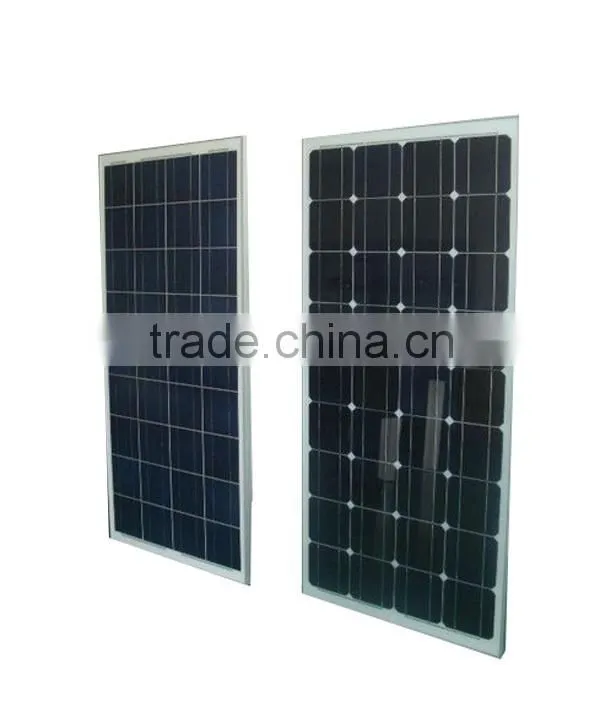

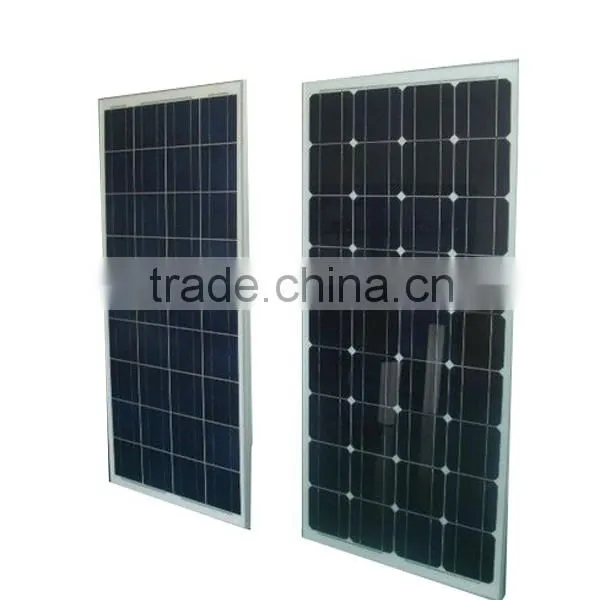

Help Center60W Solar Panels Mono
US$ 102 - 108
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
NZX
Model Number:
NZX-60WP18V
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1.3W Solar Panel MonoNegotiableMOQ: 500 Pieces -
50W- Solar Cell PanelUS$ 85.2 - 89.9MOQ: 20 Pieces
-
240W Mono Crystalline Silicon Solar PanelUS$ 1.2 - 1.35MOQ: 50 Pieces
-
China Wholesale Panels SolarUS$ 0.65 - 1.3MOQ: 100 Pieces
-
Price for Solar Panels From ManufacturerUS$ 0.65 - 1.3MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
NZX
Model Number
NZX-60WP18V
Material
Polycrystalline Silicon
Size
771*665*35mm
Number of Cells
36pcs
Max. Power
60W
Specifications
60W Solar Panels1,Certification:CE,TUV,ROHS
2,Polycrystalline silicon
3,High efficiency:17%
60W Solar Panels
| ITEM NO.: | NZX-60WP18V |
| Solar Cell: | 156*78 Poly |
| Maximum Power(W) | 60W |
| Optimum Power Voltage(Vmp) | 17.2 |
| Optimum Operatige Current(Imp) | 3.49 |
| Open Circuit Voltage(Voc) | 21.8 |
| Short Circuit Current(Isc) | 3.88 |
| Nmber of Cell(pcs) | 4*9 |
| Size of Module(mm) | 771*665*35 |
| Front Glass Thikness(mm) | 3.2 |
| Maxium System Voltage (V) | 1000 |
| Temperature Coefficients of Isc(%) | +0.10 |
| Temperature Coefficients of Voc(%) | -0.38 |
| Temperature Coefficients of Pm(%) | 0.047 |
| Temperature Coefficients of Im(%) | +0.10 |
| Temperature Coefficients of Vm(%) | -0.38 |
| Temperature Range | -40°C to +85°C |
| Tolerance Wattage(e.g.+/-5%) | ±5% |
| Surface Maximum Load Capacity | 2400Pa |
| Allowable Hail Load | 23m/s ,7.53g |
| Weight Per Piece(KG) | 6.8 |
| Frame(Material Corners,etc.) | Anodized Aluminum Alloy |
| Backing (Brand Type) | TPT |
| Warranty | 3 years for the whole product, for the power,90% for 10 years, 80% for 25 years |
| Standard Test Conditions | AM1.5 1000W/ 25 +/-2°C |
| FF (%) | 71% |
