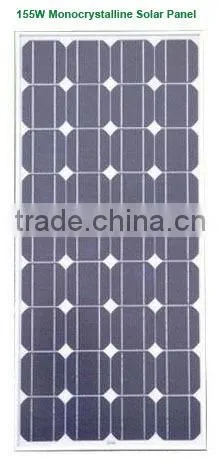

155W Monocrystalline Solar Panel

US$ 0.8 - 1.2 MOQ: 50 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

NZX

Model Number:

NZX-155WM36V

Shenzhen Ningzexin Solar Electricity Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name NZX

Model Number NZX-155WM36V

Material Monocrystalline Silicon

Size 1580*808*50mm

Number of Cells 36PCS

Max. Power 155W

Specifications

155W Monocrystalline Solar Panel
1,Certification:CE ,TUV,ISO 9000,ROHS
2,Power: 155W/36V
3,High efficiency:17%

155W Monocrystalline Solar Panel

ITEM NO.:	NZX-155WM36V
Solar Cell:	125*125 Mono
Maximum Power(W)	155W
Optimum Power Voltage(Vmp)	34.4
Optimum Operatige Current(Imp)	4.51
Open Circuit Voltage(Voc)	43.2
Short Circuit Current(Isc)	4.90
Nmber of Cell(pcs)	6*12
Size of Module(mm)	158080850mm
Front Glass Thikness(mm)	3.2
Maxium System Voltage (V)	1000
Temperature Coefficients of Isc(%)	0.06+/-0.01%
Temperature Coefficients of Voc(%)	-2.23+/-0.1
Temperature Coefficients of Pm(%)	-0.5+-0.05
Temperature Coefficients of Im(%)	+0.10
Temperature Coefficients of Vm(%)	-0.38
Temperature Range	-40°C to +85°C
Tolerance Wattage(e.g.+/-5%)	±5%
Surface Maximum Load Capacity	2400Pa
Allowable Hail Load	23m/s ,7.53g
Weight Per Piece(KG)	16.5
Cell Efficiency for 180W(%)	>17%
Frame(Material Corners,etc.)	Anodized Aluminum Alloy
Backing (Brand Type)	TPT
Warranty	3 years for the whole product, for the power,90% for 10 years, 80% for 25 years
Standard Test Conditions	AM1.5 1000W/ 25 +/-2°C
FF (%)	73%
