Light Weight Vertical Sand Mixer for Sale
Negotiable
/ Set
1 Set(Min. Order)
- Shanghai Tianjin Qingdao etc.
- T/T Credit Card
You May Like
-
Professional Manufacturers Mortar Mixture Machine for sale
-
Competitive Price Labour Pan Concrete Mixer for sale
-
Zhengzhou Low Price JW Series Pan Concrete Mixer Machine
-
Simple Structure Small Concrete Mixing Machine for Sale
-
Excellent Performance Mortar Production Equipment for Sale
-
Reasonable Structure Manual Pan Mixer with Simple Operation
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Model Number | JW250, JW350, JW500 | Mixing Power | 5.5-7.5 kw | |
| Reclaiming capacity | 250-500 L | Speed of Mixing Drum | 19-35 r/min | |
| Water Supply Mode | Manual, by labor | Working Cycle Period | 72 s | |
| Discharge Way | By rotating reversely | Outline Dimension | Vary according to different models | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Sand Mixer
JW Series
Product Description

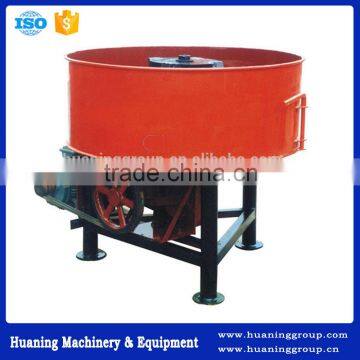

Pictures of Sand Mixer
Overview of Sand Mixer
- Sand Mixer (also called Vertical Concrete Mixer) is forced mixing machine and the mixing drum is driven by gear ring.
- It is frequently used to mix plastic, dry rigid concrete, fluid concrete, lightweight aggregate concrete and various mortar. It discharges concrete by rotating anticlockwise, while it mixes the materials by rotating clockwise.
- Main models of the Sand Mixer include: JW250,JW350,JW500, etc. JW mixer can also work together with the batching machine to form small and medium size concrete mixing plant.
Applications of Sand Mixer
- Highways, power station, dam construction, building sites, roads, bridge, water-power projects, large and middle prefabricated concrete mixing plants.
Features of Sand Mixer
- High productivity
- Final concrete is discharged rapidly and completely
- Easy maintenance, with attractive appearance
- Stable operation, low energy consumption
- Compact structure, reliable drive
- Light weight
Parameters
Parameters of Sand Mixer
Model | JW250 | JW350 | JW500 |
Discharge Capacity | 250L | 350L | 500L |
Rotation Speed (r/min) | 19 | 35 | 35 |
Power (KW) | 5.5 | 5.5 | 7.5 |
Overall Dimension (MM) (Diameter×Height) | Φ1000×1100 | Φ1200×1400 | Φ1500×1400 |
Details for Sand Mixer
Our Services
Company Information
- HenanHuaning Machinery & Equipment Co., Ltd is one of the large-scale enterprises of construction machinery. It is specialized in manufacturing and selling concrete equipment for more than 20 years. Up to now, we already have 14 experienced engineers and 180 staffs.
- All our products have passed ISO9001 International Quality System Certification and high product quality wins the trust from most customers.
- Our main products are: Concrete Mixing Plant (HZS25, HZS35, HZS50, HZS60, HZS75, HZS90, HZS120, HZS180); Concrete Mixer (JS Series, JDC Series, JZC Series, JZM Series, JW Pan Concrete Mixer, Diesel Engine Concrete Mixer); Concrete Batching Machine; Screw Conveyor; Cement Silo; JZ350 Mortar Mixer; etc.
Display of Our Main Products:
