Top Quality Small Appliance Push Button Micro Switch T85 5e4
- FOB HK Shenzhen Guangzhou
- Credit Card PayPal
You May Like
-
Wire Leads Waterproof IP67 10A 125VDC Micro Switch
-
Wire Leads Push Button Plastic Pin Plunger Mini Usa Waterproof Ip67 Vs10n051c2 Electric Micro Switch 25t85 Micro Switch
-
40t85 Waterproof V4ncs Button Electric Micro Switch With 0.1a 250v T85 5e4
-
Micro Push Button Micro Switch 25t85 Micro Switch (lxw-16a)
-
Plastic Pin Plunger Spdt Limit Momentary Miniature ul 0.1A Waterproof Micro Switch
-
IS9001 TS16949 Air Compressor Air Pressure Switch
Product Details
| Place of Origin | Guangdong, China | Brand Name | ZING EAR | |
| Model Number | G5W11-WZ200A01-W2 | Max. Current | 5A | |
| Max. Voltage | 48VDC,125/250VAC | Operating Temperature | 40T85 | |
| Protection Level | IP67 |
Product Description

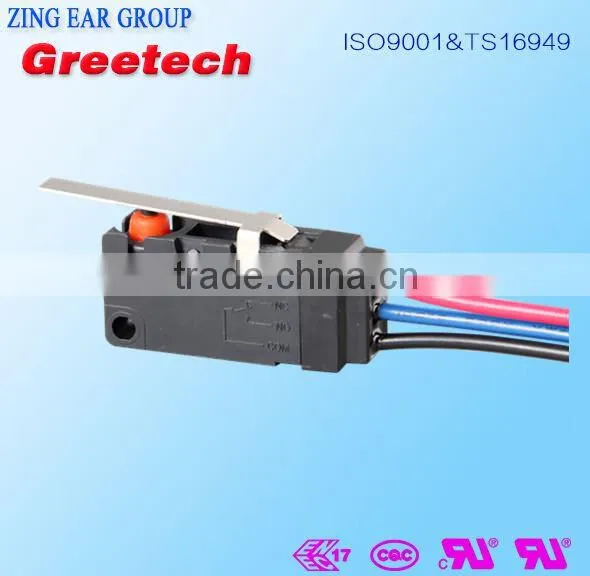

Top quality small appliance push button micro switch t85 5e4
Feature:
-Tight Configuration,Small Contact Gap , Snap Action
-Long Life, High Reliability
-Global Safety Approvals
-Variety of Terminals
-Wide Range Operating Force
-Wide Range Temperature Grade
-With Optional PTI Grade
-Variety Used in Home Applicances, Electronic Equipments, Automatic Machines,
Communication Equipments.
-Variety of Levers
Parameters:
| W1 | ENEC: 0.1A 48VDC, 0.1A 125/250VAC,40T85,5E4,u UL:0.1A 48VDC,0.1A 125/250VAC,T85 | |||||||||||
| W2 | ENEC: 5A 125/250VAC,5A, 30VDC,40T85,5E4, u UL:5A 125/250VAC,T85 | ||||||||||||
| W3 | ENEC:10(2)A 125/250VAC, 0.5A 125VDC, 0.25A 250VDC,40T85,u,2E4 UL:10.1A 1/10HP 125/250VAC,0.5A 125VDC, 0.25A 250VDC, T85 | ||||||||||||
| Operating Frequency |
| times/min | |||||||||||
| mechanical | times/min | ||||||||||||
| Contact Resistance(intial value) | with terminal | 50mΩMax | |||||||||||
| with wire | 100mΩ Max(Depends on the length of the wire) | ||||||||||||
| Insulation resistance | at 500VDC,100MΩ Min. | ||||||||||||
| Dielectric Strength | Between terminals | AC 1000V 50-60Hz 1min | |||||||||||
| Between terminals and housing | AC 1500V 50-60Hz 1min | ||||||||||||
| Storage Temperature |
| ||||||||||||
| Strorage Humidity | 85%RH Max | ||||||||||||
| Protection grade | With terminal | IEC IP67(Terminal not included) | |||||||||||
| With wire | IEC IP67 | ||||||||||||
| Electric-shock safeguard grade | Class I | ||||||||||||
| PTI | 250 | ||||||||||||
| Life | E-life | 2E4~10E4 cycles(depends on P/Ns) | |||||||||||
| M-life | over 1000,000cycles(60cycles/min) | ||||||||||||
| Weight | Approx.7g(with terminal and without lever) | ||||||||||||
Drawing:
More about packaging details:
No. | Greetech Product | Inner Box | Shipper Carton | MPQ | ||||||
Inner box size(mm) | Q'ty/(pcs) | Total GW(kgs) | Carton size(mm) | Q'ty/ctn | Total GW(kgs) | MOQ (pcs) | L/T (Days) | Total GW(kgs) | ||
1 | G3 series(terminal type) | 310x215x135 | 3,360 | 3.9 | 440x325x300 | 13,440 | 15.3 | 1,000 | 15 | 1.2 |
2 | G5 series | 310x250x120 | 600 | 5.5 | 330x270x270 | 1,200 | 10.8 | 1,000 | 15 | 9.0 |
3 | G5W11 series | 310x215x135 | 200 | 4.8 | 440x325x300 | 800 | 19.2 | 100 | 10 | 2.5 |
4 | G6 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
5 | G9 series(terminal type) | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
6 | G91 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
7 | G10 series | 290x192x40 | 600 | 1.3 | 400x305x220 | 6,000 | 12.5 | 1,000 | 15 | 2.7 |
8 | GT02 series | 210x155x55 | 300 | 1.2 | 440x325x285 | 6,000 | 12.0 | 6,000 | 15 | 12.0 |
9 | GPS100 series | / | / | / | 330*270*270 | 60 | 6.1 | 60 | 10 | 6.1 |
10 | Switch with wire leads | 310x215x135 | 100 | 1.8 | 440x325x300 | 800 | 14.5 | 800 | 20 | 14.5 |
shipping:
Greetech Advantages:
1. ISO9001 & TS16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents
6. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance
Trade Shows and Customer Visiting:
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
A : Normally, MOQ=100pcs.
Q3. What’s the warranty time?
A: 1 - 2 years.
Q4. Could you offer us free samples?
A) Yes, free samples could be provided within 2-5 days.
Q5, What ‘s the lead time of mass production?
A : About 2-4 weeks.
Q6. What’s the capacity per month?
A : Over 8 million pieces per month for micro switch series.
Over 20 million pieces per month for keyboard switch series,
Q7. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.
Q8 . Could you accept OEM or ODM ?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
