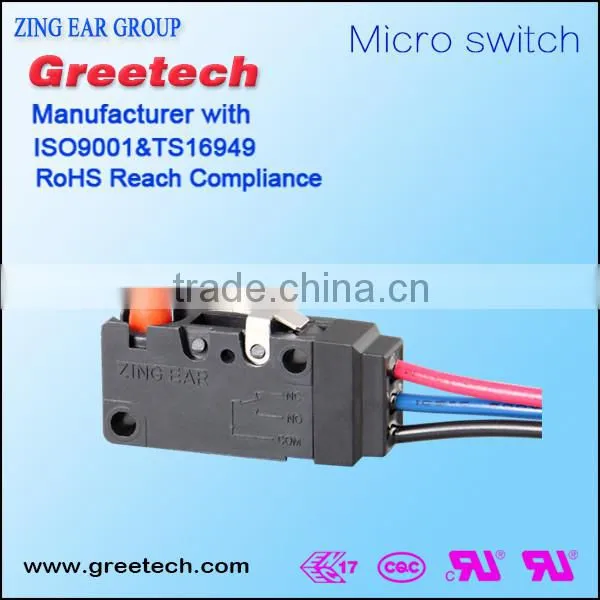

40t85 waterproof v4ncs button electric micro switch with 0.1a 250v t85 5e4

FOB Price

USD $1.03 - $1.76 / Piece

100 Pieces(Min.Order)

Supply Ability 3000000 Piece / Pieces per Month
Port Shenzhen Guangzhou HK
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Type:	Window Lifter Switch	Size:	Standard	Place of Origin:	Guangdong, China
Brand Name:	ZING EAR	Model Number:	G5W11-EZ015-W1	OE NO.:	None
Car Make:	all cars	Warranty:	1 Years

Product Description

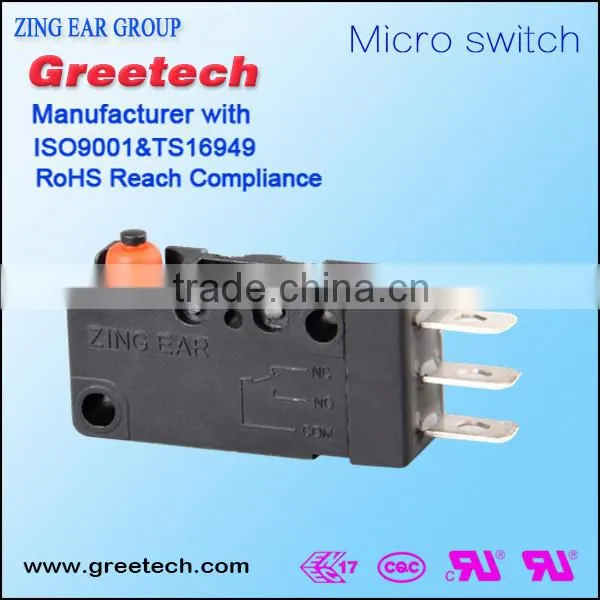

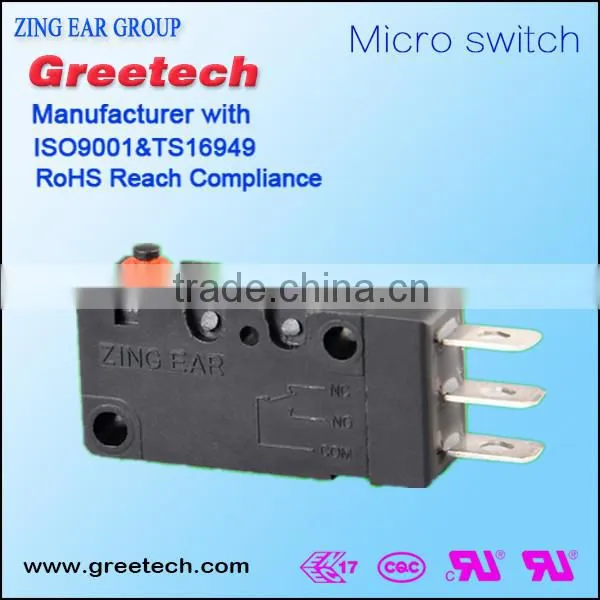

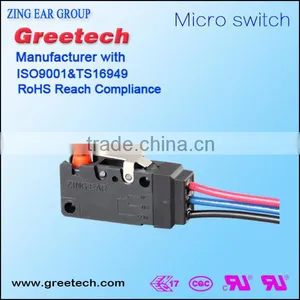

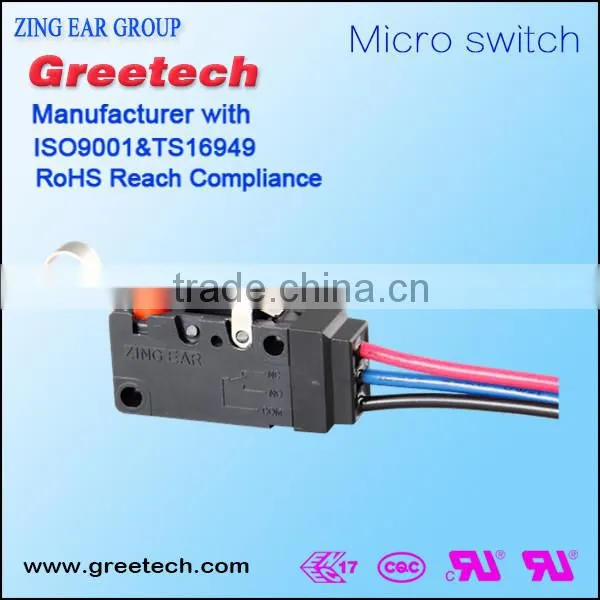

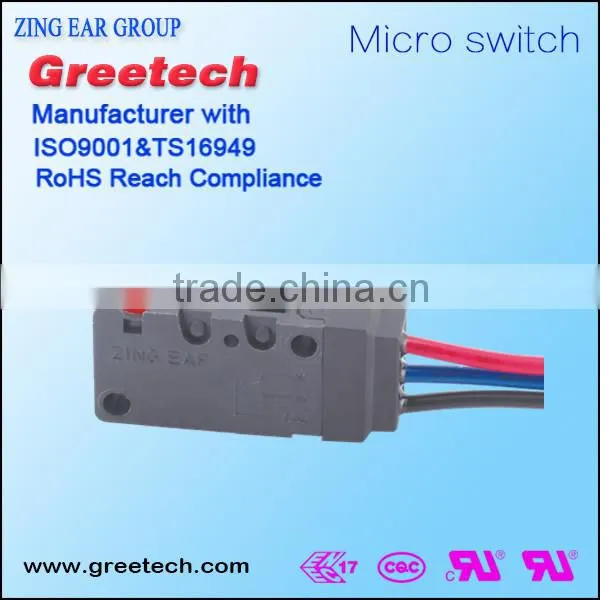

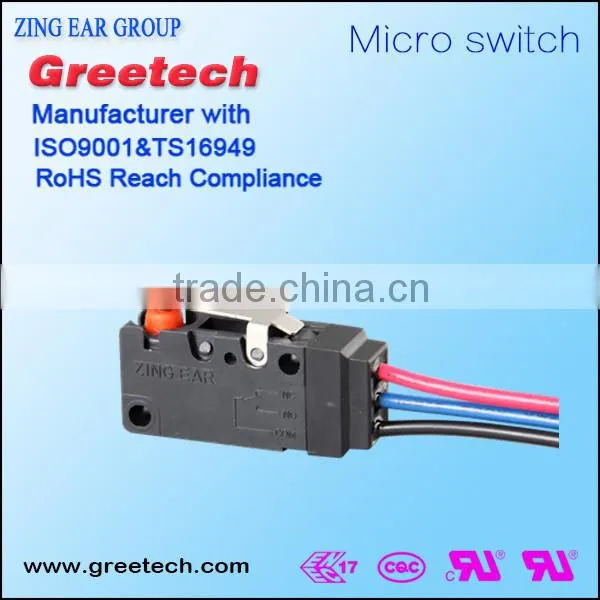

40t85 waterproof v4ncs button electric micro switch with 0.1a 250v t85 5e4

Product Description

Feature

-Designed for water and dust tight(IP67)

-Tight Structure, Small Contact Gap Snap Action, High Sensitivity

-Global safety approvals

-Long life and High Precision and Reliability

-Variety of levers

-Widely used in Automotive Electronics, Appliance and Industrial Control etc.

-Max Approved Current at ENEC/UL us 10A

Drawing

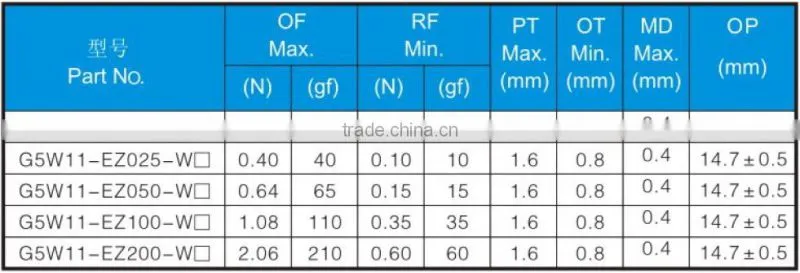

Operating Parameters

Parameters

Rating

ENEC: 0.1A 48VDC, 0.1A 125/250VAC,40T85,5E4,u UL:0.1A 48VDC,0.1A 125/250VAC,T85

ENEC: 5A 125/250VAC,5A, 30VDC,40T85,5E4, u UL:5A 125/250VAC,T85

ENEC:10(2)A 125/250VAC, 0.5A 125VDC, 0.25A 250VDC,40T85,u,2E4 UL:10.1A 1/10HP 125/250VAC,0.5A 125VDC, 0.25A 250VDC, T85

Operating Frequency

Electrical

10~30 times/min

Mechanical

times/min

Contact Resistance(intial value)

with terminal

50mΩMax

with wire

100mΩ Max(Depends on the length of the wire)

Insulation resistance

at 500VDC,100MΩ Min.

Dielectric Strength

Between terminals

AC 1000V 50-60Hz 1min

Between terminals and housing

AC 1500V 50-60Hz 1min

Storage Temperature

-40°C~+85°C

Strorage Humidity

85%RH Max

Protection grade

With terminal

IEC IP67(Terminal not included)

With wire

IEC IP67

Electric-shock safeguard grade

Class I

PTI

250

Life

E-life

2E4~10E4 cycles(depends on P/Ns)

M-life

over 1000,000cycles(60cycles/min)

Weight

Approx.7g(with terminal and without lever)

Application

-Elctronic Devices -Electric Tooth Brush

-Automatic Equipments -Auto Electronics

-Agriculture Equipments -Home Appliance

-Office Equipments

Company Information

Greetech Advantages:

1. ISO9001 & TS16949 qualified

2. Most products are produced & tested by automatics

3. Automatic machines are designed and assembled by our own team

4. Awarded as National Innovative Technology Company

5. Strong R&D team, authorized over 30 patents

6. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance

Certificates

Business partners

Trade Records

Exhibitions & Customer visiting

FAQ

Q1. Are you a trading company or manufacturer?

A: Yes. We are a manufacturer specializing in switches over 30 years.

Q2. What is your MOQ?

A : Normally, MOQ=100pcs.

Q3. What’s the warranty time?

A: 1 - 2 years.

Q4. Could you offer us free samples?

A: Yes, free samples could be provided within 2-5 days.

Q5. What ‘s the lead time of mass production?

A : About 2-4 weeks.

Q6. What’s the capacity per month?

A : Over 8 million pieces per month for micro switch series.

Over 20 million pieces per month for keyboard switch series.

Q7. Where is your plant?

A: Located in Huizhou city, Guangdong province, China.

About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.

Q8 . Could you accept OEM or ODM?

A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.

Contact Us

Huizhou Greetech Electronics Co., Ltd.: Contact nameMark Song; Phone86-752-5855486 - 8138; Address3rd Dist,Tashin Group,Chenjiang Town,Huicheng Zone,Huizhou City Huizhou,Guangdong

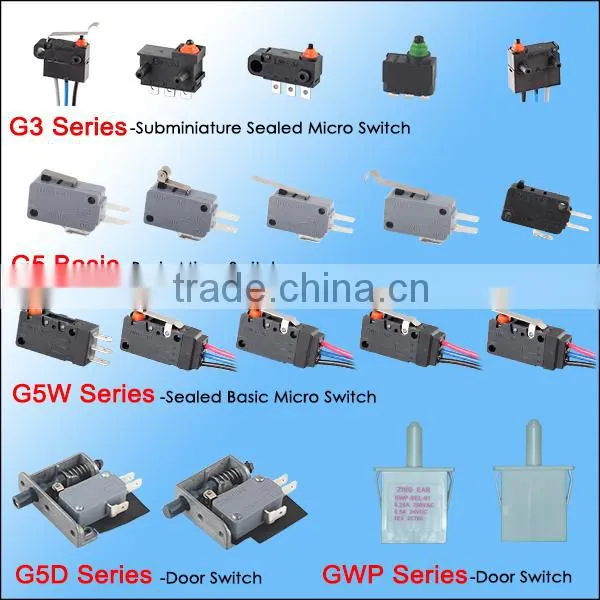

Product Categories

Detector Switch	Door Switch	Encoder	Limit Switch
Mechanical Keyboard Switch	Micro Switch	Mobilephone Connector	More Products
New Products	Pressure Switch	Rotary Switch	Slide Switch
Tact Switch

New Products

No.	Greetech Product	Inner Box			Shipper Carton			MPQ
		Inner box size(mm)	Q'ty/	Total GW(kgs)	Carton size(mm)	Q'ty/ctn	Total GW(kgs)	MOQ	L/T	Total GW(kgs)
		Inner box size(mm)	(pcs)	Total GW(kgs)	Carton size(mm)	(pcs)	Total GW(kgs)	(pcs)	(Days)	Total GW(kgs)
1	G3 series(terminal type)	310x215x135	3,360	3.9	440x325x300	13,440	15.3	1,000	15	1.2
2	G5 series	310x250x120	600	5.5	330x270x270	1,200	10.8	1,000	15	9
3	G5W11 series	310x215x135	200	4.8	440x325x300	800	19.2	100	10	2.5
4	G6 series	290x192x40	500	1.3	400x305x220	5,000	12.5	1,000	15	2.7
5	G9 series(terminal type)	290x192x40	500	1.3	400x305x220	5,000	12.5	1,000	15	2.7
6	G91 series	290x192x40	500	1.3	400x305x220	5,000	12.5	1,000	15	2.7
7	G10 series	290x192x40	600	1.3	400x305x220	6,000	12.5	1,000	15	2.7
8	GT02 series	210x155x55	300	1.2	440x325x285	6,000	12	6,000	15	12
9	GPS100 series	/	/	/	330270270	60	6.1	60	10	6.1
10	Switch with wire leads	310x215x135	100	1.8	440x325x300	800	14.5	800	20	14.5
