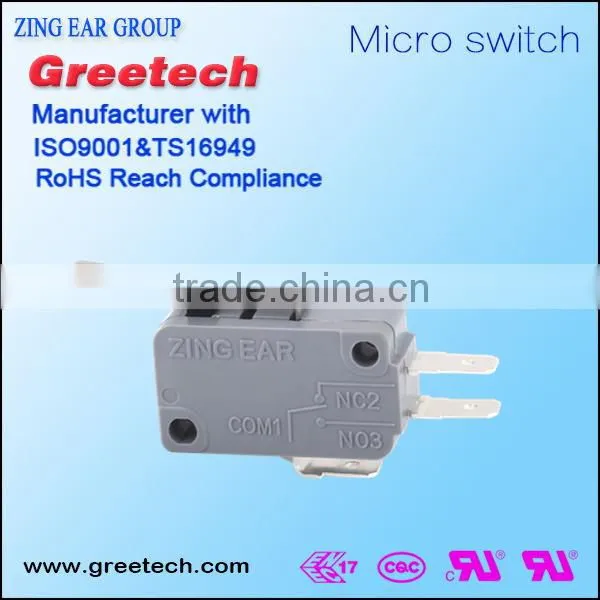

Electrical Sensitive Miniature Micro Switch 1a 5a 10a Tuv Ul Vde Enec
Feature
- Tight configuration , Small Contact Gap, Snap Action,High Sensitivity and Small Operating Travel
- Long Life , High Reliability
- Global Safety Approvals
- Variety of Terminals
- Wide Range Operating Force (7gf-600gf)
- Wide Range Temperature Grade( -40℃~150℃ ), 200℃ Optional
- With Optional PTI Grade (175v,250v,600v)
- Variety of Levers
- Widley Used in Home Appliances, Electronic Equipments
- Auto Electronics, Apparatus and Instrument ,Power Tool ect

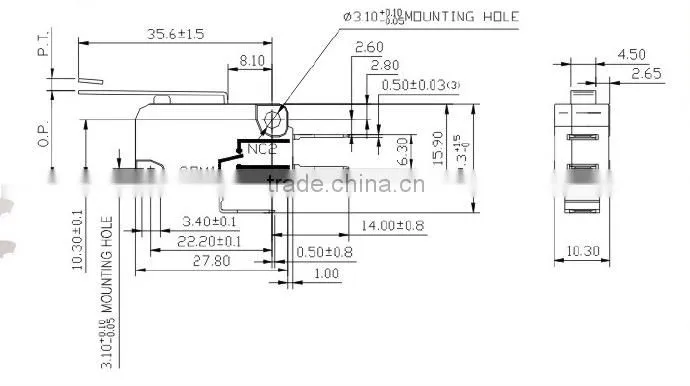

Drawing
Operating characteristic
| Rating | w1 |
ENEC 0.1A 48VDC,0.1A 125/250VAC,40T85,5E4,μ UL 0.1A 48VDC,0.1A 125/250VAC,T85 |
| W2 |
ENEC 5A 125/250VAC,5A,30VDC,40T85,5E4,μ UL 5A 125/250VAC,5A 30VDC T85 |
|
| W3 | ENEC 10(2)A 125/250VAC,0.5A 125VDC,0.25A 250VDC T85 | |
| Operating Frequency | Electrical | 10~30times/min |
| Mechanical | 60times/min | |
| Contect Resistance(Intal Value) | with terminal | 50mΩMax |
| with wire type | 100mΩMax | |
| Insulation Resistance | at500VDC,100MΩ Min | |
| Dielectric Strength | Between terminals | AC 1000V 50-60Hz 1min |
| Between terminals and housing | AC 1500V 50-60Hz 1min | |
| Storage Temperature |
-40°C~+85°C | |
| Storage Humidity | 85%RH Max | |
| Protection Grade | with terminal type | IEC IP 67(Exclude terminal) |
| with wire type | IEC IP 67 | |
| Electric-shock safeguard | Class ll | |
| PTI | 250 | |
| Life | E-life | 2E4~10E4 cycle (depends on P/Ns) |
| M-life | over 500,000 cycles or 1,000,000cycles(60cycles/min) | |
| Unit Net Weight | Approx.7g(with terminal type and without lever) | |
Application
| Car | Electric Tooth Brush |
| Air-Conditioner | Toys |
| Communication | Home Appliace , Motor Control |
Related products
Packing List
| o. | Greetech Product | Inner Box | Shipper Carton | MPQ | ||||||
| Inner box size(mm) | Q'ty/ | Total GW(kgs) | Carton size(mm) | Q'ty/ctn | Total GW(kgs) | MOQ | L/T | Total GW(kgs) | ||
| (pcs) | (pcs) | (pcs) | (Days) | |||||||
| 1 | G3 series(terminal type) | 310x215x135 | 3,360 | 3.9 | 440x325x300 | 13,440 | 15.3 | 1,000 | 15 | 1.2 |
| 2 | G5 series | 310x250x120 | 600 | 5.5 | 330x270x270 | 1,200 | 10.8 | 1,000 | 15 | 9 |
| 3 | G5W11 series | 310x215x135 | 200 | 4.8 | 440x325x300 | 800 | 19.2 | 100 | 10 | 2.5 |
| 4 | G6 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 5 | G9 series(terminal type) | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 6 | G91 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 7 | G10 series | 290x192x40 | 600 | 1.3 | 400x305x220 | 6,000 | 12.5 | 1,000 | 15 | 2.7 |
| 8 | GT02 series | 210x155x55 | 300 | 1.2 | 440x325x285 | 6,000 | 12 | 6,000 | 15 | 12 |
| 9 | GPS100 series | / | / | / | 330*270*270 | 60 | 6.1 | 60 | 10 | 6.1 |
| 10 | Switch with wire leads | 310x215x135 | 100 | 1.8 | 440x325x300 | 800 | 14.5 | 800 | 20 | 14.5 |
Shipping
1. ISO9001 & TS16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents
6. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance
Certification
Business Partner
Trade Record
Exhibition and Customer Visiting
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
A : Normally, MOQ=100pcs.
Q3. What’s the warranty time?
A: 1 - 2 years.
Q4. Could you offer us free samples?
A:Yes, free samples could be provided within 2-5 days.
Q5.What ‘s the lead time of mass production?
A : About 2-4 weeks.
Q6. What’s the capacity per month?
A : Over 8 million pieces per month for micro switch series.
Over 20 million pieces per month for keyboard switch series.
Q7. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.
Q8 . Could you accept OEM or ODM ?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
