Huizhou Greetech Electronics Co., Ltd.: Huizhou, Guangdong, China; Main products: Micro switches, Air pressure switches, Keyboard switches, Limit switches, Waterproof switches

Home > Products > More Products > Trigger Micro Switch KW7-03-2

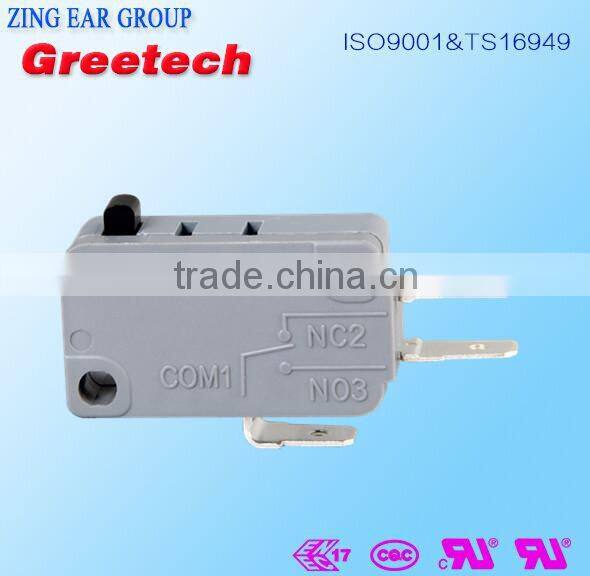

Trigger Micro Switch KW7-03-2

FOB Price

US$ 0.14 - 0.48 / Piece

1000 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Product Description

Feature:

-Tight Configuration,Small Contact Gap , Snap Action

-Long Life, High Reliability

-Global Safety Approvals

-Variety of Terminals

-Wide Range Operating Force

-Wide Range Temperature Grade

-With Optional PTI Grade

-Variety Used in Home Applicances, Electronic Equipments, Automatic Machines,

Communication Equipments.

-Variety of Levers

Parameters:

Operating Speed		0.1mm-1m/s( Related with actuator forms)
Operating Frequency		Mechanical 60 cycles/min; Electrical 15 cycles/min.
Insulation Resistance		≥100MΩ (500VDC)
Contact Resistance		≤100MΩ (Initial value)
Test Voltage	Between each terminals of the same polarity	AC1000V,50/60HZ, 1min.
	Between current-carrying metal part and ground.and between each terminal and non-current-carring metal parts	AC1500V, 50/60HZ, 1min.
Vibration Resistance		10-55HZ, 1.5mm Double amplitude
Shock Resistance		Destruction: OF>0.5N:1000m/s2 (approx.100G)max.
		Destruction:OF>0.5N:200m/s2 (approx.20G)max.
Serivece Life		Mechanical ≥ 10,000,000cycles or 1,000,000cycles
		Electrical ≥ 50,000cycles or 100,000cycles
Weight		Approx. 6.2g(No lever).
Trade Terms		1.The price is based on FOB Shenzhen or Hongkong or EXW factory 2.MOQ:5000pcs Payment:T/T payment,50% deposit before production, balance 50% before shipment
Certificates		ISO9001&TS16949 ENEC UL CUL &CQC RoHS & Reach

Drawing:

Operating Charateristics:
