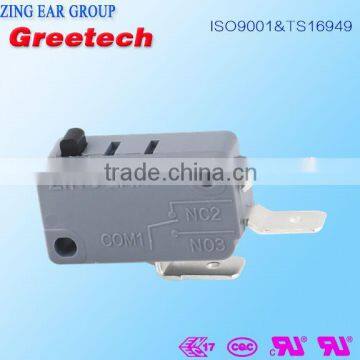

16a Push Button Micro Switch On Off Rohs Compliance Spdt With Short Roller Lever
- 5000000 Piece / Pieces per Month
- SHENZHEN HK
- Credit Card
-
High lifespan KW2-3 series KW2-3-02P-30-5 micro switch long handle small micro action
-
Limit Switches Professional Customised Source Factory Silver Contact Quick Switch for Rail Transportation
-
Travel Limit Switches Manufacturers Direct Sales Self-cleaning contacts Micro Switches for Automation Control
-
Micro Switch Waterproof Strength Factory Professional Customised Micro Switch Waterproof for Rail Switches
-
LXC micro switch high-voltage switch is suitable for high-speed rail transit travel switch circuit breakers
-
Magnetic blow micro switch high voltage switch for railroad transportation pure silver contact PC housing
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | ZING EAR ( micro switch 220v) | Model Number: | G5T22-C1Z400 |
| Max. Current: | 16A | Max. Voltage: | 1000VAC | Operating Temperature: | -25℃~125℃ |
| Protection Level: | IP00 |
Product Description
16a Push Button Micro Switch On Off Rohs Compliance Spdt With Short Roller Lever
Drawing:
Operating Characteristics:
Parameters:
| Rating | 08 | ENEC/CQC:8(10)A 250VAC,5E4,25T125 UL/CUL:10.1A 1/2HP 250VAC |
| 16 | ENEC/CQC:16(4)A 250VAC 5E4 UL/CUL:16A 1/2HP 125/250VAC | |
| 22 | ENEC :16(13)A 250VAC 5E4 22(8)A250VAC 1E4 CQC:22(8)A 250VAC 1E4 UL/CUL :22A 1HP 125/250VAC | |
| 05 | ENEC/CQC;0.1A 48VDC 0.1A125/250VAC 5(2.5)A UL/CUL:0.1A 48VDC 0.1A125/250VAC 5A 1/10HP 125/250VAC | |
| 10 | ENEC :10(3)A 125/250 VAC ,0.5A 125VDC 0.25A 250VDC 25T125 5E4 UL/CUL;11A 1/3HP 125/250VAC 0.5A 125VDC 0.25A 250VDC 4A 125VAC L | |
| Operating Frequency | Electrical | 10-~30 cycles/minute |
| Mechanical | 120 cycles/minute | |
| Contact Resitance | 100MΩ Max | |
| Insulation Resistance ( at 500VDC) | 100MΩ Min | |
| Dielectric Strength | AC 1,000V RMS (50~60Hz) | |
| Storage Temperature | (-40°C~ +125°C/85°C) | |
| Storage Humidity | 85% RH max | |
| Service Life | Electrical | 10,000~100,000cycles (Depend on part number) |
| Mechanical | 1,000,000cycles | |
Basic package information:
Ship way:
Greetech advantage:
1. ISO9001 & TS16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents
6. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance
Certificates:
FAQ
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
A : Normally, MOQ=100pcs.
Q3. What’s the warranty time?
A: 1 - 2 years.
Q4. Could you offer us free samples?
A) Yes, free samples could be provided within 2-5 days.
Q5, What ‘s the lead time of mass production?
A : About 2-4 weeks.
Q6. What’s the capacity per month?
A : Over 8 million pieces per month for micro switch series.
Over 20 million pieces per month for keyboard switch series,
Q7. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.
Q8 . Could you accept OEM or ODM ?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
