High Automation JS750 Mixer for Cement Sand Concrete

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Model Number	JS750	Mixing Power	30 kw
Charging Capacity	1200 L	Reclaiming capacity	750 L
Speed of Mixing Drum	29.6 r/min	Water Supply Mode	Water pump
Working Cycle Period	72 s	Discharge Way	Pneumatic or hydraulic discharge
Outline Dimension	3110x2620x2580 mm	After-sales Service Provided	Engineers available to service machinery overseas

JS750 Mixer

JS Series

Product Description

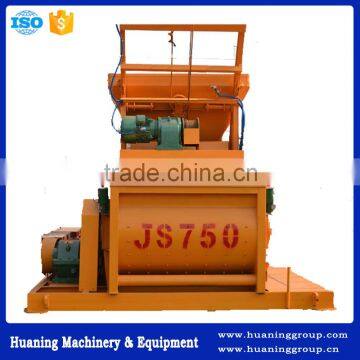

Overview of JS750 Mixer

JS750 Mixer is the twin-shaft forced mixing machine and generally used to mix dry rigid concrete, plastic concrete, fluid concrete, lightweight aggregate concrete and various mortar.
It not only can work independently but also can work together with PLD series concrete batching machine to form simple concrete mixing plant.
Besides, it also acts as the main machine for the corresponding mixing plant.
This efficient machine is widely applied in all kinds of large, middle, and prefabricated concrete plants, highways, bridge project, water conservancy, wharf, etc. It can work together with the tilting cart.

Features of JS750 Mixer

Parameters

Parameters of JS750 Mixer

Type		JS500	JS750	JS1000A	JS1000B	JS1500A
Discharge Capacity (L)		500	750	1000	1000	1500
Feed Capacity (L)		800	1200	1600	1600	2400
Productivity (m³/h)		≥25	≥35	≥50	≥60	≥75
Max. Aggregate Size: Pebble/Gravel (mm)		≤40/50	≤40/60	≤60/80	≤60/80	≤60/80
Work Cycle Time (s)		72	72	60	60	60
Mixing Blades	Speed (r/min)	31	29.6	26	26	24.5
Mixing Blades	Quantity	2×7	2×7	2×7	2×7	2×7
Mixing Motor (kw)		18.5	30	37	2×18.5	2x22
Winch Motor (kw)		5.5	7.5	7.5	13	15
Pump Motor (kw)		1.1	1.5	3	3	3
Dimensions (L × W × H)		2900×2530×2680	3110×2620×2580	4320×2200×3300	2800× 2200 ×2000	4720×2200×3000
Total weight(kg)		4000	5500	8700	6000	11130
