Simple Structure Durable Self Loading Mortar Mixers With Competitive Price

Simple Structure Durable Self Loading Mortar Mixers With Competitive Price photo-1
Simple Structure Durable Self Loading Mortar Mixers With Competitive Price photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Model Number:
JZC Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Qingdao etc.
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Model Number JZC Series
Mixing Power 4-15 kw
Charging Capacity 480-1200 L
Reclaiming capacity 300-750 L
Speed of Mixing Drum 13-17 r/min
Water Supply Mode Water pump
Working Cycle Period 72 s
Discharge Way By rotating reversely
Outline Dimension vary according to different models
After-sales Service Provided Engineers available to service machinery overseas

Simple Structure Durable Self Loading Mortar Mixers with Competitive Price

Simple Structure Durable Self Loading Mortar Mixers with Competitive Price

Product Description

Brief Introduction of Durable Self Loading Mortar Mixers with Competitive Price

  1. Durable Self Loading Mortar Mixers is a self-falling concrete mixing machine, discharging with the double wimble rotating reversely. It mixes the material by rotating positively, and discharges by rotating reversely.
  2. It can mix plastic, semi-rigid, fluid and lightweight aggregate concrete and particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.



Features of Simple Structure Durable Self Loading Mortar Mixers with Competitive Price

  1. Convenient to move, User friendly design
  2. Low energy consumption.
  3. Long service life of blades and scaleboard
  4. Easy to operate and maintain

Simple Structure Durable Self Loading Mortar Mixers with Competitive Price

Simple Structure Durable Self Loading Mortar Mixers with Competitive Price

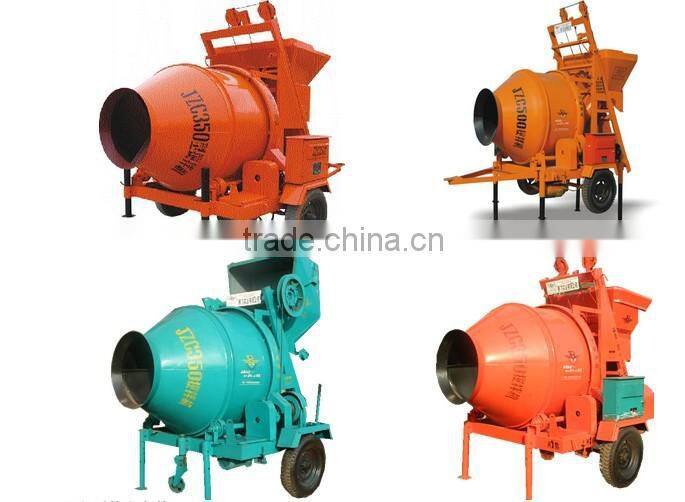

Two Types of  Simple Structure Durable Self Loading Mortar Mixers with Competitive Price

(1) Self Loading Mortar Mixer with Wire Rope Hopper



 Simple Structure Durable Self Loading Mortar Mixers with Competitive Price



(2) Self Loading Mortar Mixer with Lifting Hopper


Simple Structure Durable Self Loading Mortar Mixers with Competitive Price


Parameters

Specifications of Self Loading Mortar Mixer

Models

JZC300

JZC350

JZC500

JZC750

Working Performances

Discharge Capacity (L)

300

350

500

750

Feeding Capacity (L)

480

560

800

1200

Productivity (m3/h)

6-8

10-14

20-25

25-30

Rotation Speed (r/min)

17

14

13

13

Max. Aggregate Size

60 mm

60 mm

60-80 mm

60-80 mm

Water Precision

Error≤2%

Error≤2%

Error≤2%

Error≤2%

Motors

Mixing Motor (kw)

4

5.5

11

15

Lifting Motor (kw)

4

4.5

7.5

7.5

Pump Motor (kw)

0.55

0.75

1.1

1.1

Max. Towing Speed (km/h)

20

20

20

--

Tire Size

6.50-16

6.50-16

7.50-16

--

Dimensions (mm)

2260×1990×2750

2766×2140×3000

5520×2300×5800

6116×2056×6060

Weight (kg)

1300

1950

4000

4200
