Automatic Compulsory Double Shaft Concrete Mixer China for Sale

Henan Huaning Machinery Equipment Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Henan, China

Model Number:

JS1000

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Tianjin Qingdao etc.

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Henan, China

Model Number JS1000

Mixing Power 2x18.5 kw

Charging Capacity 1600 L

Reclaiming capacity 1000 L

Speed of Mixing Drum 26 r/min

Water Supply Mode Water pump

Working Cycle Period 60 s

Discharge Way Pneumatic or hydraulic discharge

Outline Dimension 2800x2200x2000 mm

After-sales Service Provided Engineers available to service machinery overseas

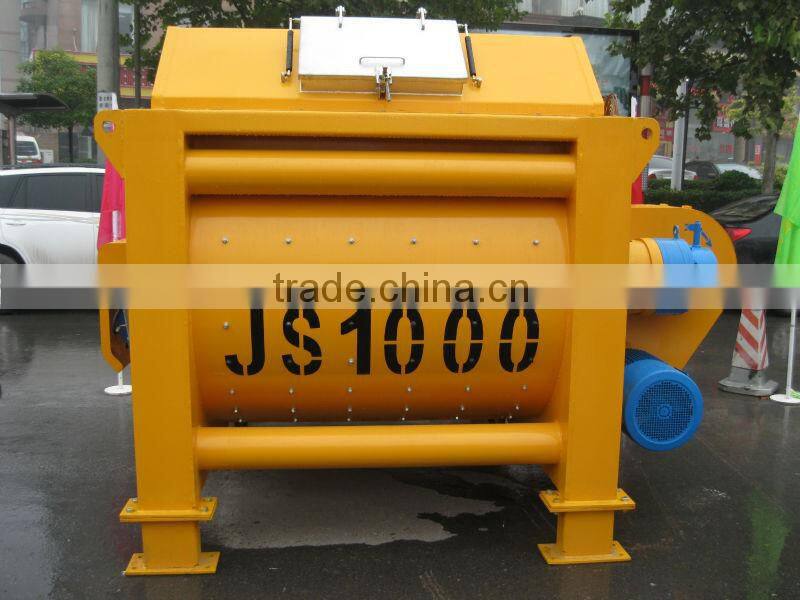

Automatic Compulsory Double Shaft Concrete Mixer China

Product Description

Overview of Automatic Compulsory Double Shaft Concrete Mixer China for sale

Double Shaft Concrete Mixer China is the forced mixing machine and generally used to mix dry rigid concrete, plastic concrete, fluid concrete, lightweight aggregate concrete and various mortar.
It not only can work independently but also can work together with PLD series concrete batching machine to form simple concrete mixing plant.
Besides, it also acts as the main machine for the corresponding mixing plant.
This efficient machine is widely applied in all kinds of large, middle, and prefabricated concrete plants, highways, bridge project, water conservancy, wharf, etc. It can work together with the tilting cart.

Features of Double Shaft Concrete Mixer China

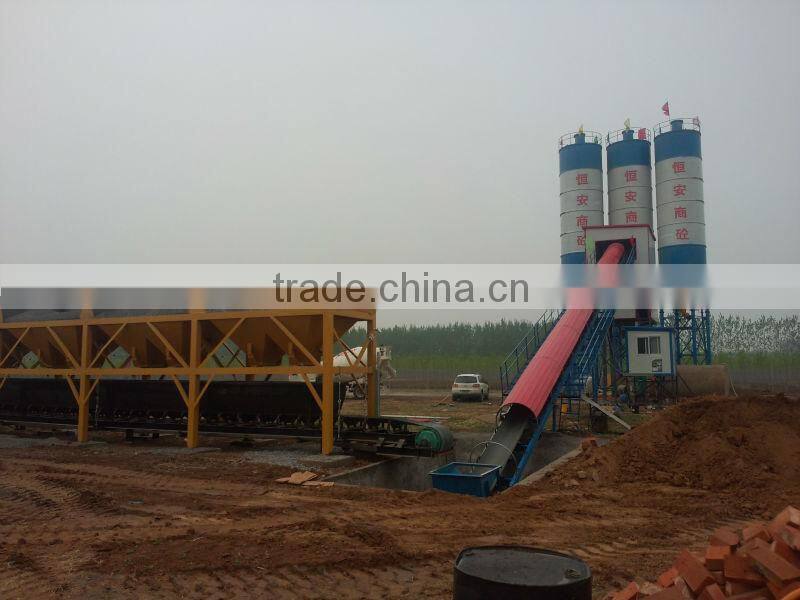

Worksite in Concrete Batching Plant:

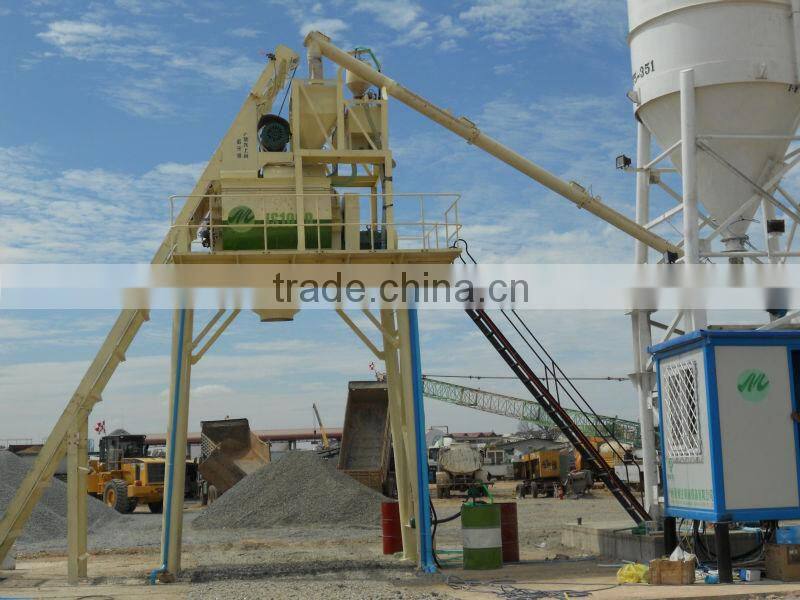

Double Shaft Concrete Mixer China with belt conveyor

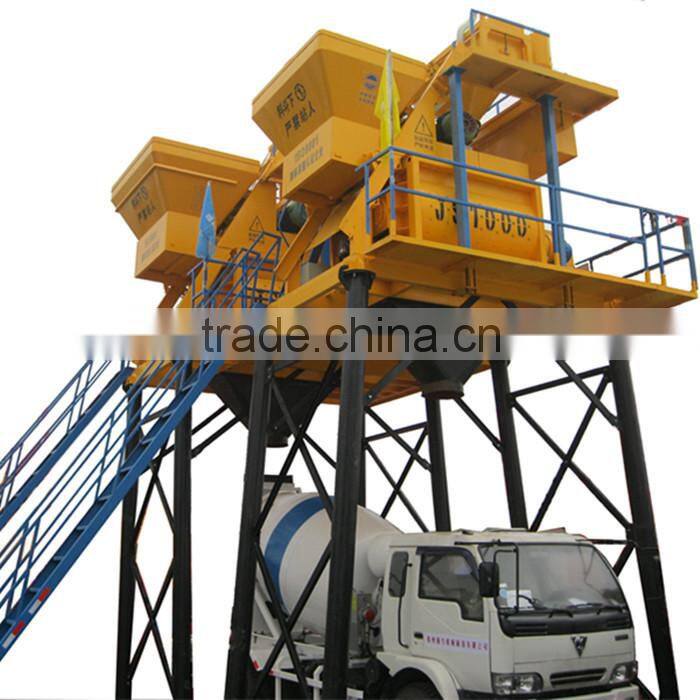

Double Shaft Concrete Mixer with lift

Parameters of Double Shaft Concrete Mixer China

Type		JS500	JS750	JS1000A	JS1000B	JS1500A
Discharge Capacity (L)		500	750	1000	1000	1500
Feed Capacity (L)		800	1200	1600	1600	2400
Productivity (m³/h)		≥25	≥35	≥50	≥60	≥75
Max. Aggregate Size: Pebble/Gravel (mm)		≤40/50	≤40/60	≤60/80	≤60/80	≤60/80
Work Cycle Time (s)		72	72	60	60	60
Mixing Blades	Speed (r/min)	31	29.6	26	26	24.5
Mixing Blades	Quantity	2×7	2×7	2×7	2×7	2×7
Mixing Motor (kw)		18.5	30	37	2×18.5	2x22
Winch Motor (kw)		5.5	7.5	7.5	13	15
Pump Motor (kw)		1.1	1.5	3	3	3
Dimensions (L × W × H)		2900×2530×2680	3110×2620×2580	4320×2200×3300	2800× 2200 ×2000	4720×2200×3000
Total weight(kg)		4000	5500	8700	6000	11130
