Electric Automatic Double Shaft Concrete Agitator for Sale

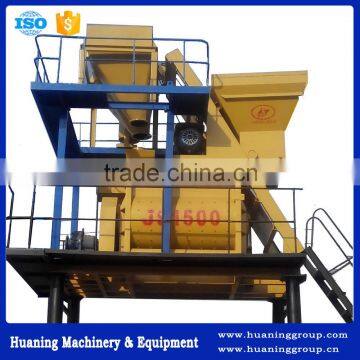

Electric Automatic Double Shaft Concrete Agitator for Sale photo-1

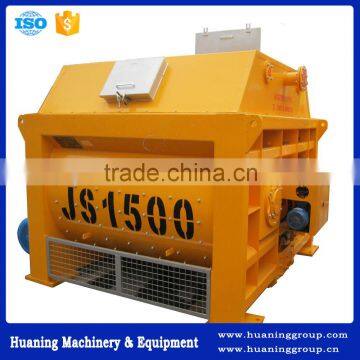

Electric Automatic Double Shaft Concrete Agitator for Sale photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Model Number:
JS1500B
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Qingdao etc.
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Model Number JS1500B
Mixing Power 2x30 kw
Charging Capacity 2400 L
Reclaiming capacity 1500 L
Speed of Mixing Drum 24.5 r/min
Water Supply Mode Water pump
Working Cycle Period 60 s
Discharge Way Pneumatic or hydraulic discharge
Outline Dimension 3000x2400x2074 mm
After-sales Service Provided Engineers available to service machinery overseas



Product Description

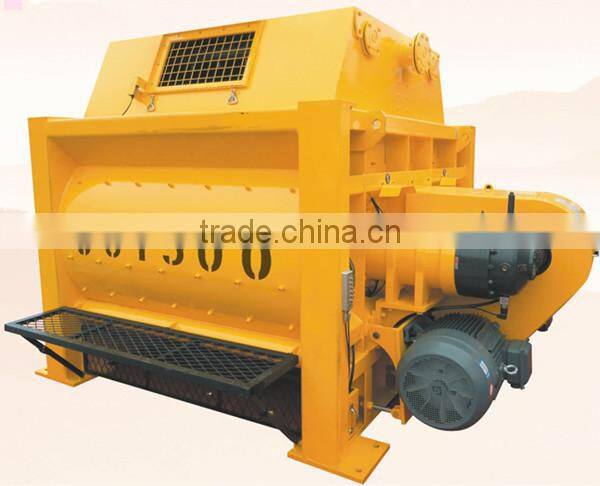

Electric Automatic Double Shaft Concrete Agitator for sale

Electric Automatic Double Shaft Concrete Agitator for saleElectric Automatic Double Shaft Concrete Agitator for sale





Overview of Electric Automatic Double Shaft Concrete Agitator for sale

  • JS 1500L Concrete Agitator is the twin-shaft forced mixing machine and generally used to mix dry rigid concrete, plastic concrete, fluid concrete, lightweight aggregate concrete and various mortar.
  • The 1500L Concrete Mixer Machine not only can work independently but also can work together with PLD series concrete batching machine to form simple concrete mixing plant.
  • Besides, it also acts as the main machine for the corresponding mixing plant.
  • This efficient machine is widely applied in all kinds of large, middle, and prefabricated concrete plants, highways, bridge project, water conservancy, wharf, etc. It can work together with the tilting cart.



Features of  Concrete Agitator

  • High automation degree; high mixing quality
  • Pneumatic or hydraulic discharge
  • High discharging speed
  • Longer service life of scaleboard and blades
  • Low noise; low consumption; simple operation

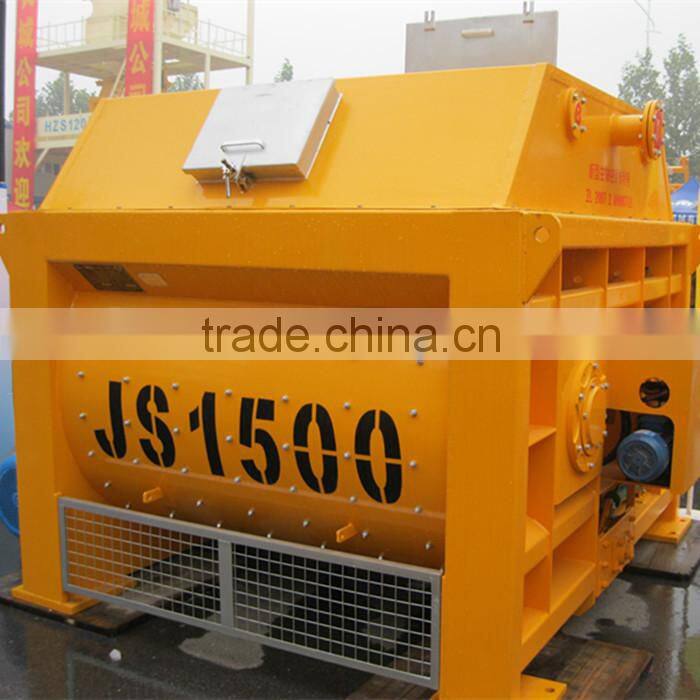

Electric Automatic Double Shaft Concrete Agitator for sale





Parameters

Parameters of Concrete Agitator

Type

JS1500A

JS1500B

JS2000

JS3000

Discharge Capacity (L)

1500

1500

2000

3000

Feed Capacity (L)

2400

2400

3200

4800

Productivity (m3/h)

≥75

≥90

≥120

≥180

Max. Aggregate Size: Pebble/Gravel (mm)

≤60/80

≤80/100

≤80/100

≤100/120

Work Cycle Time (s)

60

60

60

60

Mixing Blades

Speed (r/min)

24.5

24.5

24.5

21

Quantity

2×7

2×7

2×8

2×10

Mixing Motor (kw)

2x22

2x30

2×37

2×55

Winch Motor (kw)

15







Pump Motor (kw)

3







Dimensions (L x W x H)

4720×2200×3000

3000×2400×2074

3500×2400×2125

4050× 2680 ×2125

Total weight(kg)

11130

6500

7500

9200
