High Productivity Concrete-Mixing Batching Plant for Sale

Concrete-Mixing Batching Plant

HZS Series

Detailed Information of HZS180 Concrete-Mixing Batching Plant

• Maximum Productivity: 180 m³/h;
• Total Power: 260 kw
• Discharge Height: 4 m, can be customized;
• Main Machine: JS3000 twin-shaft forced concrete mixer
• Batching Machine: PLD4800 with the weighing hopper capacity reaching 4800 L; with 4 hoppers.

Overview of Concrete-Mixing Batching Plant

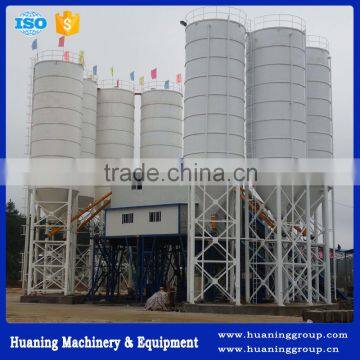

• HZS180 concrete-mixing batching plant includes two rows of cement silos, screw conveyors, belt conveyor, batching machine PLD4800, twin-shaft forced concrete mixing machine JS3000, computer controlling and measuring system, etc.
• During running time, all work in the whole concrete mixing plant is controlled by the computer control room. It can supply the concrete simultaneously for two concrete transportation tanks. Meanwhile, new control technologies are adopted, such as electronic weighing, compact control, and digital display, etc.
• Electronic weighing is equipped with shock-absorber and automatic compensation function; and the measuring accuracy is thereby much improved.
• Aggregate is fed by belt conveyor. Numerous advantages of HZS180 contributes to its wide applications in commercial concrete mixing companies and many construction organizations.

Concrete Mixing System for Concrete-Mixing Batching Plant

• JS3000 concrete mix is horizontal twin-shaft forced mixing machine with two advantages of independent performance or forming simple concrete mixing plants with PLD batching machines. It acts as the main machine for mixing plants. The twin-shaft mixer mixes evenly and efficiently. Its mixing quality is much higher.

Batching System for Concrete-Mixing Batching Plant

• PLD4800 batching machine is automatic material distribution part used before the mixing process. It can fulfill automatically 3-6 kinds of material batching process like sand, stone and cement according to concrete ratio designed by user. This series of products adopt electronic weighing and digital display. It is characterized by accurate weighing, high batching accuracy, fast speed, strong controlling ability, simple operation.



Company Information

• HenanHuaning Machinery & Equipment Co., Ltd is one of the large-scale enterprises of construction machinery. It is specialized in manufacturing and selling concrete equipment for more than 20 years. Up to now, we already have 14 experienced engineers and 180 staffs.
• All our products have passed ISO9001 International Quality System Certification and high product quality wins the trust from most customers.
• Our main products are: Concrete Mixing Plant (HZS25, HZS35, HZS50, HZS60, HZS75, HZS90, HZS120, HZS180); Concrete Mixer (JS Series, JDC Series, JZC Series, JZM Series, JW Pan Concrete Mixer, Diesel Engine Concrete Mixer); Concrete Batching Machine; Screw Conveyor; Cement Silo; JZ350 Mortar Mixer; etc.



Display of Our Main Products:
