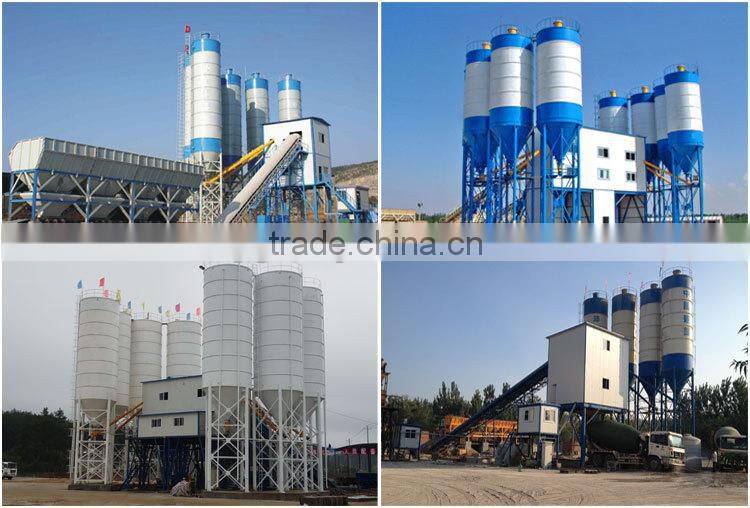

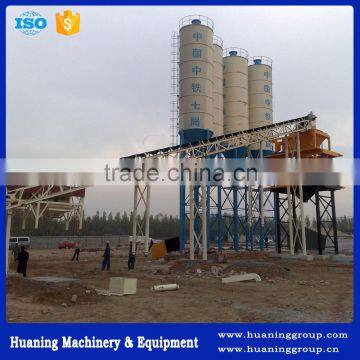

High Capacity Customized Concrete Batching Plant for Construction

Quick Information of HZS90 Customized Concrete Batching Plant for construction

• Maximum Productivity: 90 m³/h;
• Discharge Height: 3.8 m, can be customized;
• Main Machine: JS1500 twin-shaft forced concrete mixer
• Batching Machine: PLD2400 with the weighing hopper capacity reaching 2400 L.

Brief Introduction of  Customized Concrete Batching Plant

• HZS90 Customized Concrete Batching Plant includes the cement silo, screw conveyor, belt conveyor, PLD batching machine, twin-shaft forced concrete mixing machine, computer controlling and measuring system, etc.
• And also there are manual control system, automatic head-drop compensation and aggregate moisture compensation.
• The Concrete Mixing System can be used for industry, construction, road, railway, bridge, water conservation, ports, and so on. Working as the concrete mixing equipment, it can meet the requirements for different forms and specifications.

The Structure of Customized Concrete Batching Plant

Characteristics of  Customized Concrete Batching Plant

• The concrete mixer JS1500 (The main machine for the mixing plant) has the strong mixing ability with uniform mixing and high production output. The admixtures are widely mixed by the shafts, and reach the best proportional ratio of uniformity.
• The mixing shafts adapt anti-binding technology to prevent the cement from binding on the shafts.
• Mixing paddles, arms and blades are made of special high chromium and high manganese alloy materials. The wear resistance of the mixing paddles saves time and cost to replace, and at the same time, improves the machines durability and reliability;
• The greasing system, which is controlled by central control system, lubricates the greasing points at the fixed position, fixed time and fixed quantity;
• The opening of discharge gate can be adjusted by hydraulic system as per specific requirements.

Company Information

• Henan Huaning Machinery & Equipment Co., Ltd is one of the large-scale enterprises of construction machinery. It is specialized in manufacturing and selling concrete equipment for more than 20 years. Up to now, we already have 14 experienced engineers and 180 staffs.
• All our products have passed ISO9001 International Quality System Certification and high product quality wins the trust from most customers.
• Our main products are: Concrete Mixing Plant (HZS25, HZS35, HZS50, HZS60, HZS75, HZS90, HZS120, HZS180); Concrete Mixer (JS Series, JDC Series, JZC Series, JZM Series, JW Pan Concrete Mixer, Diesel Engine Concrete Mixer); Concrete Batching Machine; Screw Conveyor; Cement Silo; JZ350 Mortar Mixer; etc.



Display of Our Main Products:
