Specifications of Hzs35 Ready Mix Concrete Plant, Ready Mix Concrete Mixing Plant for sale
Ready Mix Concrete Plant for sale
- Max. Productivity: 35m3/h
- Standard discharge height: 1.5-3.8m
- Work cycle time: 72s
- Screw conveyor: LSY219*8m
Overview of Hzs35 Ready Mix Concrete Plant, Ready Mix Concrete Mixing Plant for sale

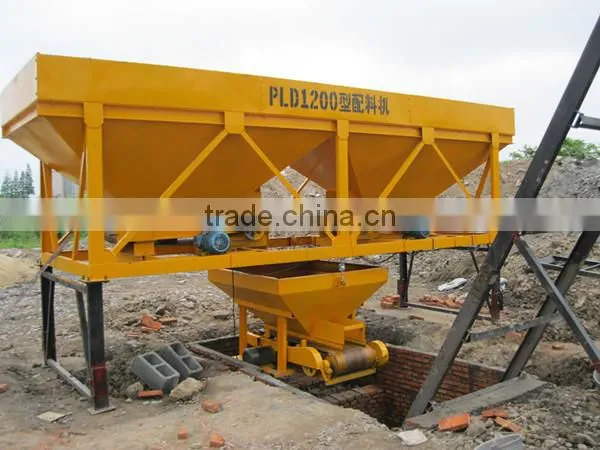

- Ready Mix Concrete Plant is mainly composed of PLD1200 batching machine, JS750 forced concrete mixer, cement silos, automatic computer control system, electronic weighing and others.
- It can mix fluidity concrete, plastic concrete, hard concrete and other proportioning concrete.
- The Fixed Concrete Batching Plant can be used for industry, construction, road, railway, bridge, water conservation, ports, and so on.
Characteristics of Hzs35 Ready Mix Concrete Plant, Ready Mix Concrete Mixing Plant for sale

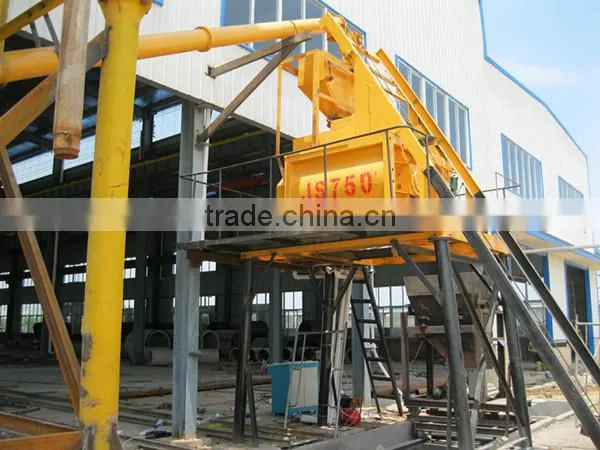

- Adopt JS1000 twin-shaft forced concrete mixer (the main machine of concrete batching plant) with high quality and productivity.
- Aggregate adopts Batching machine, accurate measurement and high production efficiency.
- Water supply system adopts the principle of pump pressure, the water flow speed spray evenly.
- Water, concrete, water admixtures adopt independent electronic weighing, improving measurement accuracy.
- Belt conveyor with environmental external packing, reliable and smooth transmission, reduction of powder and noise pollution.
- Automatic computer control system can vividly display the whole machine working condition, so that users control the machine and rule out troubles in time.
Main Technical Parameters of Hzs35 Ready Mix Concrete Plant, Ready Mix Concrete Mixing Plant for sale
Model |
HZS25 |
HZS35 |
HZS50 |
|
The Whole Station |
Max. Productivity |
25 m3/h |
35 m3/h |
50 m3/h |
Discharge Height |
1.5-3.8 m |
1.5-3.8 m |
1.5-3.8 m |
|
Working Cycle |
72 s |
72 s |
72 s |
|
Dimension (LxWxH) |
11693x13060x17245 mm |
12922x13000x17245 mm |
15922x13500x17750 mm |
|
Power |
50.25 kw |
75 kw |
90 kw |
|
Concrete Mixer |
JS500 |
JS750 |
JS1000 |
|
Batching Machine |
PLD800 |
PLD1200 |
PLD1600 |
|
Pneumatic system |
Air Compressor Model |
1.0-7 |
1.0-7 |
1.5-7 |
Nominal Displacement |
1.67 m3/min |
1.67 m3/min |
1.67 m3/min |
|
Rated Discharge Pressure |
0.8 mpa |
0.8 mpa |
0.8 mpa |
|
Motor power |
5.5 kw |
5.5 kw |
7.5 kw |
|
|
Measurement Accuracy of Weighing system |
Aggregate |
±2% |
±2% |
±2% |
Cement |
±1% |
±1% |
±1% |
|
Water |
±1% |
±1% |
±1% |
|
Admixture |
±1% |
±1% |
±1% |
|
Parameters
- Henan Huaning Machinery & Equipment Co., Ltd is one of the large-scale enterprises of construction machinery. It is specialized in manufacturing and selling concrete equipment for more than 20 years. Up to now, we already have 14 experienced engineers and 180 staffs.
- All our products have passed ISO9001 International Quality System Certification and high product quality wins the trust from most customers.
- Our main products are: Concrete Mixing Plant (HZS25, HZS35, HZS50, HZS60, HZS75, HZS90, HZS120, HZS180); Concrete Mixer (JS Series, JDC Series, JZC Series, JZM Series, JW Pan Concrete Mixer, Diesel Engine Concrete Mixer); Concrete Batching Machine; Screw Conveyor; Cement Silo; JZ350 Mortar Mixer; etc.

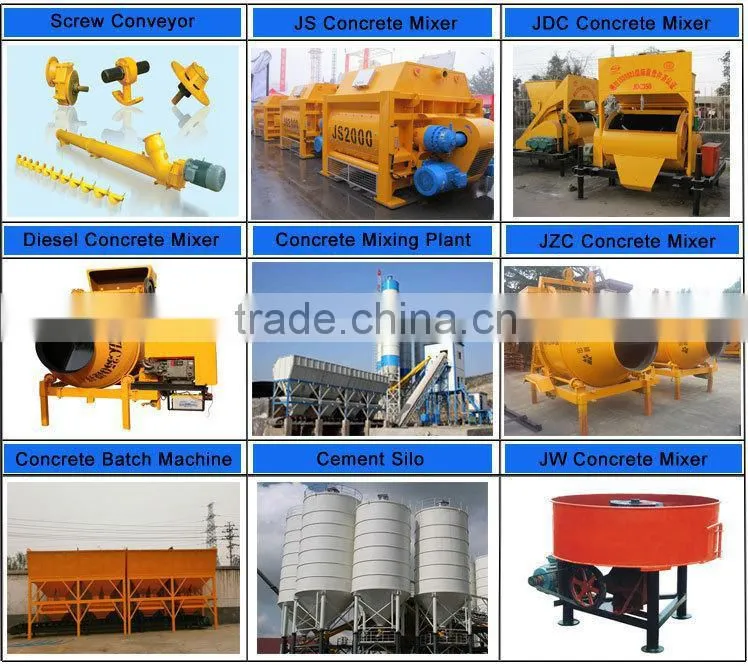

Display of Our Main Products
Q: We want to buy a set of concrete mixing plant,but we don’t know what model to choose.
A: It doesn’t matter. We just need know the discharging capacity one hour you need, then choose the suitable model for you.
Q: How long is the delivery?
A: 7-20 days after receiving the down payment.
Q: How long is the total cycle time from feeding to discharging the concrete?
A: The total cycle time is 72 seconds.
Q: Do you provide after sale service?
A: Of course. Our engineers are available to serve machinery overseas.
Q: What is the warranty of your product?
A: One year overseas service is ensured. International practice will be adopted in staff cost.
