High Weighing Accuracy HZS 90 Concrete Mixing Plant for Sale

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Power Type:

Electric

Place of Origin:

Henan, China

Henan Huaning Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Tianjin Qingdao etc.

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Power Type Electric

Place of Origin Henan, China

Model Number HZS90

Power(W) 145 kw

Dimension(L*W*H) 58555x12376x18704 mm

Weight 60 t

Certification ISO

Warranty 12 Months

After-sales Service Provided Engineers available to service machinery overseas

HZS 90 Concrete Mixing Plant

HZS Series

Product Description

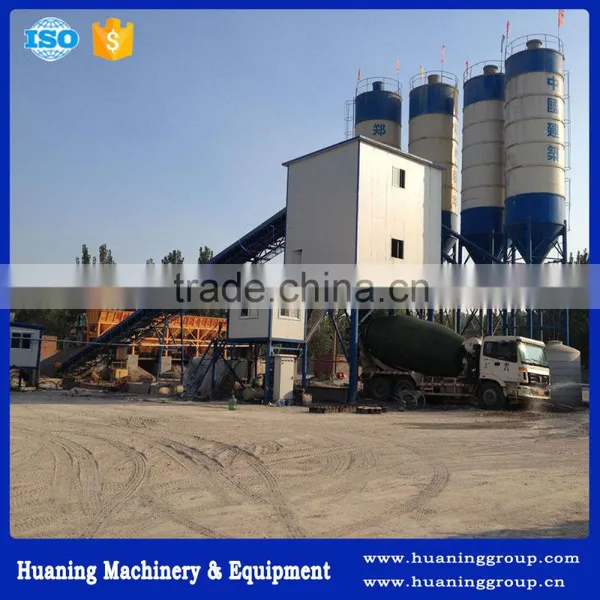

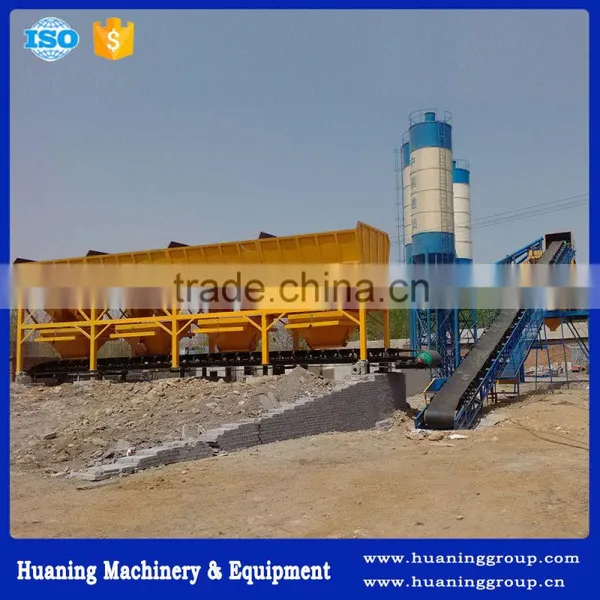

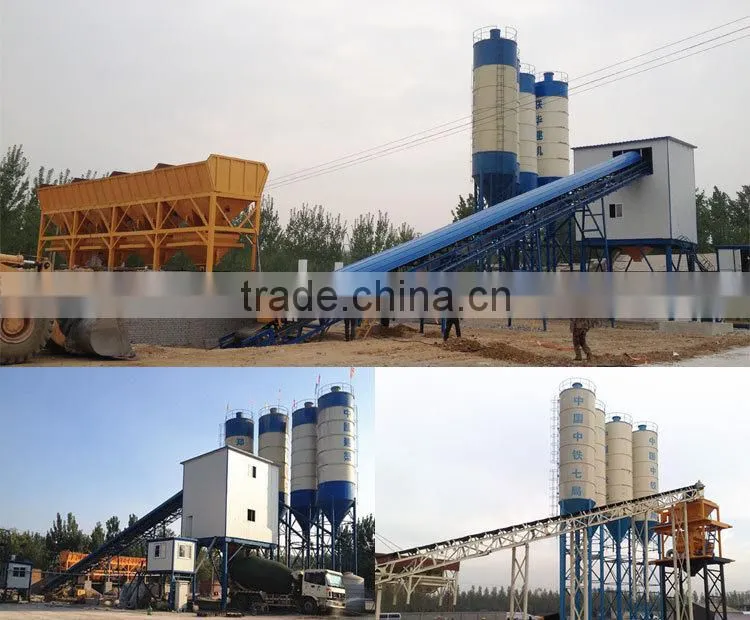

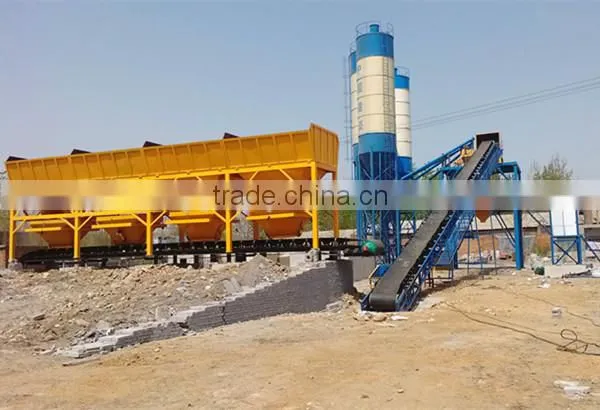

Pictures of HZS 90 Concrete Mixing Plant

Quick Information of HZS 90 Concrete Mixing Plant

Brief Introduction of HZS 90 Concrete Mixing Plant

HZS 90 Concrete Mixing Plant includes the cement silo, screw conveyor, belt conveyor, PLD batching machine, twin-shaft forced concrete mixing machine, computer controlling and measuring system, etc.
And also there are manual control system, automatic head-drop compensation and aggregate moisture compensation.
The HZS 90 Concrete Mixing Plant can be used for industry, construction, road, railway, bridge, water conservation, ports, and so on. Working as the concrete mixing equipment, it can meet the requirements for different forms and specifications.

Structure of HZS 90 Concrete Mixing Plant

Characteristics of HZS 90 Concrete Mixing Plant

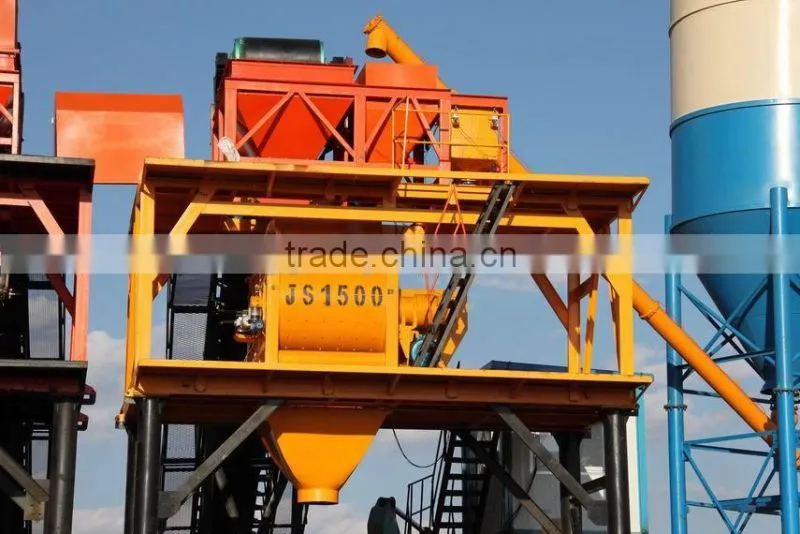

The concrete mixer JS1500 (The main machine for the mixing plant) has the strong mixing ability with uniform mixing and high production output. The admixtures are widely mixed by the shafts, and reach the best proportional ratio of uniformity.
The mixing shafts adapt anti-binding technology to prevent the cement from binding on the shafts.
Mixing paddles, arms and blades are made of special high chromium and high manganese alloy materials. The wear resistance of the mixing paddles saves time and cost to replace, and at the same time, improves the machines durability and reliability;
The greasing system, which is controlled by central control system, lubricates the greasing points at the fixed position, fixed time and fixed quantity;
The opening of discharge gate can be adjusted by hydraulic system as per specific requirements.

Parameters

Parameters of HZS 90 Concrete Mixing Plant

Model			HZS75	HZS90	HZS120
The Whole Station	Max. Productivity		75 m³/h	90 m³/h	120 m³/h
	Discharge Height		3.8 m	3.8 m	4 m
	Working Cycle		60 s	60 s	60 s
	Dimension (LxWxH)		24350x10595x18704 mm	58555x12376x18704 mm	60120x13700x18704 mm
	Power		120 kw	145 kw	210 kw
Concrete Mixer			JS1500	JS1500	JS2000
Batching Machine			PLD2400	PLD2400	PLD3200
Pneumatic System	Air Compressor Model		1.8-7	1.8-7	1.8-7
	Nominal Displacement		1.67 m³/min	1.67 m³/min	1.67 m³/min
	Rated Discharge Pressure		0.8 mpa	0.8 mpa	0.8 mpa
	Motor power		11 kw	11 kw	15 kw
Measurement Accuracy of Weighing System		Aggregate	±2%	±2%	±2%
		Cement	±1%	±1%	±1%
		Water	±1%	±1%	±1%
		Admixture	±1%	±1%	±1%
