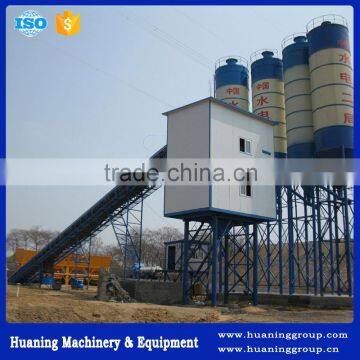

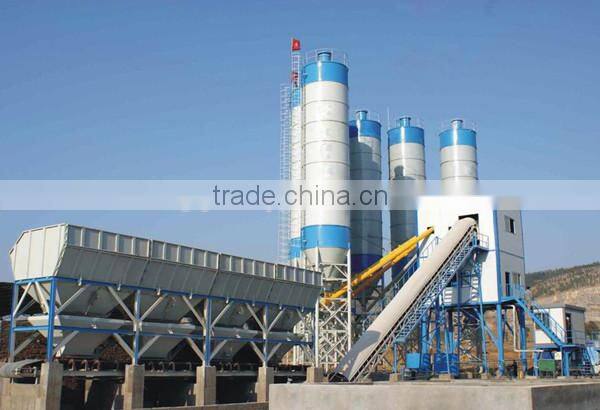

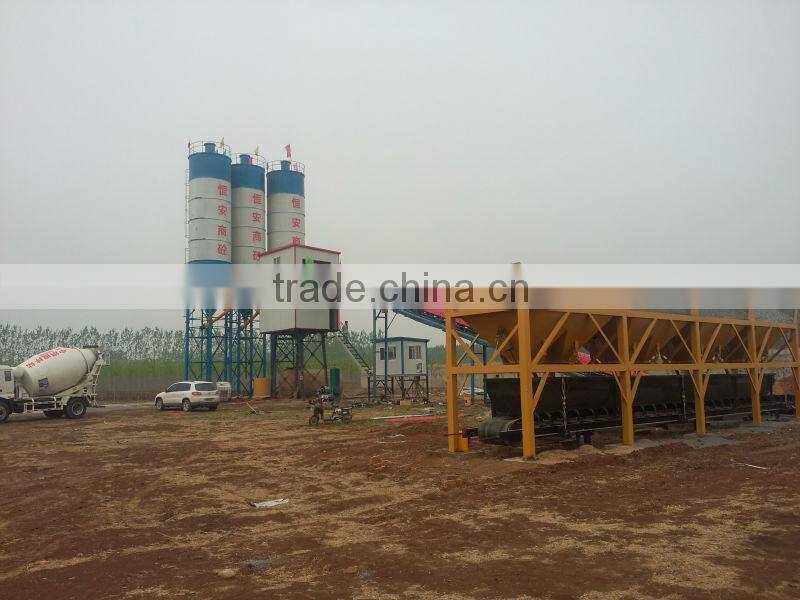

Good Performance Large Scale HZS120 Concrete Mixing Plant for Sale

Large Scale Concrete Mixing Plant

HZS Series

Detailed Information of Large Scale HZS120 Concrete Mixing Plant

• Maximum Productivity: 120 m³/h;
• Total Power: 210 kw;
• Discharge Height: 4 m;
• Main Machine: JS2000 twin-shaft forced concrete mixer
• Batching Machine: PLD3200 with the weighing hopper capacity reaching 3200 L.

Product Description of Large Scale HZS120 Concrete Mixing Plant

• HZS120 Large Scale Concrete Mixing Plant consists of twin-shaft mixer, batching machine, cement silo, screw conveyor, belt conveyor, computer controlling system.
• The main machine JS2000 is forced and efficient concrete mixer and it can mix dry rigid concrete, plastic concrete, fluid concrete, lightweight aggregate concrete and various mortar.
• It presents many advantages: high productivity, short mixing time, nice appearance.
• It is widely applied in large and middle building sites, highways, bridge project, and prefabricated concrete plant. It is ideal for producing commercial concrete.

Concrete Mixing System of Large Scale HZS120 Concrete Mixing Plant

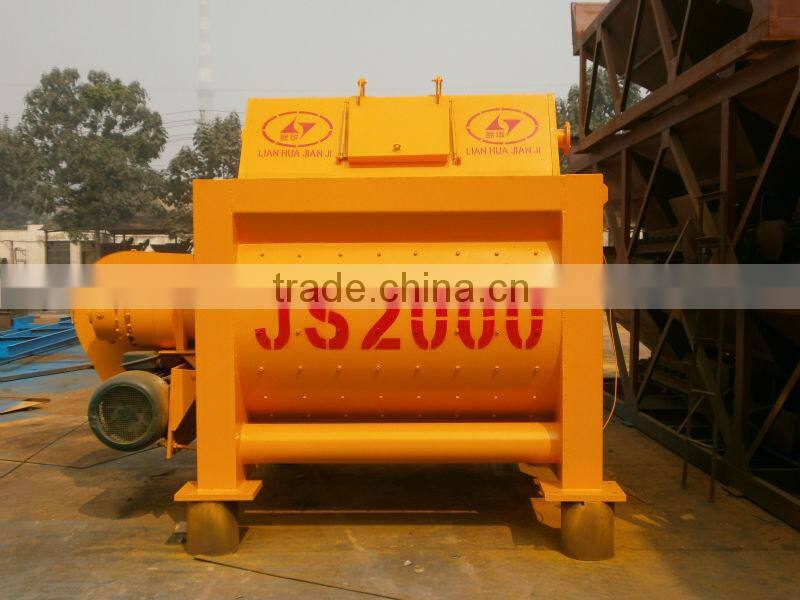

• JS2000 concrete mix is horizontal twin-shaft forced mixing machine with two advantages of independent performance or forming simple concrete mixing plants with PLD batching machines. It acts as the main machine for mixing plants. The twin-shaft mixer mixes evenly and efficiently. Its mixing quality is much higher.

Batching System for Large Scale HZS120 Concrete Mixing Plant

• PLD3200 batching machine is automatic material distribution part used before the mixing process. It can fulfill automatically 3-6 kinds of material batching process like sand, stone and cement according to concrete ratio designed by user. This series of products adopt electronic weighing and digital display. It is characterized by accurate weighing, high batching accuracy, fast speed, strong controlling ability, simple operation.

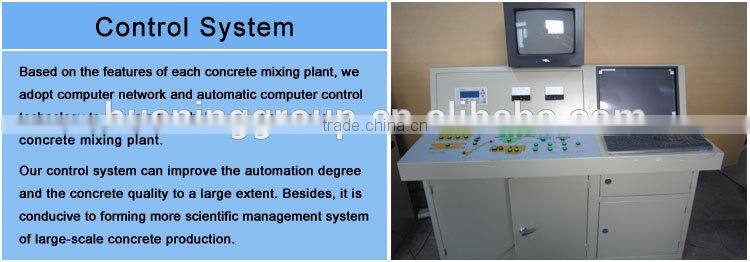

Control System for Large Scale HZS120 Concrete Mixing Plant

Company Information

• Henan Huaning Machinery & Equipment Co., Ltd is one of the large-scale enterprises of construction machinery. It is specialized in manufacturing and selling concrete equipment for more than 20 years. Up to now, we already have 14 experienced engineers and 180 staffs.
• All our products have passed ISO9001 International Quality System Certification and high product quality wins the trust from most customers.
• Our main products are: Concrete Mixing Plant (HZS25, HZS35, HZS50, HZS60, HZS75, HZS90, HZS120, HZS180); Concrete Mixer (JS Series, JDC Series, JZC Series, JZM Series, JW Pan Concrete Mixer, Diesel Engine Concrete Mixer); Concrete Batching Machine; Screw Conveyor; Cement Silo; JZ350 Mortar Mixer; etc.



Display of Our Main Products:
