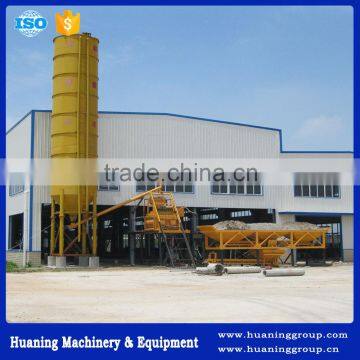

High Accuracy Used Concrete Mixing Plant for Sale

Henan Huaning Machinery Equipment Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Power Type:

Electric

Place of Origin:

Henan, China

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Tianjin Qingdao etc.

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Power Type Electric

Place of Origin Henan, China

Model Number HZS35

Power(W) 75 kw

Dimension(L*W*H) 12922x13000x17245 mm

Weight 28 t

Certification ISO

Warranty 12 Months

After-sales Service Provided Engineers available to service machinery overseas

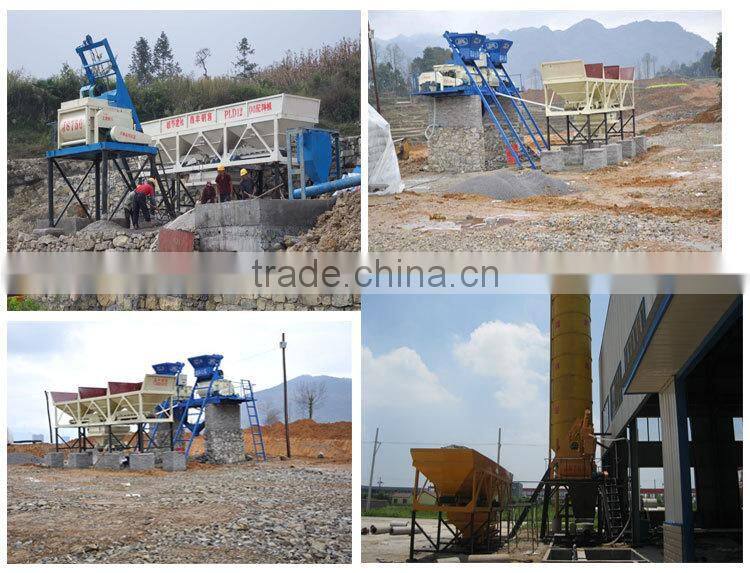

High Accuracy Used Concrete Mixing Plant for sale

Overview of High Accuracy Used Concrete Mixing Plant for sale

HZS35 Used Concrete Mixing Plant for sale is composed of feeding system, measuring (weighing) system, mixing system, electrical system and auxiliary equipments (such as air compressor, water pump etc.), featured by high-precision computer control. And also there are manual control system, automatic head-drop compensation and aggregate moisture compensation.
The Concrete Aggregate Mixing Plant can be used for industry, construction, road, railway, bridge, water conservation, ports, and so on. Working as the concrete mixing equipment, it can meet the requirements for different forms and specifications.

Mixing System for Used Concrete Mixing Plant for sale

Batching System for Used Concrete Mixing Plant for sale

Characteristics of Used Concrete Mixing Plant for sale

The concrete mixer JS750 (The main machine for the mixing plant) has the strong mixing ability with uniform mixing and high production output. The admixtures are widely mixed by the shafts, and reach the best proportional ratio of uniformity.
The mixing shafts adapt anti-binding technology to prevent the cement from binding on the shafts.
Mixing paddles, arms and blades are made of special high chromium and high manganese alloy materials. The wear resistance of the mixing paddles saves time and cost to replace, and at the same time, improves the machines durability and reliability;
The greasing system, which is controlled by central control system, lubricates the greasing points at the fixed position, fixed time and fixed quantity;
The opening of discharge gate can be adjusted by hydraulic system as per specific requirements.

Parameters of High Accuracy Used Concrete Mixing Plant for sale

Model		HZS25	HZS35	HZS50
The Whole Station	Max. Productivity	25 m³/h	35 m³/h	50 m³/h
	Discharge Height	1.5-3.8 m	1.5-3.8 m	1.5-3.8 m
	Working Cycle	72 s	72 s	72 s
	Dimension (LxWxH)	11693x13060x17245 mm	12922x13000x17245 mm	15922x13500x17750 mm
	Power	50.25 kw	75 kw	90 kw
Concrete Mixer		JS500	JS750	JS1000
Batching Machine		PLD800	PLD1200	PLD1600
Pneumatic system	Air Compressor Model	1.0-7	1.0-7	1.5-7
	Nominal Displacement	1.67 m³/min	1.67 m³/min	1.67 m³/min
	Rated Discharge Pressure	0.8 mpa	0.8 mpa	0.8 mpa
	Motor power	5.5 kw	5.5 kw	7.5 kw
Measurement Accuracy of Weighing system	Aggregate	±2%	±2%	±2%
	Cement	±1%	±1%	±1%
	Water	±1%	±1%	±1%
	Admixture	±1%	±1%	±1%
