Made In China HZS35 Concrete Mixing Plant ISO9001 Approved

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Power Type	Electric
Place of Origin	Henan, China	Brand Name	Huaning Concrete Batching Plant
Model Number	HZS35	Power(W)	75kw
Dimension(LWH)	12922x13000x17245mm	Weight	28t
Certification	ISO	Warranty	12 months
After-sales Service Provided	Engineers available to service machinery overseas

Specifications of Made In China HZS35 Concrete Mixing Plant ISO9001 Approved

Overview of Made In China HZS35 Concrete Mixing Plant ISO9001 Approved

HZS35 Concrete Mixing Plant is mainly composed of PLD1200 batching machine, JS750 forced concrete mixer, cement silos, automatic computer control system, electronic weighing and others.
It can mix fluidity concrete, plastic concrete, hard concrete and other proportioning concrete.
The Fixed Concrete Batching Plant can be used for industry, construction, road, railway, bridge, water conservation, ports, and so on.

Characteristics of Made In China HZS35 Concrete Mixing Plant ISO9001 Approved

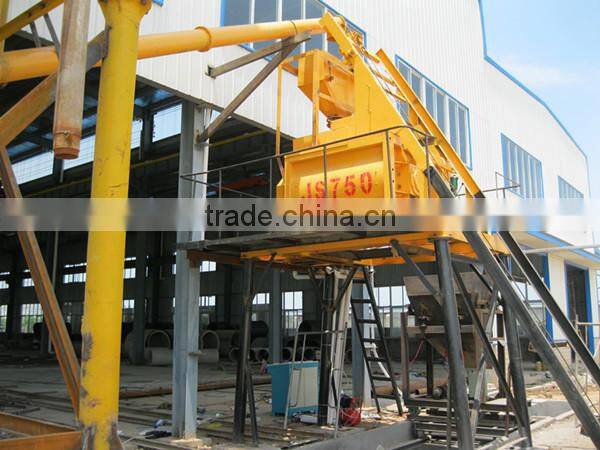

Adopt JS1000 twin-shaft forced concrete mixer (the main machine of concrete batching plant) with high quality and productivity.

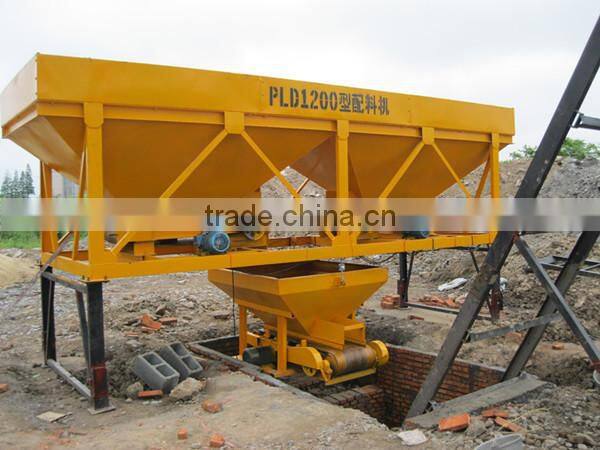

Aggregate adopts Batching machine, accurate measurement and high production efficiency.
Water supply system adopts the principle of pump pressure, the water flow speed spray evenly.
Water, concrete, water admixtures adopt independent electronic weighing, improving measurement accuracy.
Automatic computer control system can vividly display the whole machine working condition, so that users control the machine and rule out troubles in time.

Main Technical Parameters of Made In China HZS35 Concrete Mixing Plant ISO9001 Approved

Model		HZS25	HZS35	HZS50
The Whole Station	Max. Productivity	25 m3/h	35 m3/h	50 m3/h
	Discharge Height	1.5-3.8 m	1.5-3.8 m	1.5-3.8 m
	Working Cycle	72 s	72 s	72 s
	Dimension (LxWxH)	11693x13060x17245 mm	12922x13000x17245 mm	15922x13500x17750 mm
	Power	50.25 kw	75 kw	90 kw
Concrete Mixer		JS500	JS750	JS1000
Batching Machine		PLD800	PLD1200	PLD1600
Pneumatic system	Air Compressor Model	1.0-7	1.0-7	1.5-7
	Nominal Displacement	1.67 m3/min	1.67 m3/min	1.67 m3/min
	Rated Discharge Pressure	0.8 mpa	0.8 mpa	0.8 mpa
	Motor power	5.5 kw	5.5 kw	7.5 kw
Measurement Accuracy of Weighing system	Aggregate	±2%	±2%	±2%
	Cement	±1%	±1%	±1%
	Water	±1%	±1%	±1%
	Admixture	±1%	±1%	±1%

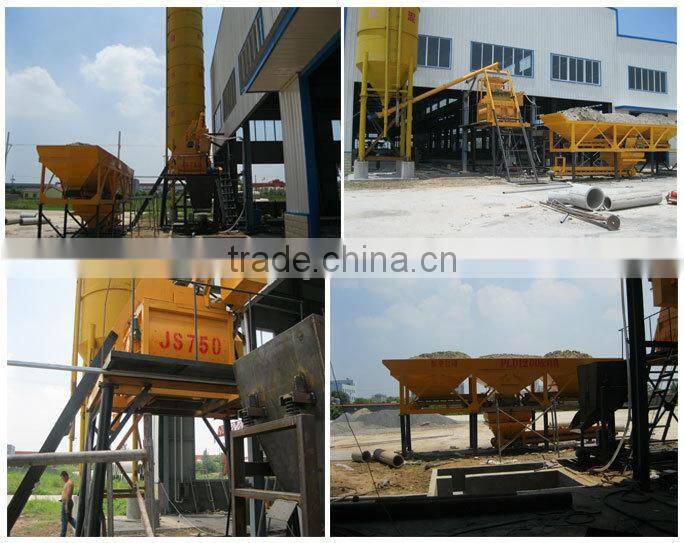

Details Show of Made In China HZS35 Concrete Mixing Plant ISO9001 Approved
