Simple Operation Compact Concrete Mixing Plant for Sale

Henan Huaning Machinery Equipment Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Power Type:

Electric

Place of Origin:

Henan, China

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Tianjin Qingdao etc.

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Power Type Electric

Place of Origin Henan, China

Model Number HZS50

Power(W) 90 kw

Dimension(L*W*H) 15922x13500x17750 mm

Weight 40 t

Certification ISO

Warranty 12 Months

After-sales Service Provided Engineers available to service machinery overseas

Compact Concrete Mixing Plant

HZS Series

Product Description

Pictures of Compact Concrete Mixing Plant

Quick Information of HZS50 Compact Concrete Mixing Plant

Overview of Compact Concrete Mixing Plant

HZS50 Compact Concrete Mixing Plant is composed of feeding system, measuring (weighing) system, mixing system, electrical system and auxiliary equipments (such as air compressor, water pump etc.), featured by high-precision computer control. And also there are manual control system, automatic head-drop compensation and aggregate moisture compensation.
The Compact Concrete Mixing Plant can be used for industry, construction, road, railway, bridge, water conservation, ports, and so on. Working as the concrete mixing equipment, it can meet the requirements for different forms and specifications.

The Structure of Compact Concrete Mixing Plant

Features of Compact Concrete Mixing Plant

Newly-designed: one batching machine supplies materials for two mixers simultaneously
Low investment
Land-saving
Equipments involved are fewer
High-efficiency concrete with high quality is obtained on the premise of accurate measurement of the batching machine.
The cycle operation of batching machine and mixing machine is ideal for bridge construction, large and middle concrete plants.

Parameters

Parameters of Compact Concrete Mixing Plant

Model			HZS35	HZS50	HZS60
The Whole Station	Max. Productivity		35 m³/h	50 m³/h	60 m³/h
	Discharge Height		1.5-3.8 m	1.5-3.8 m	3.8 m
	Working Cycle		72 s	72 s	60 s
	Dimension (LxWxH)		12922x13000x17245 mm	15922x13500x17750 mm	28445x10595x18707 mm
	Power		75 kw	90 kw	105 kw
Concrete Mixer			JS750	JS1000	JS1000

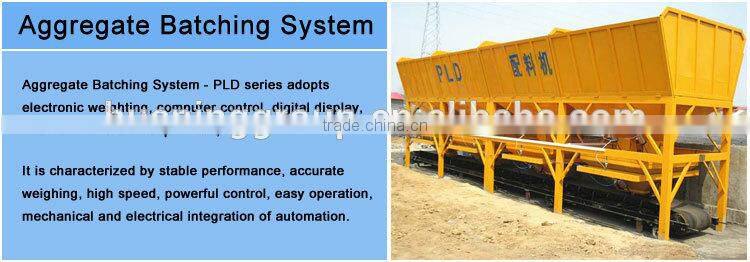

Batching Machine			PLD1200	PLD1600	PLD1600
Pneumatic system	Air Compressor Model		1.0-7	1.5-7	1.5-7
	Nominal Displacement		1.67 m³/min	1.67 m³/min	1.67 m³/min
	Rated Discharge Pressure		0.8 mpa	0.8 mpa	0.8 mpa
	Motor power		5.5 kw	7.5 kw	7.5 kw
Measurement Accuracy of Weighing system		Aggregate	±2%	±2%	±2%
		Cement	±1%	±1%	±1%
		Water	±1%	±1%	±1%
		Admixture	±1%	±1%	±1%
