Industrial Project Concrete Mixing Plant with Good Price
- 200 Set / Sets per Month
- Shanghai Tianjin Qingdao etc.
- T/T Credit Card
You May Like
-
HZS25 Concrete Batching Plant Manufacturer
-
HZS35 Feed Hopper Concrete Batching Plant Machine
-
Automatic Used China Machinery Concrete Batching Plant for sale
-
Technical Designed Automatic Concrete Batching Plant China Supplier
-
Simple Operation Automatic Concrete Mixing Plant for Sale
-
High Production HZS120 Belt Concrete Batching Plant for Sale
Product Details
Condition | New | Power Type | Electric | |
Place of Origin | Henan, China | Model Number | HZS60 | |
Power(W) | 105 kw | Dimension(L*W*H) | 28445x10595x18707 mm | |
Weight | 50 t | Certification | ISO | |
Warranty | 12 Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Industrial Project Concrete Mixing Plant with Good Price
Brief Introduction of Industrial Project Concrete Mixing Plant with Good Price
- Industrial Project Concrete Mixing Plant is consisted of mixing system, material weighing system, feeding system, electrical system and other auxiliary facilities (such as air compressor, water pump, control system etc.).
- HZS series of concrete mixing plant is developed by our company on the basis of adopting the world's sophisticated technologies, this concrete mixing plant have been widely used in the domestic and overboard, as well as waterconservancy ,electric power, railroad, road, tunnel , the arch of bridge, harbor-wharf and the national defense-project etc.
Main Parts of Industrial Project Concrete Mixing Plant with Good Price
- Theoretical productivity: 60m3/h
- Mixing Machine: JS1000
- Aggregate Batcher Machine: PLD1600 with 4 storage bins;
- Cement Silo: 100T boltd type (it depends on the customer's choice);

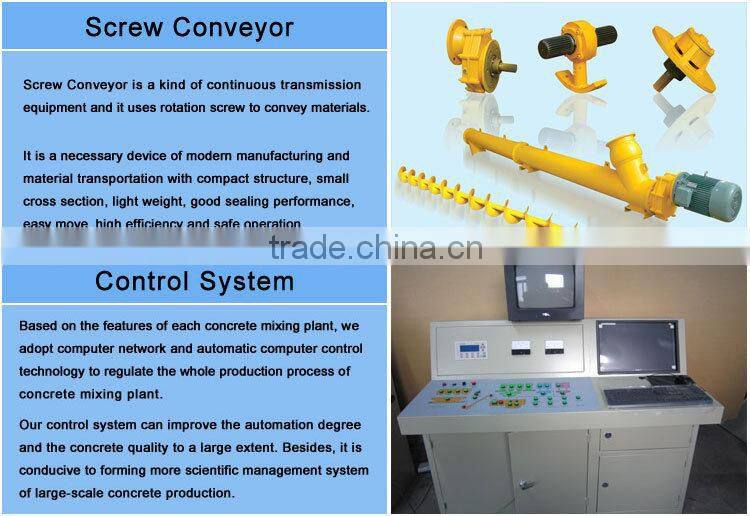

- Screw Conveyor: LSY219
Characteristics of Industrial Project Concrete Mixing Plant with Good Price
- Reliable working performance
- High efficient compulsory concrete mixer
- Accurate batching system
- Full Automatic Control System
- Excellent environmental protection, dust collection system and anti-noise design
The Structure of Industrial Project Concrete Mixing Plant with Good Price
Parameters of Industrial Project Concrete Mixing Plant with Good Price
Model | HZS50 | HZS60 | HZS75 | ||
The Whole Station | Max. Productivity | 50 m3/h | 60 m3/h | 75 m3/h | |
Discharge Height | 1.5-3.8 m | 3.8 m | 3.8 m | ||
Working Cycle | 72 s | 60 s | 60 s | ||
Dimension (LxWxH) | 15922x13500x17750 mm | 28445x10595x18707 mm | 24350x10595x18704 mm | ||
Power | 90 kw | 105 kw | 120 kw | ||
Concrete Mixer | JS1000 | JS1000 | JS1500 | ||
Batching Machine | PLD1600 | PLD1600 | PLD2400 | ||
Pneumatic system | Air Compressor Model | 1.5-7 | 1.5-7 | 1.8-7 | |
Nominal Displacement | 1.67 m3/min | 1.67 m3/min | 1.67 m3/min | ||
Rated Discharge Pressure | 0.8 mpa | 0.8 mpa | 0.8 mpa | ||
Motor power | 7.5 kw | 7.5 kw | 11 kw | ||
Measurement Accuracy of Weighing system | Aggregate | ±2% | ±2% | ±2% | |
Cement | ±1% | ±1% | ±1% | ||
Water | ±1% | ±1% | ±1% | ||
Admixture | ±1% | ±1% | ±1% |
Trade Process > > >
Henan Huaning Machinery & Equipment Co., Ltd is one of the large-scale enterprises of construction machinery, which has strong technical force, the modernization of production equipment and scientific manufacturing processes.
Our company is specialized in manufacturing and selling concrete equipment for more than 20 years. Up to now, we already have 14 experienced engineers and 180 staffs.
All our products have passed ISO9001 International Quality System Certification and high product quality wins the trust from most customers.
